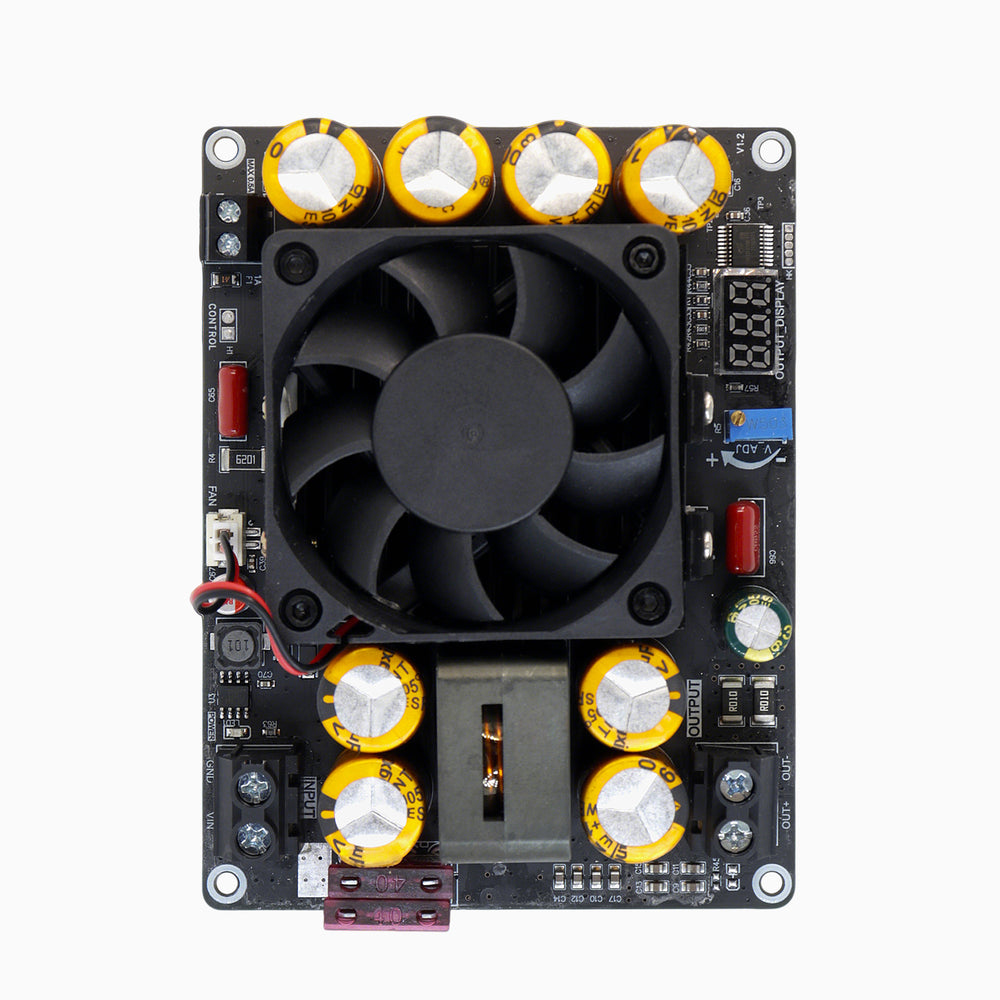

ZK-PW500 Boost Converter Module 11-27V DC Input VIN-50V Output 500W Voltage Regulator Power Supply Board
$25.99
In Stock
Description
Specifications:
Product Name: ZK-PW500 Boost Converter Module
Input Voltage: 11-27V DC
Output Voltage: VIN-50V
Output Power: 500W
Working Current:
67mA @ VIN=12V, VOUT=36V
80mA @ VIN=12V, VOUT=48V
42mA @ VIN=20V, VOUT=36V
50mA @ VIN=20V, VOUT=48V
Efficiency: 92%-95%
Fan Operation Temperature: Power on with 2-second self-test, then stops. Fan runs above 36 degrees C during operation, otherwise stops.
Size: 122 x 92 x 39mm
Net Weight: 345g
Gross Weight: 380g
Features:
1. Wide input voltage range of 11-27V DC and output voltage up to 50V for boost conversion use.
2. High 500W output power with 92%-95% efficiency for stable power conversion performance.
3. Built-in output voltage display and output voltage regulation for convenient adjustment and monitoring.
4. Fan starts with a 2-second self-test and runs above 36 degrees C during operation for temperature-controlled air cooling.
5. Equipped with special inductor, eight 1000uF capacitors, and low ESR filter capacitor to reduce noise and electromagnetic interference.
Package Included:
1 x ZK-PW500 Boost Converter Module
