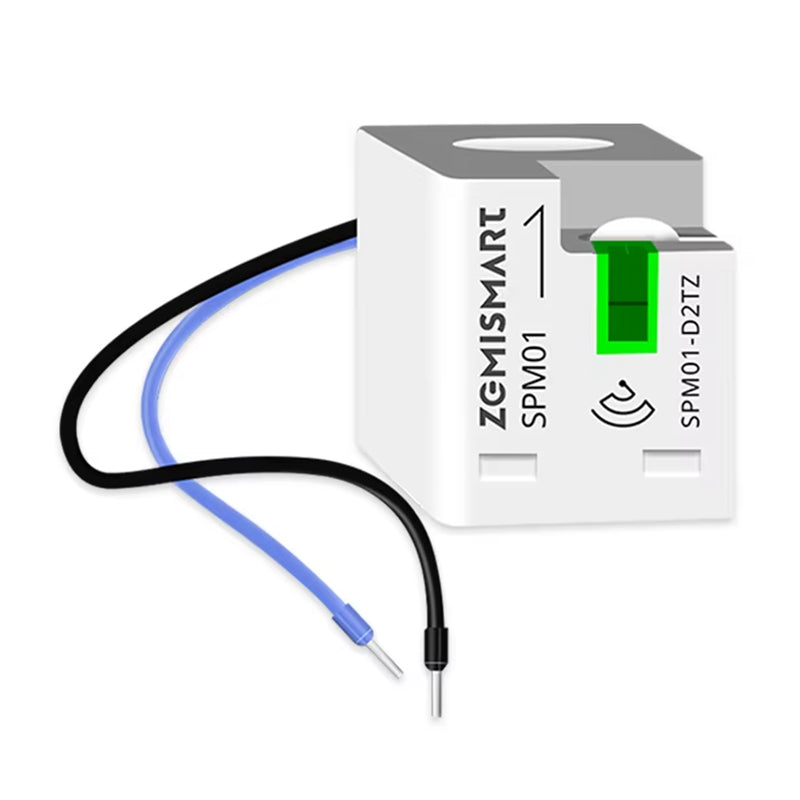

Zigbee3.0 Single Phase Smart Energy Meter Real-Time Power Monitor Sensor 63A Works with Zigbee2MQTT Zigbee3.0 Home Assistant Homey

Note Before Order：

- This product requires a Zigbee3.0 dongle to be integrated into Home Assistant, such as Dongle-E or Dongle-P. - Compatibility of Smartthings is still in the testing and has not yet been officially released, so it needs to wait. - It cannot work with Tuya app and Smart Life app.

Specification:

Model: SPM01-D2TZ-U01-ZM

Rated Voltage: 110-240V AC
Basic Current: 10 A
Starting Current: 50 mA
Max Current: 63 A
Over-voltage Category: III
Rated Insulating Voltage: 250V
Rated Impulse Withstand Voltage: 4kV
Protection Degree: IP20
Rated Operating Temperature: -25 to 60 °C

Features:
- Zigbee3.0 Protocol: this product uses a low-power wireless communication protocol based on the IEEE 802.15.4 standard, supports integration with the Home Assistant smart home system, and offers stronger interoperability, higher network stability, and better security. - Works with Homey APP: this product requires a Homey hub to work with Homey, supports viewing and measuring energy, voltage, current, power, apparent power, and power factor. (Note: The data reporting interval is 30 seconds.This setting is default and cannot be modified.) - Integrating with HA via Zigbee2MQTT: It not only supports real-time measurement of data such as voltage, current, power, and power factor, but also allows modification of the reporting interval for each data(default 30 seconds, minimum adjustable to 1 second). - Integrating with HA via Zigbe Home Assistant: supports viewing and measuring voltage, current, power and power factor to help users optimize energy usege.(Note: The data reporting interval is 5 seconds, energy data is 30 seconds.This setting is default and cannot be modified.). - Zero Energy: supports the energy reset function. The default state is OFF. Turning on this function will clear all energy data.(Note: Homey does not support this function!) - Bi-directional Measurement: the energy meter can accurately measure both the electricity consumption in the home and the amount of solar energy produced. High-precision of energy measurement within tolerance 1%.

Package Includes:
1 x Smart Energy Monitor
