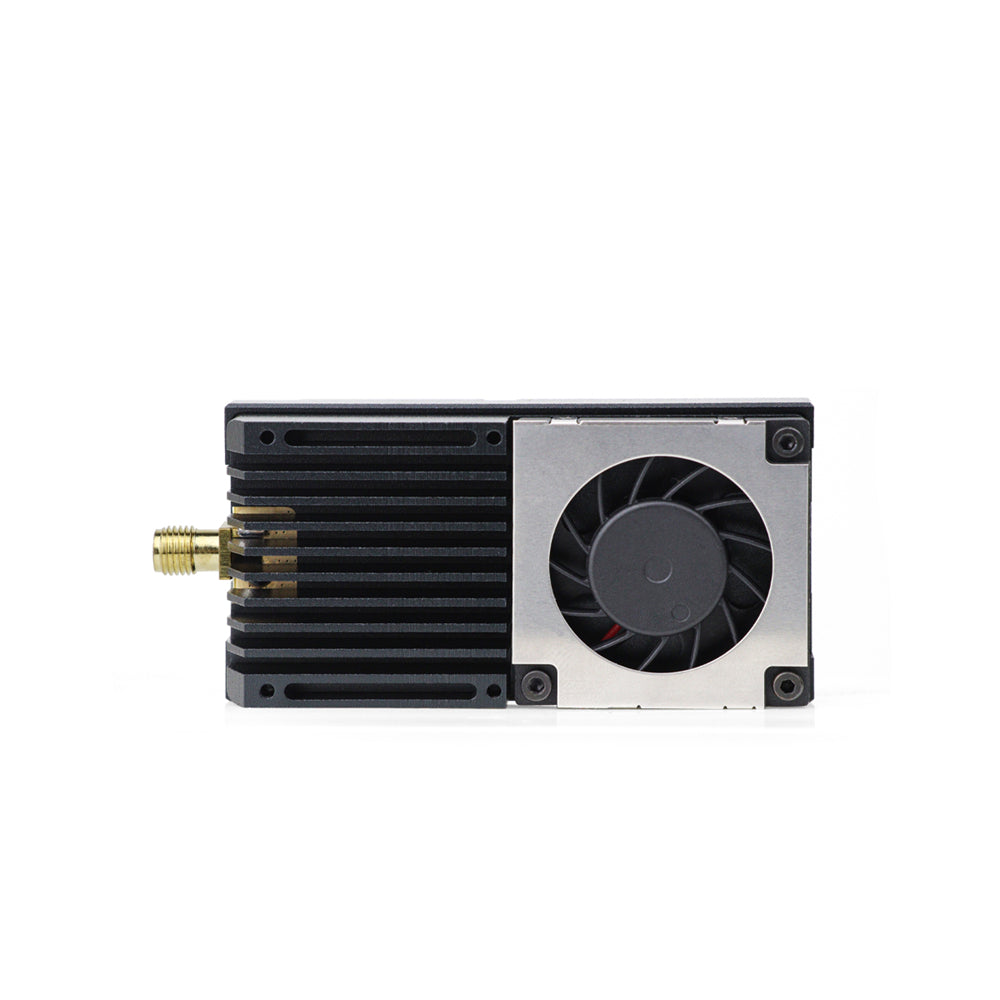

ZEUS 1.2GHz 4.5W VTX 8CH High Power 12KM PIT/ 25mW/ 800mW/ 4.5W Image Transmission FPV Transmitter Adjustable Power Aerial Photography Travel FPV VTX For Rc Drone
Description
- Type: PAL
- Camera Resolution: Without
- RC Drone Spare Parts: FPV Transmitter
- Frequency: 1.2/1.3Ghz
- Applicable User: Professional
- Application: Other
- Power: 600-1000mw
Specification:
| Input Voltage: | DC 7-36V |
| Output Power： | 25mW /800mW /4.5W |
| Frequency: | 1220MHz-1470GMHz |
| Channels: | 8 CH |
| Maximum Output Power: | 4.5W |
| Frequency： | 1220/1240/1258/1280/1320/1360/1400/1470(MHz) |
| Projected Range: | Up to 12KM (Unobstructed Line-of-Sight Open Terrain) |
| PIT (Test Standby Power) | PIT (Test Standby Power) |
| 25mW | 1.5–2.5 km |
| 800mW | 5–7 km |
| 4.5W Full Power | 10–12 km |
| S/N(Fo±3MHz)： | >70dBc |
| Antenna Port： | 50 Ohms |
| Input Format： | NTSC or PAL |
| WMaximum Size: | 37mm*30mm*8mm |
| Mounting Hole: | 20x20*M2 |
| Operating Temperature： | -10℃~+60℃ |
| Weight: | 61g |
Feature
* 4.5W high power, maintaining sufficient power output, suitable for long range and ultra-long distance flights.
* 3 power levels adjustable PIT/25mW/800mW/4.5W.
* CNC integrated upper and lower shell covering structure, with built-in cooling fan, has strong heat dissipation effect and maintains stable performance.
* Dual-function buttons make parameter adjustment easier, and 2 sets of LED indicators display power/frequency group/frequency points at a glance.
* Supports IRC Tramp protocol OSD parameter adjustment.
* Supports 2-8s (DC 7-36V) wide voltage input.
* Supports 20X20 M2 hole installation.
Function Description:
* IRC tramp "PIT/25mW /800mW /4.5W"
* Press and hold the channel selection button for 1 second to switch CH 1-8 cycle.
* Press and hold the power selection button for 1 second to switch the power to 25mW/800mW/4.5W cycles.
* Press and hold the power selection button for more than 2 seconds to switch between entering PITMODE and exiting PITMODE
* When using this product, please comply with local regulations and install the antenna before use.
Package included:
1 x 1.2G 4.5W VTX
1 x SMA 100mm Adapter
1 x 1220-1470MHz Flat Antenna 165mm SMA
1 x GH1.25 6Pin 100mm Single-ended Cable
1 x SH1.0 4Pin-GH1.25 6Pin 60mm Double-ended Cable
