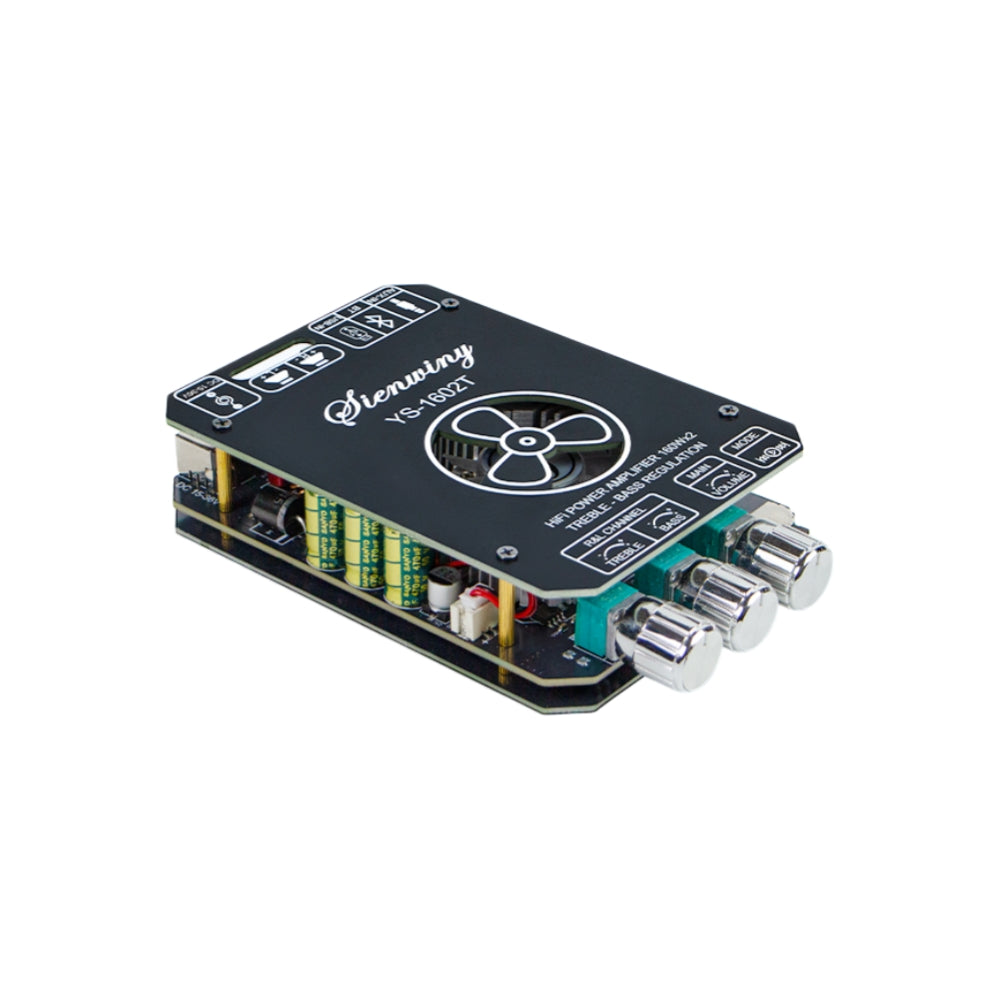

YS-1602T 2.0 Channel Audio HiFi Amplifier Board 160W+160W High Power Bluetooth 5.1 AUX USB Input TWS Amplifier Module - Black

Specification:
Product Name: 2.0-Channel Bluetooth Audio Amplifier Board
Model: YS-1602T
Channels: 2.0 Channel Stereo
Bluetooth Version: 5.1
Input Modes: Bluetooth / AUX / USB
TWS Function: Supported
Output Power: Left channel ≤160W + Right channel ≤160W
Peak Power: 320W
Power Supply: DC 15-36V / 5A
Compatible Speaker Power: 30-200W
Compatible Speaker Impedance: 4-8Ω
Control Functions: Master volume, left/right bass, left/right treble
Cooling Design: Heat sink + cooling fan
Protection Functions: OVP / UVP / OTP / DCD / SCP
Product Size: 13 x 8 x 2.9 cm

Features:
1. 320W high power 2.0 channel output: Supports up to 160W per channel, delivering strong stereo performance for home audio, DIY speaker systems, and multimedia use.
2. Bluetooth 5.1 with TWS connection: Equipped with Bluetooth 5.1 for stable wireless audio transmission, and supports TWS pairing to link two amplifier boards for expanded stereo sound.
3. 3 audio input options: Supports Bluetooth, AUX, and USB input, making it easy to connect phones, tablets, computers, USB devices, and other audio sources.
4. Independent bass and treble adjustment: Features separate left/right treble and bass control, plus master volume knob for more precise sound tuning.
5. Active cooling structure: Built with a large heat sink and cooling fan to improve heat dissipation during long-time operation and high-power playback.
6. Multiple protection system: Includes overvoltage, undervoltage, overheat, DC detection, and short-circuit protection for safer and more stable use.

Package Includes:
1 x Bluetooth Audio Amplifier Board
