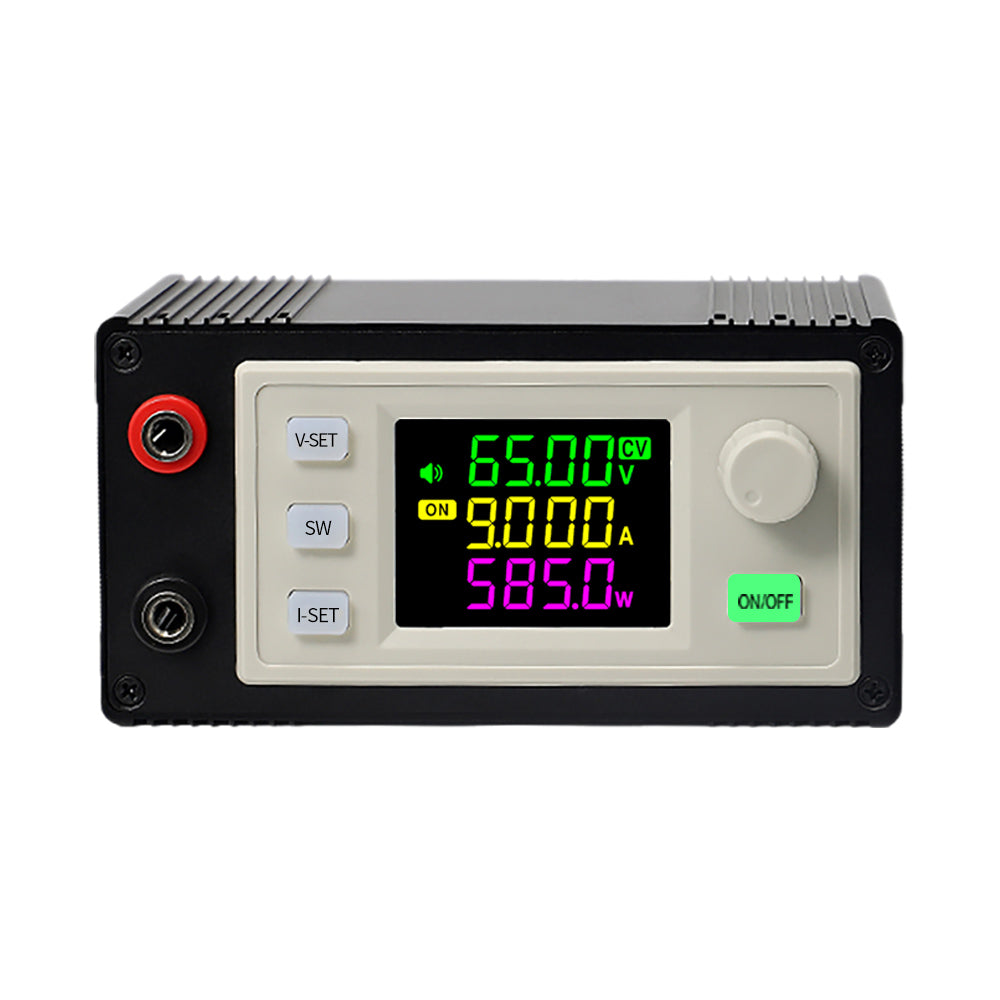

XY6509X XY6506X CNC Adjustable DC Power Supply Constant Voltage Constant Current Maintenance Step-Down Module
$29.99
In Stock
Description
Product parameters:
>>>Manual: Click here to open<<<
| Product name | DC buck- power supply | DC buck- power supply |
| Model | XY-6506X | XY-6509X |
| Input voltage | 12.00~72.00V | 12.00~72.00V |
| Output voltage | 0-65.00V | 0-65.00V |
| Output current | 0-6.000A | 0-9.000A |
| Accuracy of voltage | ±0.5%+1 word | ±0.5%+1 word |
| Power output | 390W | 585W |
| Accuracy of current | ±0.5%+3 word | ±0.5%+3 word |
| Resolution of voltage | 0.01V | 0.01V |
| Resolution of current | 0.001A | 0.001A |
| Storage data group | 10 groups | 10 groups |
| Soft start | YES | YES |
| Screen size | Over 1.8-inch LCD with a viewable area of 38*29mm | |
| Output ripple typical value | vpp-150mv | vpp-150mv |
| MPPT function | Support MPPT solar charging | Support MPPT solar charging |
| Buzzer | YES | YES |
| Efficiency of conversion | About 95% | About 95% |
| Number of buttons | 5 | 5 |
| Product size Package size | 86*50*45mm,104*70*52mm | 86*50*45mm,104*70*52mm |
| Product weight with packaging | 123g,143g | 129g,149g |
| Anti-reverse | YES | YES |
| Under-voltage(LVP) | Adjustable 10-75V, default 10V | |
| Over-voltage(OVP) | Adjustable from 0 to 67V, default is 67V | |
| Over-current(OCP) | Adjustable from 0 to 6.2A, default 6.2A | Adjustable from 0 to 9.2A, default 9.2A |
| Over-power(OPP) | Adjustable from 0 to 420W, default is 400W | Adjustable from 0 to 650W, default is 600W |
| Over-temp(OTP) | Adjustable from 0 to 110 ℃, default is 95 ℃ | |
| Over-time out(OHP) | 1 minute - 99 hours 59 minutes, off by default | |
| Over-capacity(OAH) | Adjustable from 0 to 9999Ah, disabled by default | |
| Over-energy(OPH) | Adjustable from 0 to 4200KWh, off by default | |
Package includes:
1 x CNC Adjustable DC Regulated Power Supply
