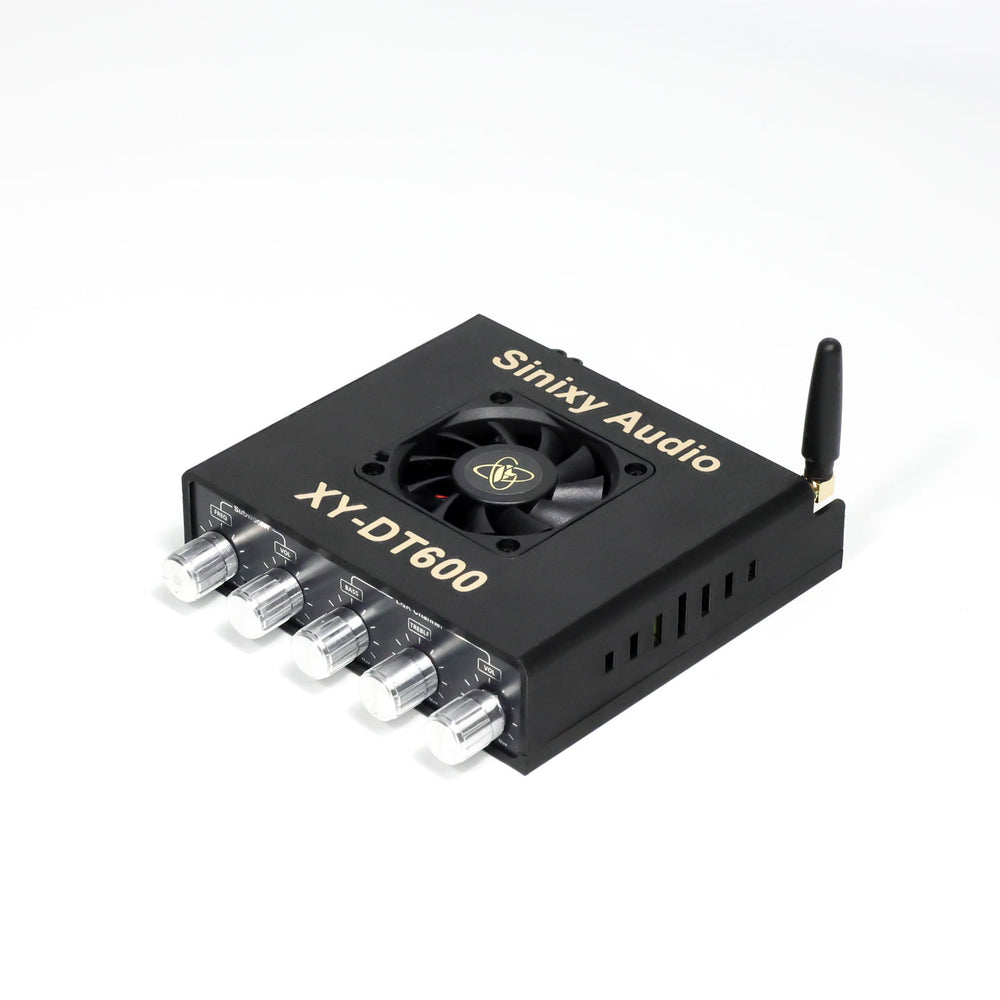

XY-DT600 TWS 2.1-Channel Bluetooth Audio Power Amplifier Board TPA3255 DC19-51V 10A 300W*2+600W AUX USB Audio AAC SBC
Description
Specification
Brand |
|
Name |
TWS 2.1-channel Bluetooth audio power amplifier |
Model |
XY-DT600 |
Power supply |
DC 19-51V/10A |
Audio input |
Bluetooth+AUX+USB Audio |
Bluetooth Audio |
AAC SBC |
USB Audio |
WAV FLAC APE MP3 |
Left and Right channel output power |
30W+30W @ 8Ω/24VDC |
70W+70W @ 4Ω/24VDC | |
80W+80W @ 8Ω/36VDC | |
160W+160W @ 4Ω/36VDC | |
160W+160W @ 8Ω/50VDC | |
300W+300W @ 4Ω/50VDC | |
Subwoofer output power |
30W @ 8Ω/24VDC |
70W @ 4Ω/24VDC | |
150W @ 2Ω/24VDC | |
80W @ 8Ω/36VDC | |
160W @ 4Ω/36VDC | |
350W @ 2Ω/36VDC | |
160W @ 8Ω/50VDC | |
300W @ 4Ω/50VDC | |
600W @ 2Ω/50VDC | |
Plug-in Terminal Block Version size/weight |
156*128*36mm/445g |
Lift-Type Terminal Block Version size/weight |
145*128*36mm/445g |
Plug-in Terminal Block And Antenna Version size/weight |
156*128*36mm/460g |
Lift-type Terminal Block And Antenna Version size/weight |
145*128*36mm/458g |
Features
1) TWS 2.1-channel Bluetooth audio power amplifier with Bluetooth, AUX, and USB Audio input.
2) Dual-chip TPA3255 design with high-efficiency and low-thermal performance.
3) Bluetooth chip supports AAC and SBC audio formats.
4) USB Audio supports WAV, FLAC, APE, and MP3 formats.
5) Upgraded heatsink, silent fan, and cooling ventilation hole design improve heat dissipation.
Package Included
1 x XY-DT600 Bluetooth audio power amplifier (optional)
