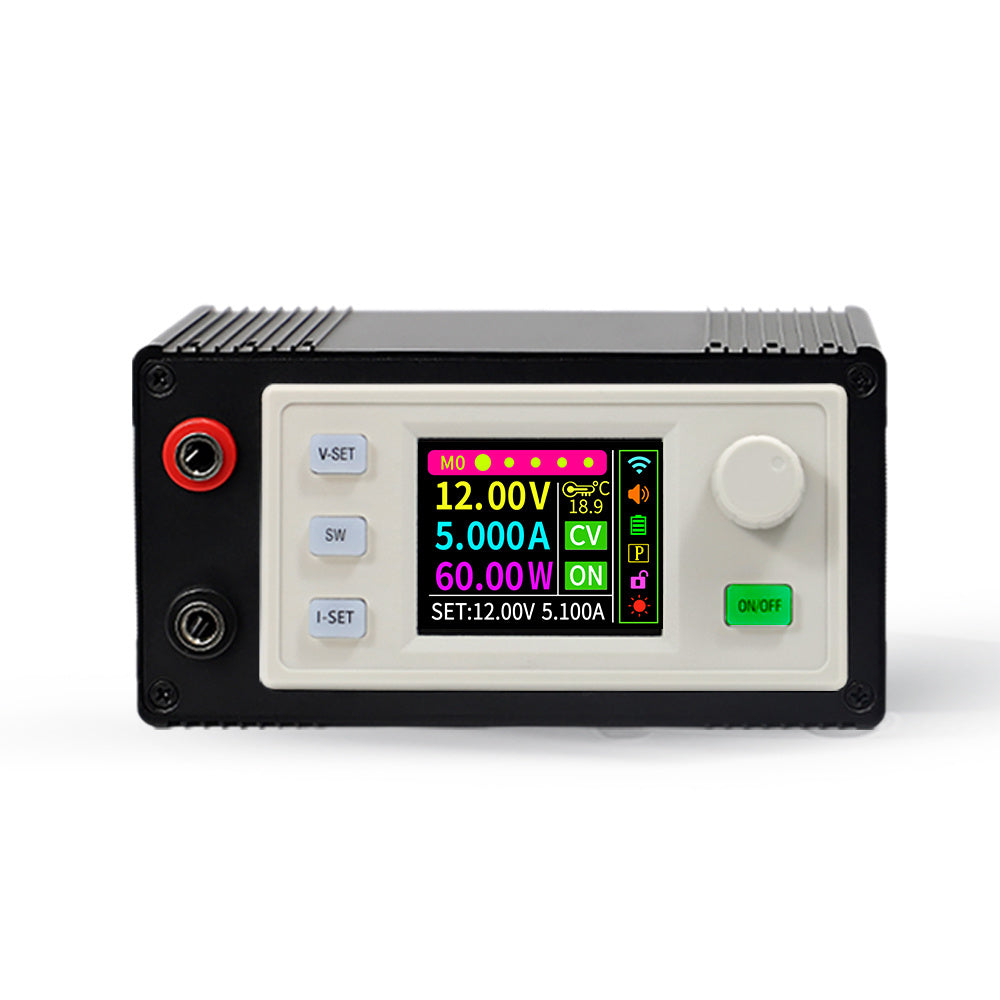

XY-6506S DC Buck-Boost Power Supply 65V 390W Power Converter for Solar Charging Adjustable Voltage Current Regulator

Specifications:

>>>Manual: Click here to open<<<

>>>PC Software: Click here to open<<<

- Product Name: DC buck-boost power supply

- Model: XY-6506S

- Input Voltage: 12.00~72.00V

- Output Voltage: 0~65.00V

- Output Current: 0~6.000A

- Power Output: 390W

- Accuracy of Voltage: ±0.5%+1 word

- Accuracy of Current: ±0.5%+3 word

- Resolution of Voltage: 0.01V

- Resolution of Current: 0.001A

- Storage Data Groups: 10 groups

- Soft Start: YES

- Screen Size: 1.8-Inch Full-View High-Brightness True Color LCD

- Output Ripple Typical Value: vpp-150mv

- MPPT Function: Support MPPT solar charging

- Efficiency of Conversion: About 95%

- Number of Buttons: 5

- Product Dimensions: 86*50*45mm

- Package Dimensions: 104*70*52mm

- Product Weight: 116g

- Product Weight with Packaging: 136g

Features:

1. High Precision and Reliability: With a voltage resolution of 0.01V and current resolution of 0.001A, the XY-6506S guarantees precise adjustments and readings, ideal for sensitive electronic tasks.

2. Advanced Protection Mechanisms: Equipped with comprehensive protection features such as anti-reverse, over-voltage, over-current, over-power, over-temperature, and more, ensuring safe operation and longevity of your devices.

3. User-Friendly Interface: The 1.8-Inch Full-View High-Brightness True Color LCD provides clear and accurate display of all settings and measurements, making it easy to monitor and adjust parameters.

4. High Efficiency and Energy Saving: With an efficiency of conversion at approximately 95%, this power supply minimizes energy loss, making it cost-effective and environmentally friendly.

5. Smart MPPT Solar Charging: Supports Maximum Power Points Tracking (MPPT) solar charging, enhancing the efficiency of solar panels and optimizing power use.

Package Included:

1 x XY-6506S DC Buck-Boost Power Supply(With Case)
