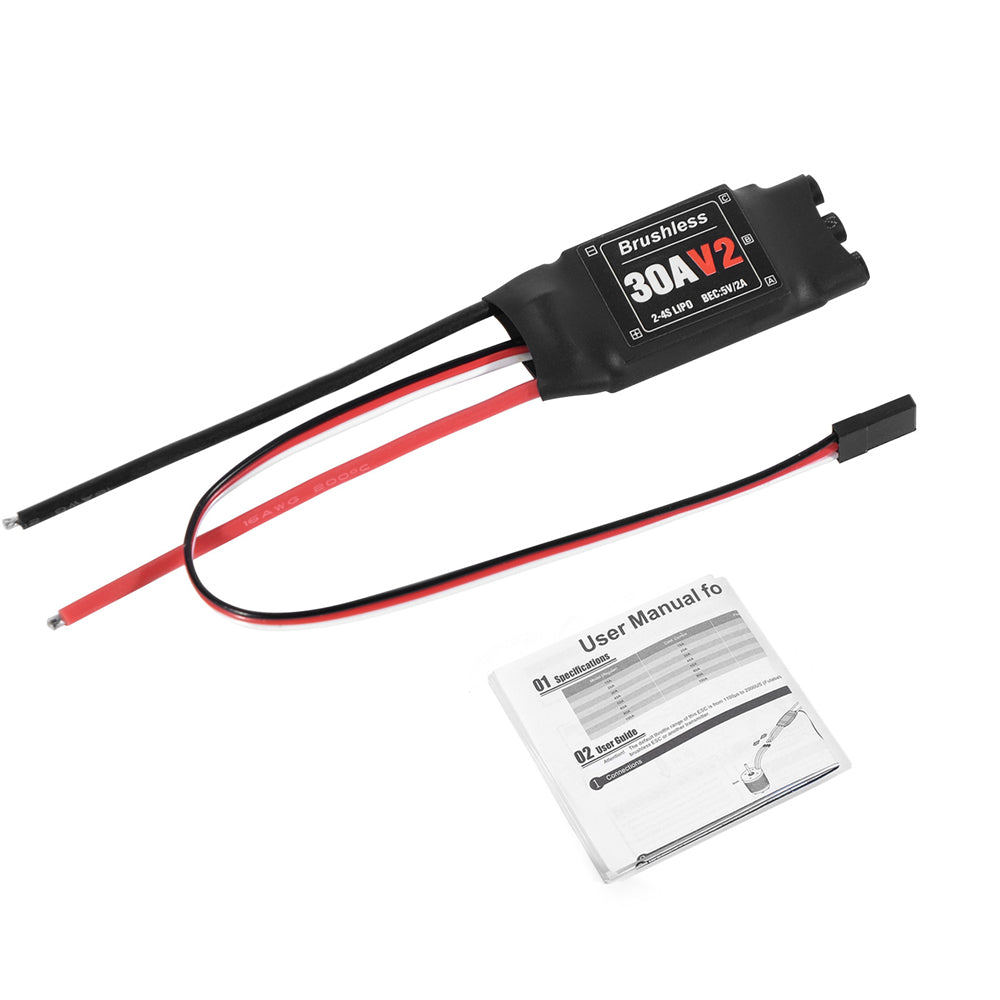

XXD 30A V2 2-4S Brushless ESC With 5V 2A BEC Support Programming For RC Airplane

Specifications:

Brand Name: XXD

Model: 30A V2

Product Name: Brushless ESC

Weight: 48g

Dimensions: 145 x 110 x 12 mm

Voltage Support: 2-4S LiPo

Continuous Current: 35A

Max Current: 50A

BEC Output: 5V 2A

Programming Card Weight: 35g

Programming Card Dimensions: 83 x 55 x 14 mm

Attention! The default throttle range of this ESC is from 1100µs to 2000 U S (Futaba's standard); users need to calibrate the throttle range when they start to use a new brushless ESC or another transmitter.

Description:

1. Brake Force

The brake function will be activated when you move the throttle stick to the bottom position. In this mode, the brake amount equals to the brake force you've preset.

2. Voltage Cutoff Type

Soft Cutoff:

After selected this option, the ESC will gradually reduce the output to 60% of the full power in 3 seconds after the low-voltage cutoff protection is activated.

Hard Cutoff:

After selected this option, the ESC will immediately cut off the output when the low-voltage cutoff protection is activated.

3. LiPo Cells

The ESC will automatically calculate the number of LiPo cells you have plugged in as per the "3.7V/Cell" rule if "Auto Calc." is selected, or you can set this item manually. (15A, 20A can only select the following parameters: automatic calculation, 2S,3S.)

4. Cutoff Voltage

If set off, the low-voltage protection function is disabled. In addition, the protection voltage value of the low-voltage protection function corresponding to the low/medium/three modes is about 2.8V/ section, 3.0V/ section and 3.4V/ section. This value is the voltage of a single battery, multiplied by the number of lithium batteries automatically identified by the electronic governor or the number of lithium batteries manually set, which is the protection voltage value of the battery. (For example, if the low voltage protection threshold of 3 lithium batteries is medium, the protection voltage of the batteries is 3X3.0=9.0V)

5. Start-up Mode

This is used to adjust the throttle response time of ESC acceleration from 0% to 100%. Normal/Soft/Very Soft correspond to approximately 200ms/500ms/800ms respectively

6. Timing

Can adjust the drive motor timing value. The low / Medium and high are respectively: 5°/15°/25°.

7. Active Freewheeling (DEO)

This item is adjustable between "Enabled" and "Disabled", and it is enabled by default. With it enabled, you can have better throttle linearity or smoother throttle response.

8. Search Mode

After selected this option, ESC will drive the motor chirping prompt when the throttle is keep 0% and continues to the set time.

No Plug Version Included:

1 x XXD 30A V2 Brushless ESC Without Plug

T Plug Version Included:

1 x XXD 30A V2 Brushless ESC With T Plug

XT60 Plug Version Included:

1 x XXD 30A V2 Brushless ESC With XT60 Plug

Banana Plug Version Included:

1 x XXD 30A V2 Brushless ESC With Banana Plug

Program Card Version Included:

1 x Program Card (ESC is not included)
