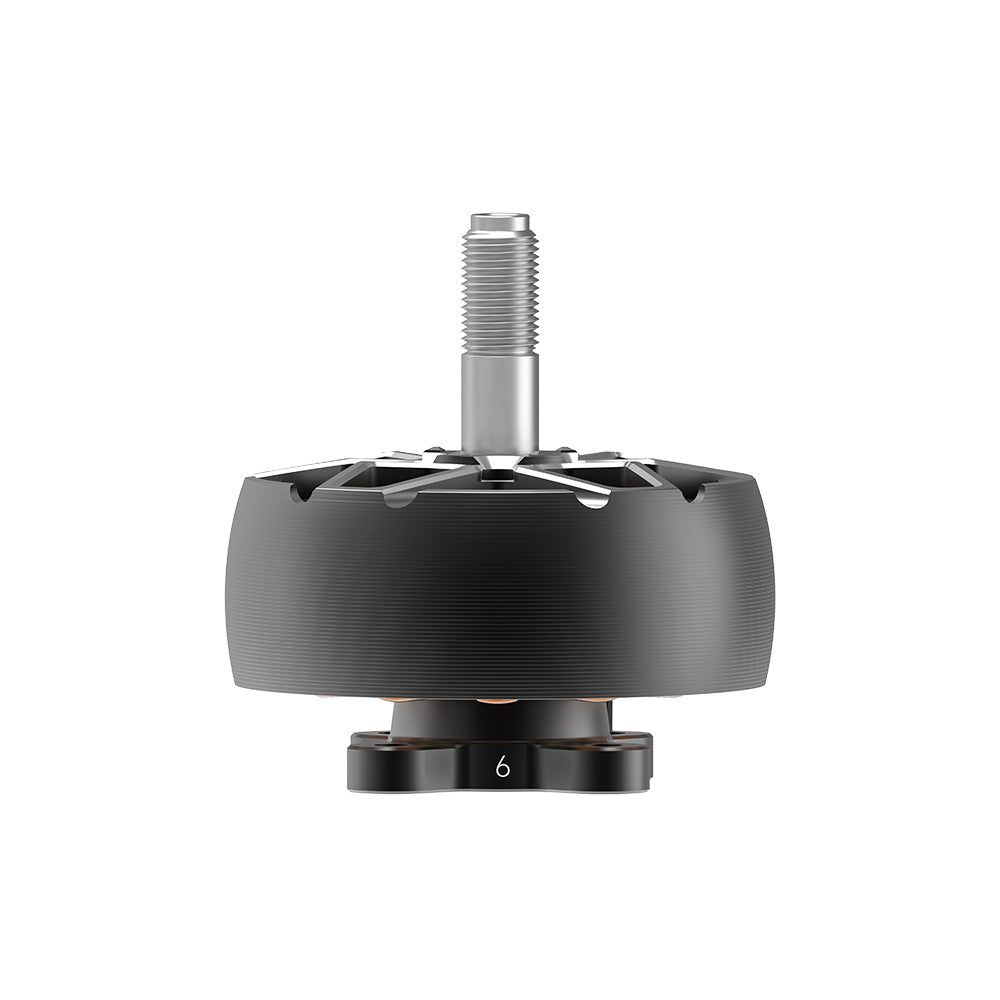

XING2 2809 1250KV 6S Cinelifter Brushless Motor for Chimera7 Pro V2 Long Range Cinematic RC Drone FPV Racing

• Voltage: 6S
• RC Drone Spare Parts: Motor

Specifications: ( Drawing Picture and Test Table)
Model: XING2 2809
KV: 1250KV
Weight(included wire): 60.7g
Dimension: φ35.33*21.7mm
Interphase Resistance: 65.46mΩ
Input Volts: 24V
Peak Current: 49.23A
Max Watt: 1147.1W
Mounting Holes: 19*19 φ3mm
Rotor Specifications: Unibell
Shaft Diameter: 4mm
Shaft Protruding Length: 15mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: φ11φ55
Winding: Single Strand copper winding

Features:

Powerful Performance: 1250KV Motor for optimal power and precision.

Sturdy Design: 5mm titanium alloy shaft and 7075 aluminum bell for increased crash resistance.

Quality Components: Long-lasting NSK 11x5x5 bearings and center slotted N52H curved arc magnets for improved performance.

Motor Protection: Features XING O-ring bearing gap protection and motor wires protector.

Balanced Operation: Dynamically balanced for a smoother flight experience.

Package Includes:
1 x XING2 2809 Brushless Motor
4 x M3x8 screws
1 x M5 Flange Nut

OR

4 x XING2 2809 Brushless Motor
8 x M3x8 screws
4 x M5 Flange Nut
