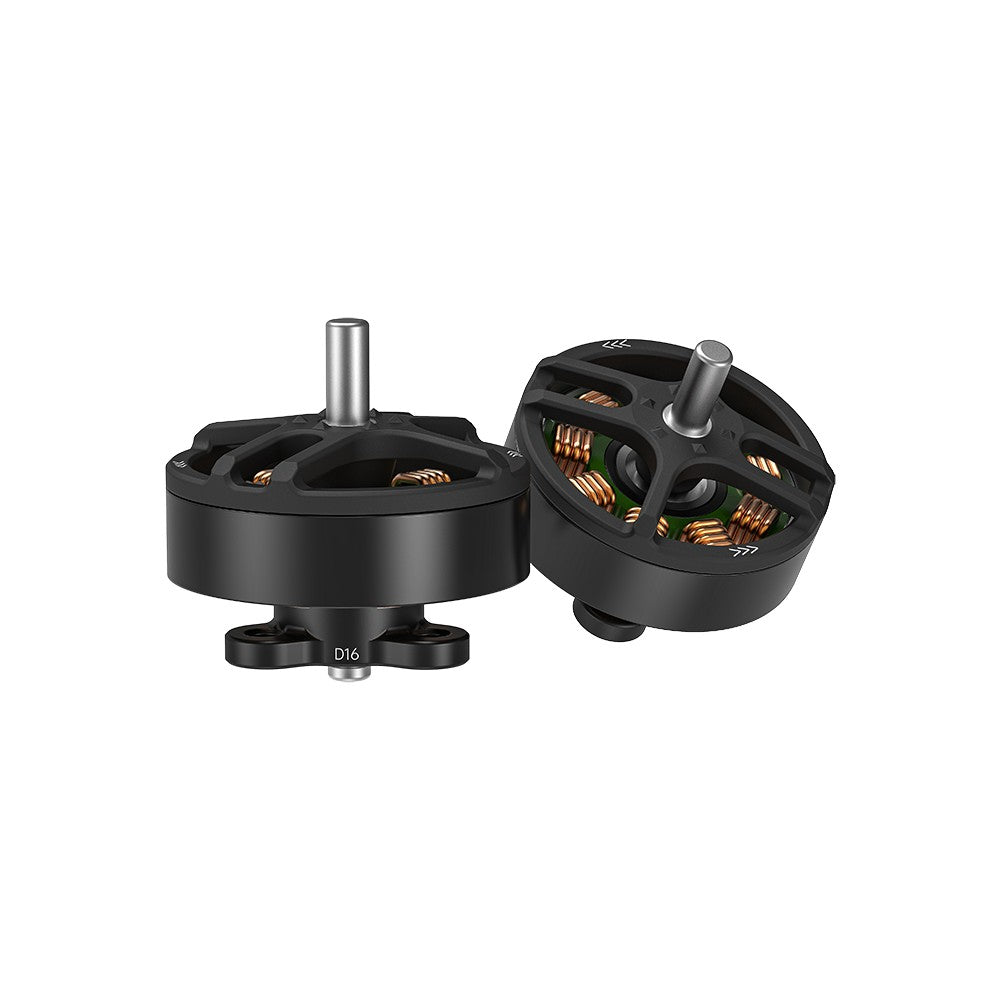

XING2 1002 14000KV 2S Brushless Motor 1.5mm Shaft for Defender16 Whoop RC FPV Racing Drone

• Voltage: 2S
• RC Drone Spare Parts: Motor

Specifications:

Model: XING2 1002
KV: 14000KV
Weight(included wire): 2.7g
Dimension: 12.5*11.5mm
Interphase Resistance: 0.269Ω
Input Volts: 8V
Peak Current: 6.87A
Max Watt: 53.2W
Mounting Holes: 6.6mm/φ1.4mm (3 mounting holes)
Rotor Specifications: Segmented bell
Shaft Diameter: 1.5mm
Shaft Protruding Length: 3mm
Lead: 50mm/28AWG/SH1.25 3P
Magnet: N52H Curved
Configuration: 9N12P
Bearing Type: NMB
Bearing Specification: φ4*1.5*2.mm
Winding: Single Strand copper winding

Application: Original Replace Motor for LinkMejor Defender16 FPV Racing Drone

Features:

High-Performance KV: With a KV rating of 14,000, this motor is designed for speedy and agile flight performance in ultralight builds.

Ultra-Lightweight: Weighing just 2.7 grams including the wire, this motor is optimized for sub-250gram micro drone setups.

Durabl Build: Features a segmented bell rotor and a tough N52H curved magnet, ensuring long-lasting performance and reliability.

Efficient Design: Engineered with low interphase resistance (0.269Ω) and high peak current (6.87A), this motor offers both efficiency and power in one package.

Precision Bearings: Equipped with high-quality NMB bearings and a 1.5mm shaft, you can expect smooth, friction-less movement and improved lifespan.

Package Included:
1x 1002 Motor CW OR

1x 1002 Motor CCW
