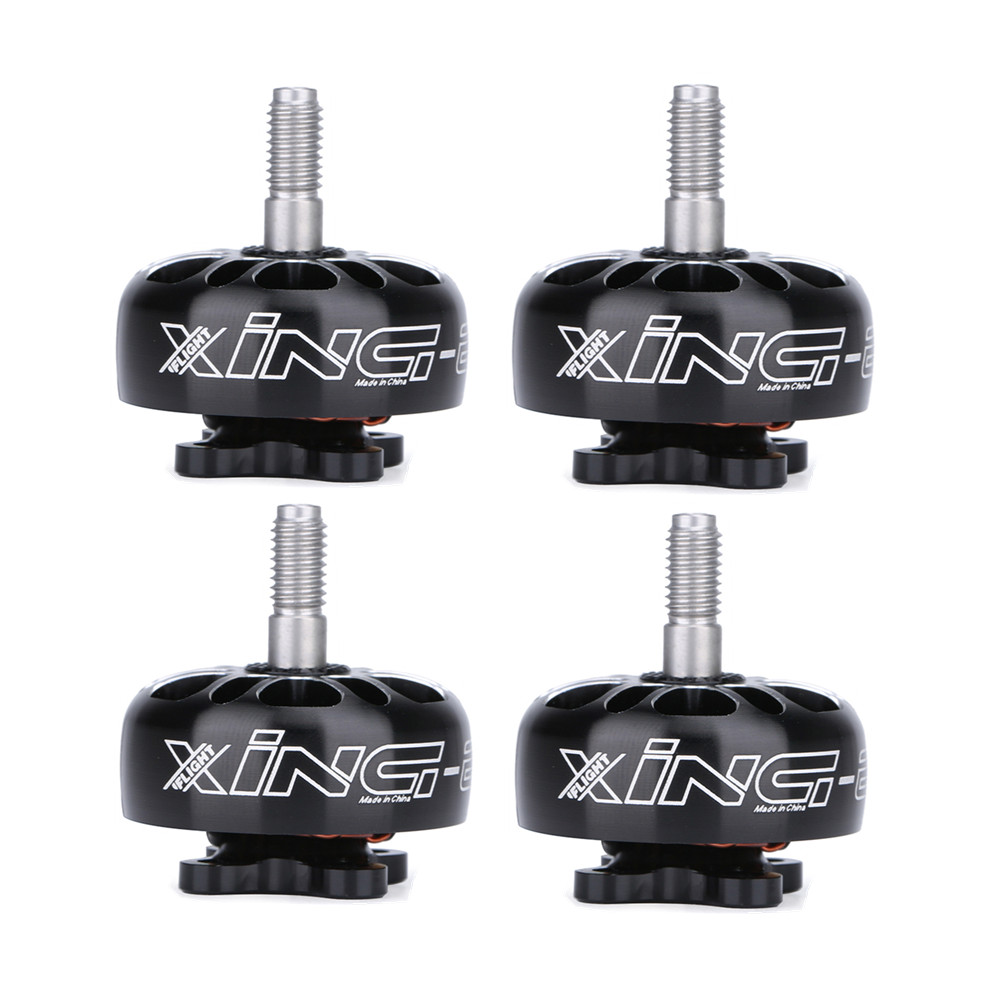

XING-E Pro 2306 1700KV 3-6S / 2450KV 2-4S Brushless Motor for RC Drone FPV Racing
$19.99
In Stock
Description
- RC Drone Spare Parts: Motor
Specification:
Configuration: 12N14P
Stator Diameter: 23mm
Stator Length: 6mm
Shaft Diameter: 5mm
Motor Dimension: 29.5x18.7mm (Dia*Len)
Weight: 33.1g
Idle Current(10) @10V: less than 1A@1700KV; less than 2A@2450KV;
Max. Con. Power (180S): 893W@1700KV; 748.8W@2450KV;
Internal Resistance: 76.4mΩ@1700KV; 47.3mΩ@2450KV;
Max. Current (180S): 37.2A@1700KV; 44.57A@@2450KV;
Package Included:
1x iFlight XING-E 2306 Motor
1x Motor Nut
4x Screws
OR
4x iFlight XING-E 2306 Motor
4x Motor Nut
16x Screws
