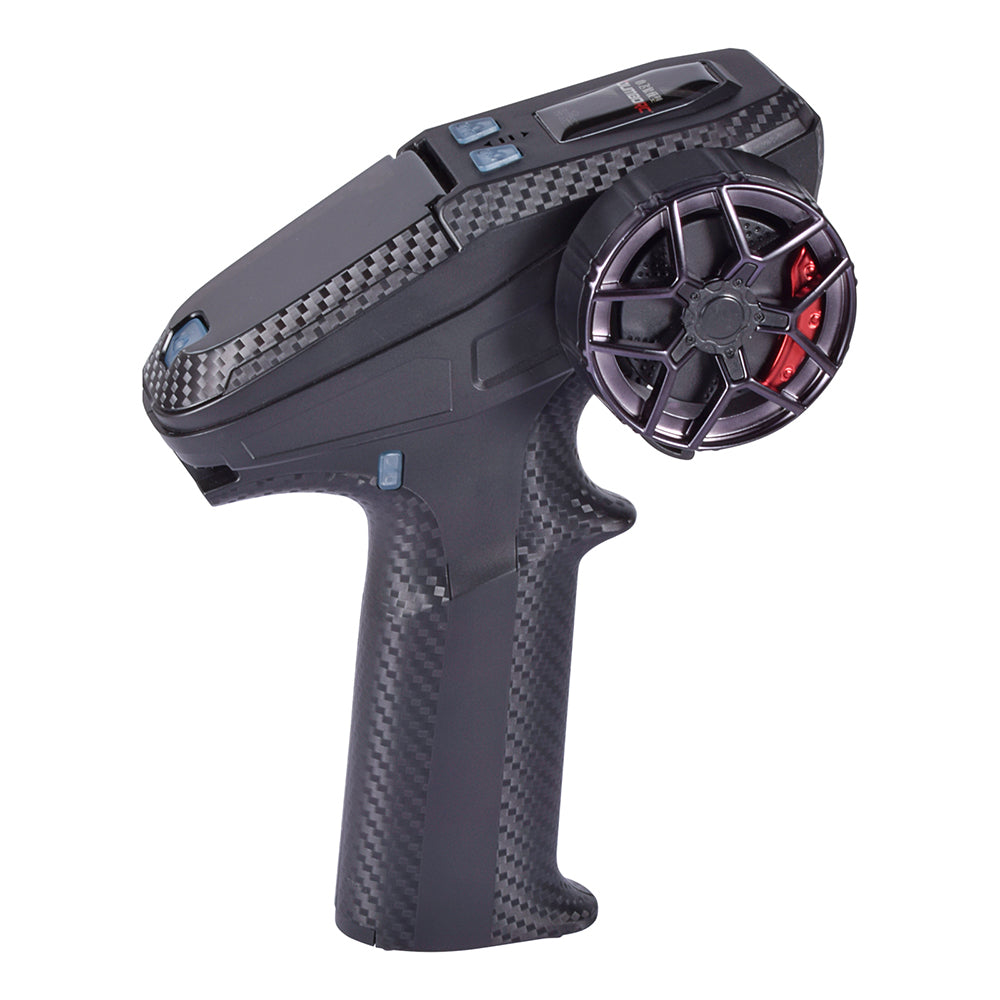

X6PM-350 2.4GHz 6CH Mini Radio Transmitter Support Gyro With P6FG/P6DCG/P6FP/P4FMG/BL3F Receiver for RC Car Boat Tank Model Parts
Description
- RC Drone Spare Parts: Radio Controller
- Control Channels: 6 Channels
- Frequency: 2.4GHz
DumboRC X6PM-350 2.4GHz 6CH Mini Radio Transmitter Support Gyro With P6FG/P6DCG/P6FP/P4FMG/BL3F Receiver for RC Car Boat Tank Model Parts
Description:
Model: X6PM-350
X6PM-350 Transmitter Specification:
Channel: 6CH
Radio Transmitter Distance: 350-400 meters
Remote Control Working Current: 80-120mA
Receiver Operating Current: 30mA
Modulation Mode: GFSK
Remote Control Voltage Range: 4.8-12V
Receiver Voltage Range: 4.8-10V
RF Power: <20dbm
Voltage Alarm: 10.8V7.4V/4.4V
Product Size: 180*130*65mm
Weight: 168g
Battery: 4x AA battery (not included)
Fit For: RC Car Boat Tank Mode
Spreading Mode: FHSS 67 channepseudo-random frequency hopping
P6F Receiver Specification:
Channel: 6CH
Version: Without Gyroscope
Modulation Mode: GFSK
Spread Spectrum: FHSS
Control Distance: More than 400 meters
Voltage Range: 4.8-10V
Working Current: 30mA
Product Weight: 6.1g
Product Size: 35*20*13mm, antenna length 106 mm
P6FG Receiver Specification:
Channel: 6CH
Version: With Gyroscope
Model: Car/boat/tank
Modulation Mode: GFSK
Spread Spectrum: FHSS
Control Distance: More than 400 meters
Voltage Range: 3.3-10V
Working Current: 30mA
Product Weight: 6.1g
Product Size: 35*20*13mm, antenna length 106 mm
P6FP Receiver Specification:
1. Channel: 6CH
2. Supports light control in any channel
3.PPM and PWM Output
4. Voltage Return
5. C0ach function used with wirelesstrainer module (Purchase it separately).
P4FMG Receiver Specification:
Signal: PWM
Channel: 4CH
Version: With Gyroscope
Voltage Range: 3V-10VDC
Size: 25*13*8mm
Weight: 2.3g
Working Current: 30mA@5V
Spread Spectrum: FHSS (67 channel pseudo-random frequency hopping)
P4FM Receiver Specification:
Signal: PWM
Channel: 4CH
Version: Without Gyroscope
Voltage Range: 3V-10VDC
Size: 25*13*8mm
Weight: 2.3g
Working Current: 30mA@5V
Spread Spectrum: FHSS (67 channel pseudo-random frequency hopping)
BL3F(G) Receiver Specification:
Channel: 4CH
Version: With Gyroscope
Light Control
10A ESC
Modulation Mode: GFSK
Spread Spectrum: FHSS
Control Distance: More than 400 meters
Receiver Voltage Range: 4.8-10V
ESC Voltage Range: 2-3S
Compatible with: X4 X5 X6 X6A X6P Transmitter
Product Size: 40*28*19mm, antenna length 160 mm
BL3F Receiver Specification:
Channel: 4CH
Version: Without Gyroscope
Light Control
10A ESC
Modulation Mode: GFSK
Spread Spectrum: FHSS
Control Distance: More than 400 meters
Receiver Voltage Range: 4.8-10V
ESC Voltage Range: 2-3S
Compatible with: X4 X5 X6 X6A X6P Transmitter
Product Size: 40*28*19mm, antenna length 160 mm
P6DC(G) Receiver Specification:
Channel: 6CH
Version: With Gyroscope
Light Control
Product Size: 35*21*14mm
Voltage: 4.8-10V
Product Weight: About 8g
P6DC Receiver Specification:
Channel: 6CH
Version: Without Gyroscope
Light Control
Product Size: 35*21*14mm
Voltage: 4.8-10V
Product Weight: About 8g
DumboRC X6PM-350 Transmitter Manual, Click here
Package Included:
1x DumboRC X6PM-350 Transmitter
1x P6F/P6FG/P6DC/P6DCG/P6FP/P4FM/P4FM(G)/BL3F/BL3F(G) Receiver (Optional)
1x Manual
