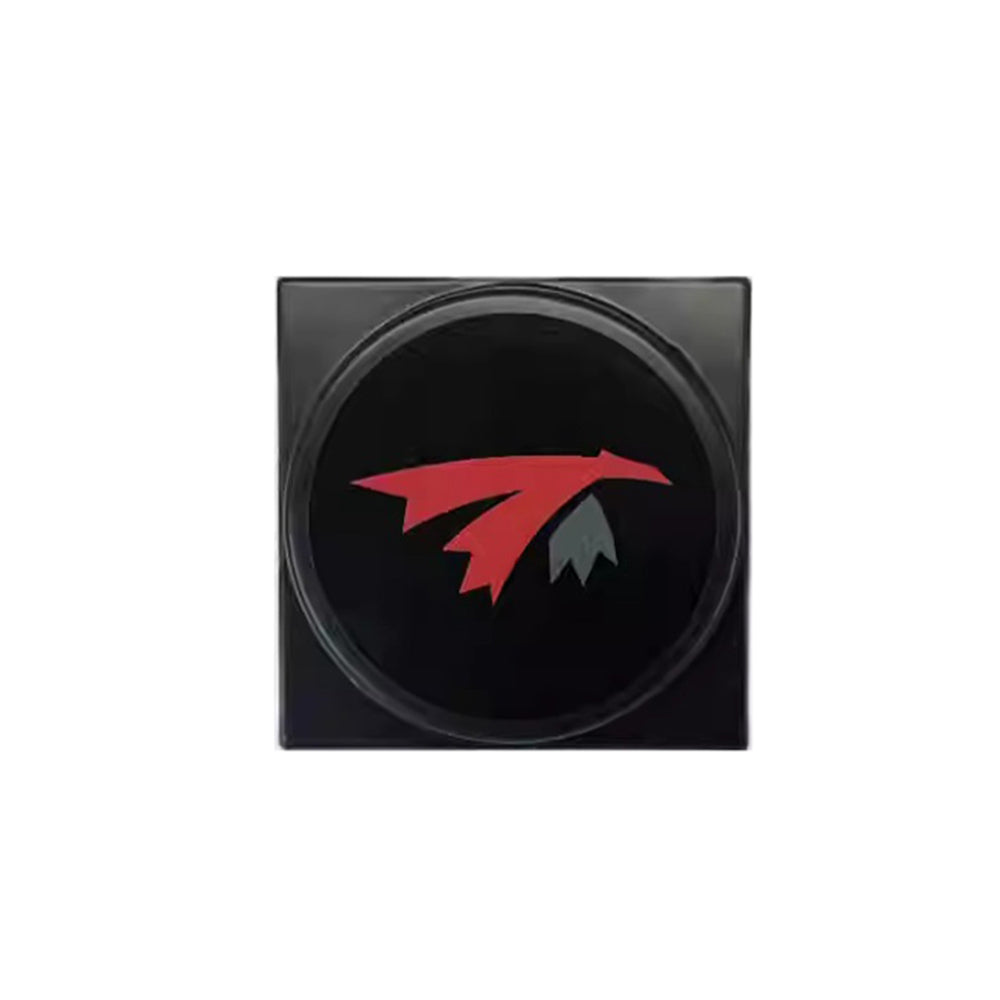

X-AIR 1.3GHz 3.3GHz 10dBi Gain SMA-Male Connector RHCP Antenna For HDZERO Goggles

Description:
The new X-AIR 1.3 is a latest redesign of the cross antenna. It eliminates the only drawback of this type of antenna: their size. Almost a quarter of the original footprint, the same wide coverage and high axial ratio make it perfect for long-range adventures without antenna aiming adjustments. A 1/4-20 mounting point at the rear makes attaching this feather-light antenna incredibly easy to your ground station.

Specification:
Model: X-AIR
Frequency: 1.3GHz
Gain: 10dBi
Polarization: RHCP
Radiation Efficiency: 98%
Beamwidth: 120 degrees
Beamwidth @ -3dBi: 68 degrees
Connector: SMA-male
Dimensions: 152mm x 152mm x 30mm
Mounting: Standard 1/4-20 flat thread
Weight: 135g

*Receives signal equivalent to at least 70% of the omnidirectional coverage area at the maximum distance.

Package Included:
1 x TRUERC X-AIR 1.3G Antenna
