Wyvern Link Alphaa 200mW 5.8GHz HD FPV VTX Camera Combo – Sonyy IMX415, 1080P/90FPS, 720P/120FPS, OpenIPC Firmware, Betaflight OSD Canvas Mode, 4.83g, 25.5×25.5mm, IPEX1 for Racing Freestyle Drone

OpenIPC. The Firmware That Sets This Apart. Most HD FPV systems lock you into closed, proprietary firmware. You get what the manufacturer gives you. No more. No less. No questions. The EMAX Wyvern Link Alphaa runs on OpenIPC—an open-source operating system built by and for the FPV community. Full access to source code. Community-driven improvements. Parameters you can actually adjust. Functions you can actually extend. This isn't a product with a fixed feature set. It's a platform that gets better every time a developer contributes. MIT License. No walled gardens. No forced obsolescence. S0ny IMX415 Sensor. The Gold Standard. The IMX415 is S0ny's benchmark 1/2.8" sensor for compact high-definition applications. It delivers 1080P at up to 90FPS and 720P at 120FPS with low noise and excellent dynamic range. Gate edges stay sharp. Fast motion stays smooth. Low-light performance exceeds what typical FPV sensors can manage. This is the same sensor family used in professional security and broadcast applications—now sized for your 3-inch, 5-inch, or 7-inch build. 4.83 Grams. Your Build Won't Notice. The entire VTX and camera module weighs 4.83 grams. That's lighter than a single 5-inch propeller. It disappears into toothpicks. It's negligible on 5-inch freestyle rigs. It enables HD on ultralight builds where every gram counts. Standard 25.5×25.5mm mounting holes with M2 screws drop into frames designed for Vista, Link, and other digital VTX standards. The 14×14mm camera fits standard micro brackets. 200mW Network Card. 5W System Power. The network card outputs 200mW—optimized for proximity flying, racing, and general FPV use. The system supports up to 5W total transmission power with a maximum current draw of 1.1A across the wide 5.120-5.825GHz frequency band. Clean signal. Strong anti-interference. Stable link through dynamic environments. Complete Configuration Kit Included Every Wyvern Link Alphaa comes with the Network Adapter Connector (Download Board) and 8-pin Downloader Cable. Connect to your computer via Ethernet or USB-C. Fine-tune transmission power. Adjust resolution and frame rate. Configure advanced OpenIPC parameters. Full control. Direct from your desktop. No walled-garden apps. No proprietary configuration tools. 2S-6S Wide Voltage. Universal Power. The VTX accepts 5V DC input, while the companion receiver (sold separately or as part of complete kits) handles 2S-6S LiPo direct power. This flexible design supports nearly every modern FPV battery configuration without external voltage regulators. Features * OPENIPC OPEN-SOURCE FIRMWARE: MIT License. Full source code access. Community-driven development. Customize parameters. Unlock extended functions. No walled garden. No forced obsolescence. * S0NY IMX415 SENSOR: Premium 1/2.8" sensor. 1080P up to 90FPS. 720P up to 120FPS. Low noise. Excellent dynamic range. Professional-grade imaging. * 4.83G ULTRALIGHT: Lighter than a single prop. Ideal for toothpicks, ultralight builds, and any drone where weight is the enemy of performance. * 200MW NETWORK CARD / 5W SYSTEM POWER: 5.120-5.825GHz wide frequency band. Max 1.1A current. Stable transmission with strong anti-interference. * STANDARD 25.5×25.5MM MOUNT: M2 screws. Drops into frames designed for Vista/Link digital VTX standards. 14×14mm camera fits standard micro brackets. * CONFIGURATION ADAPTER INCLUDED: Network Adapter Connector + 8-pin Downloader Cable. Ethernet and USB-C computer connection. Direct parameter customization. No proprietary software required. * 5V VTX INPUT / 2S-6S RECEIVER INPUT: Flexible power design. Compatible with nearly all modern FPV battery configurations. * DUAL RESOLUTION MODES: 1080P/60-90FPS for detailed HD. 720P/120FPS for ultra-smo0th high-speed. Balance clarity and latency for your flight style. * COMMUNITY-DRIVEN DEVELOPMENT: Part of the OpenIPC ecosystem. 98+ repositories. 1.2k+ followers. Active community. Continuous improvement.

Specification:

VTX & Camera Module

Antenna

Companion Receiver (For Reference)

[Important Power Warning] ⚠️ CRITICAL: This VTX requires 5V DC input. DO NOT connect directly to 2S-6S LiPo batteries. The VTX must be powered from a regulated 5V source, such as your flight controller's 5V BEC output. Connecting directly to a LiPo battery will damage the VTX. System total power consumption is 5W with a maximum current draw of 1.1A. Ensure your flight controller's 5V BEC can supply sufficient current.

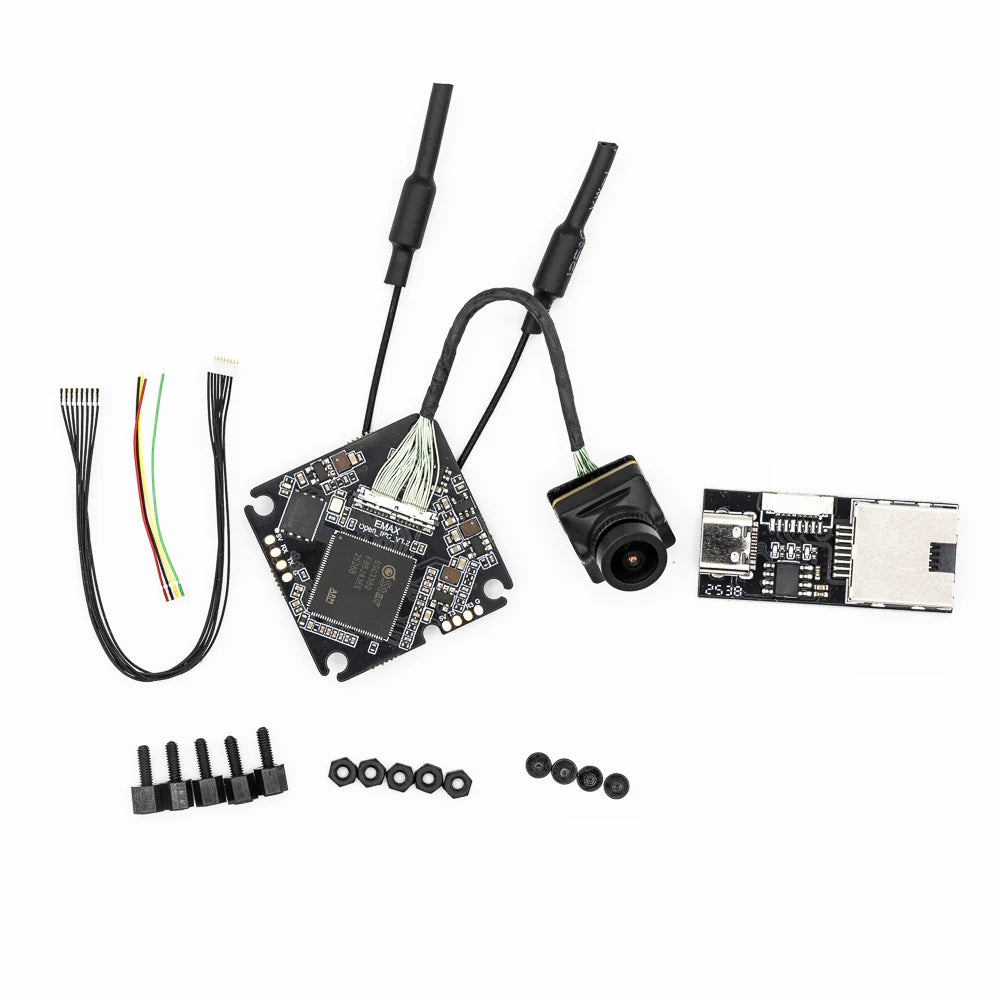

Package included:
1 x OpenIPC VTX 200mW (Wyvern Link Alphaa)
1 x S0ny IMX415 Camera (14×14mm Standard Lens, M8 Thread)
1 x IPEX1 Linear Polarized Antenna (~2dBi)
1 x Network Adapter Connector (Download Board)
1 x MIPI Cable (80mm Standard)
1 x 4-Pin Power Cable
1 x 8-Pin Downloader Cable
1 x Screw Accessory Kit
