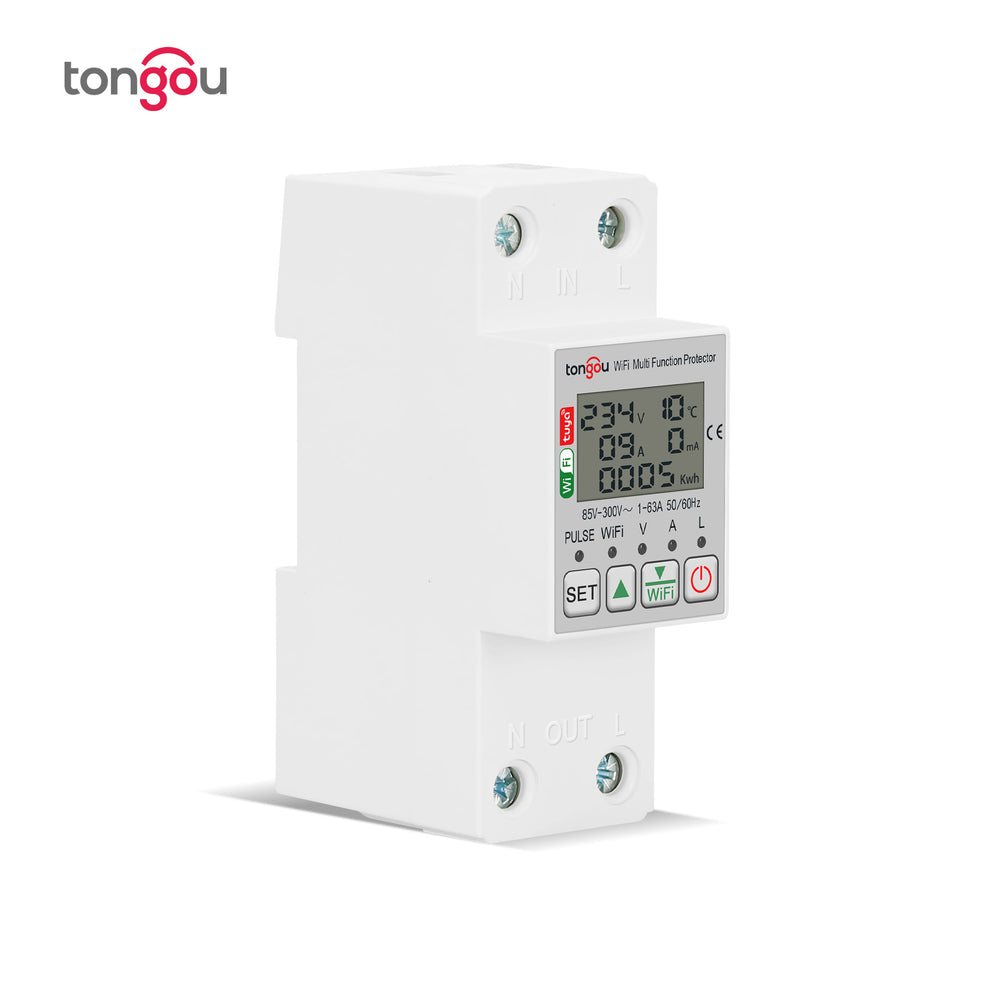

WiFi Smart Electric Meter for Home Use Enabled Remote Control Real-Time Display Adjustable Over and Under-voltage Protection Over-current and Leakage Protection Energy Efficient
Description
Features:
Smart Monitor and Control: The WiFi-enabled smart electric meter allows you to remotely control and monitor your home’s power usage, voltage, and electricity consumption, ensuring efficient energy management.
Real-time Display: This device provides a real-time display of working voltage, ampere, and Kwh, offering a clear and instant understanding of your power utilization.
Timed Appliances Functionality: Incorporates a timed appliances feature resulting in less waiting time and more convenience. You don't need to be around the device , just set the time, and it will turn off or on accordingly.
Adjustable Over and Under-voltage Protection: The smart meter gives you the ability to set your own thresholds for over-voltage and under-voltage protection, maintaining the safety of your appliances and preventing unnecessary power wastage.
Over-current and Leakage Protection: With the adjustable over-current protection value and leakage protection value, you can ensure the safety and longevity of your electrical appliances.
Specifications:
Product: WiFi Enabled Smart Electric Meter
Over-current Protection Value: 1-63A (Default 63A)
Input Voltage: 85-300V
Over-voltage Protection Value: 120-300V (Default 275V)
Under-voltage Protection Value: 85-200V (Default 160V)
Power Consumption: <2W
Leakage Protection Value: 10-99mA (Default 30mA)
Dimension: 100×36mm
Function |
Technical Parameter |
Function |
Technical Parameter |
Input voltage |
85-300V |
Over-current protection value |
1-63A default 63A |
Over-voltage protection value |
120-300V |
Action time |
<1s default 275V |
Under-voltage protection value |
85-200V |
Power consumption |
<2W default 160V |
Leakage protection value |
10-99mA default 30mA |
Boundary dimendion |
100×36mm |
Package Included:
1 x WiFi Enabled Smart Electric Meter
