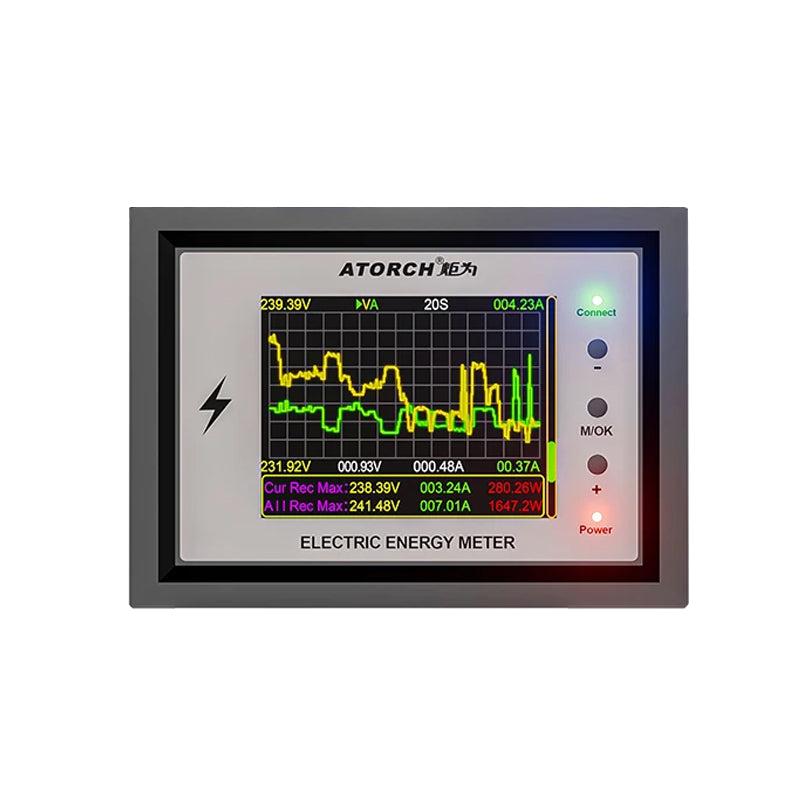

WiFi DC Voltmeter Ammeter CW24 1000A 420V Digital Energy Meter Tuya Smart Life App Battery Capacity Tester Power Monitor 300cm Type-C Cable

Specifications:
Product Name: DC Voltmeter Ammeter
Type:
WIFI Version: CW24-30A/CW24-100A/CW24-200A/CW24-500A/CW24-1000A (Optional)
Basic Version: 100V 80A (Optional)

CW24 Detachable WiFi Smart Voltmeter:
Voltage Range: DC 0-420V
Current Range: 0.10-30A / 0.10-100A / 0.20-200A / 0.50-500A / 1.00-1000A
Power Measurement: Up to 420KW (depending on model)
Capacity Range: Up to 999999Ah
Energy Range: Up to 9999999Wh
Screen Type & Size: 2.4-inch Full-Color Display
Operation Type: 3-Key Panel Button
Protection Functions: Overvoltage, Overpower, Overtemperature, Low Voltage Alerts
Data Transmission: WiFi / Bluetooth / Computer Connection
Supported Apps: Tuya App / Smart Life (Free)
Product Size:
Panel: 86 × 63 × 17 mm
Diverter: 66 × 61 × 35 mm (30A-200A Models); 120 × 70 × 48 mm (1000A Model)
Cable Type: Extendable 300cm Type-C

Features:
1. Wide Voltage and Current Measurement: Supports DC 0-420V voltage and current ranges from 0.10A to 1000A across different models, catering to diverse energy monitoring requirements for industrial and personal use.
2. Intelligent Connectivity: Integrates WiFi and Bluetooth technology for seamless data transmission and remote monitoring via the Tuya or Smart Life app, enhancing real-time control and energy tracking.
3. Advanced Energy Analysis: Displays dynamic energy statistics, such as power consumption, voltage, current, and battery health, with precise visual graphs, ensuring comprehensive energy management at a glance.
4. Secure Operation: Embedded protective functions such as overvoltage, overtemperature, and low voltage alerts safeguards your equipment, ensuring consistent and safe performance in various conditions.
5. User-Friendly Interface: Equipped with a vibrant 2.4-inch color screen and easy-to-operate three-button control system, simplifying setup and tracking for both beginners and professionals.

Package Included:
CW24-30A/CW24-100A/CW24-200A/CW24-500A/CW24-1000A:
1 x CW24 Detachable WiFi Smart Voltmeter
1 x 300cm Cable
1 x Temperature Probe

100V 80A:
1 x DC Voltmeter Ammeter
1 x Signal Cable
1 x Screw
2 x Nut
2 x 100A Copper Nose
