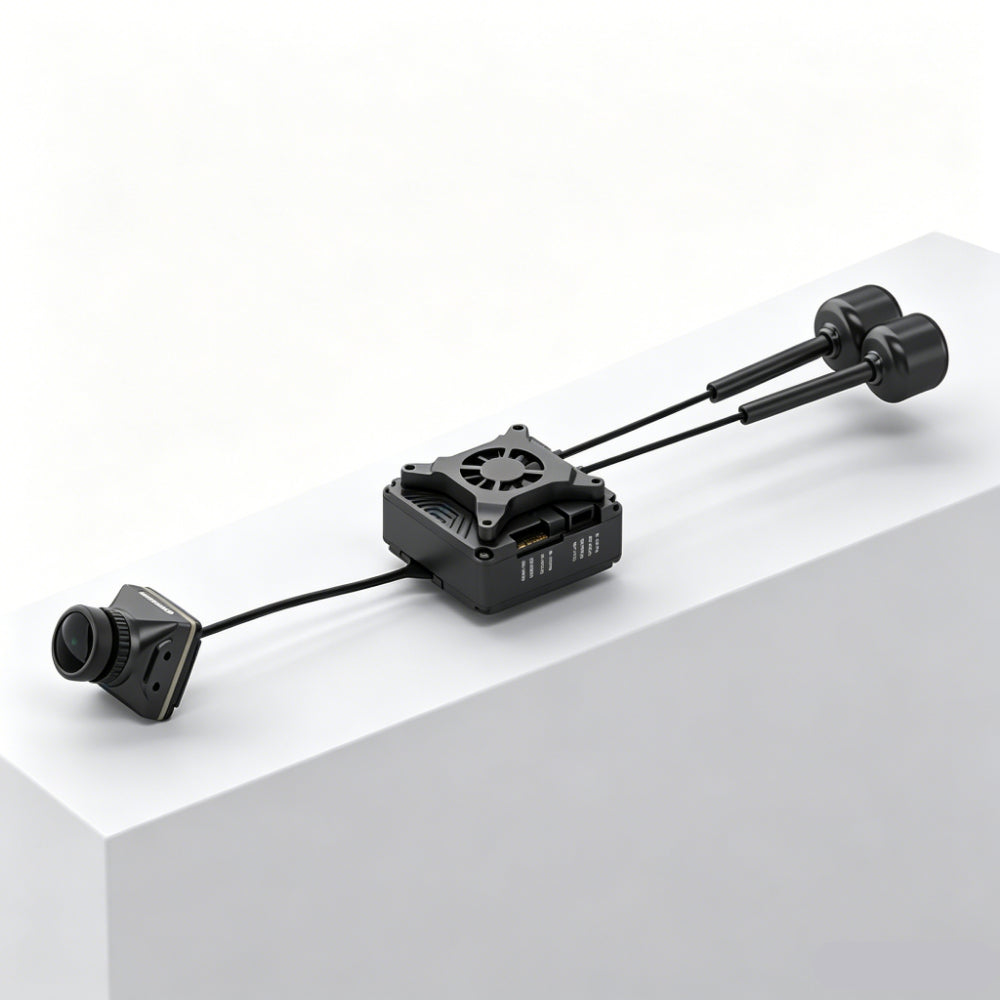

Walksnail Avatar GT KIT 1080P HD Pro Camera 160°FOV Gyro 1/1.8" Camera 5.8GHz 2W High Power Long-Distance FPV Transmission FPV Cam VTX Kit
Description
- Screen Ratio: 4:3/16:9 Switchable
- Type: Digital Signal
- Camera Resolution: 1080P
- RC Drone Spare Parts: Camera&Screen
- Frequency: 5.8GHz
- Applicable User: Universal
- Interface Type: SD/TF
- Application: Other
- Power: Above 1000mw
Features
1. Extended transmission range with adjustable power output, reaching up to 2W within legal regulations to satisfy diverse flight scenarios, ensuring stable long-range exploration and immersive FPV flying.
2. Top-mounted heatsink design efficiently dissipates heat, maintaining consistent high performance even during prolonged high-power operation.
Built-in Micro SD card slot supporting up to 256GB for uninterrupted HD video recording in 1080p or 720p resolution, capturing every flight moment in detail.
3. Internal high-performance ceramic antenna optimizes low-power mode operation, reducing power consumption and heat generation for improved efficiency.
4. Enhanced GPS interference resistance delivers more stable and reliable flight performance even in complex and challenging environments.
Equipped with a professional camera featuring a 1/1.8-inch Sonyy Starvis II sensor, delivering exceptional low-light and night vision performance with near-daytime clarity.
5. Native Gyroflow support for ultra-smoothh, stabilized footage, eliminating jitter and vibration during high-speed flight.
6.Supports both high frame rate and standard frame rate modes, with an average latency of just 22ms in high-frame-rate mode for near-instant real-time feedback.
7. Dual high-quality upgraded antennas for stronger, more stable signal reception and transmission, ensuring consistent performance across the entire frequency band.
Specification:
| Camera | |
| Model: | Avatar HD Pro Camera |
| Image Sensor: | 1/1.8-Inch SonyStarvis Ⅱ sensor |
| Resolution: | 1080P/60fps; 1080P/100fps; 720P/120fps; 720P/60fps; |
| Ratio: | 16/9; 4/3 |
| Lens: | 8Mp |
| FOV: | 160° |
| Aperture: | F1.6 |
| Shutter: | Rolling shutter |
| Min.Illumination: | 0.00001Lux |
| Weight: | 9.5g |
| Dimensions: | 19*19*24mm |
| Coaxial Cable: | 140mm |
| Gyroflow: | supported |
| VTX | |
| Model: | Avatar GT |
| Communication Frequency: | 5.725-5.850 GHz |
| Transmitter Power (EIRP): | FCC: <30dBm, MAX:33dBm ; CE: <14dBm; |
| SRRC: | <20dBm; |
| MIC: | <25dBm |
| I/O Interface: | Micro SD card slot; JST1.0*4(power cable) |
| Supported SD Cards: | Micro SD (up to 256 GB) |
| Mounting Holes: | 25.5*25.5mm; 20*20mm |
| Dimensions: | 34*34*20mm |
| Recording: | 1080p/720p |
| Weight: | 41.6g (Antenna included) |
| Operating Temperature: | -10-40℃ |
| Channels: | 8 |
| Wide Power Input: | 11.1V-25.2V |
| Supported FC System: | Betaflight; Inav; Fettec; Kis; ArduPilot |
| OSD: | Canvas mode |
| Latency: | Average delay 22ms |
| Antenna: | 2(IPEX) |
| Note: | Check area for risk of use before use. |
Package Included:
1 x Walksnail Avatar GT KIT
1 x Quick Guide
2 x M2*4mm screws
2 x M2*5mm screws
2 x M2*6mm screws
2 x M2*5*0.5mm spacer
2 x SD card stickers
1 x 4pin power cord
