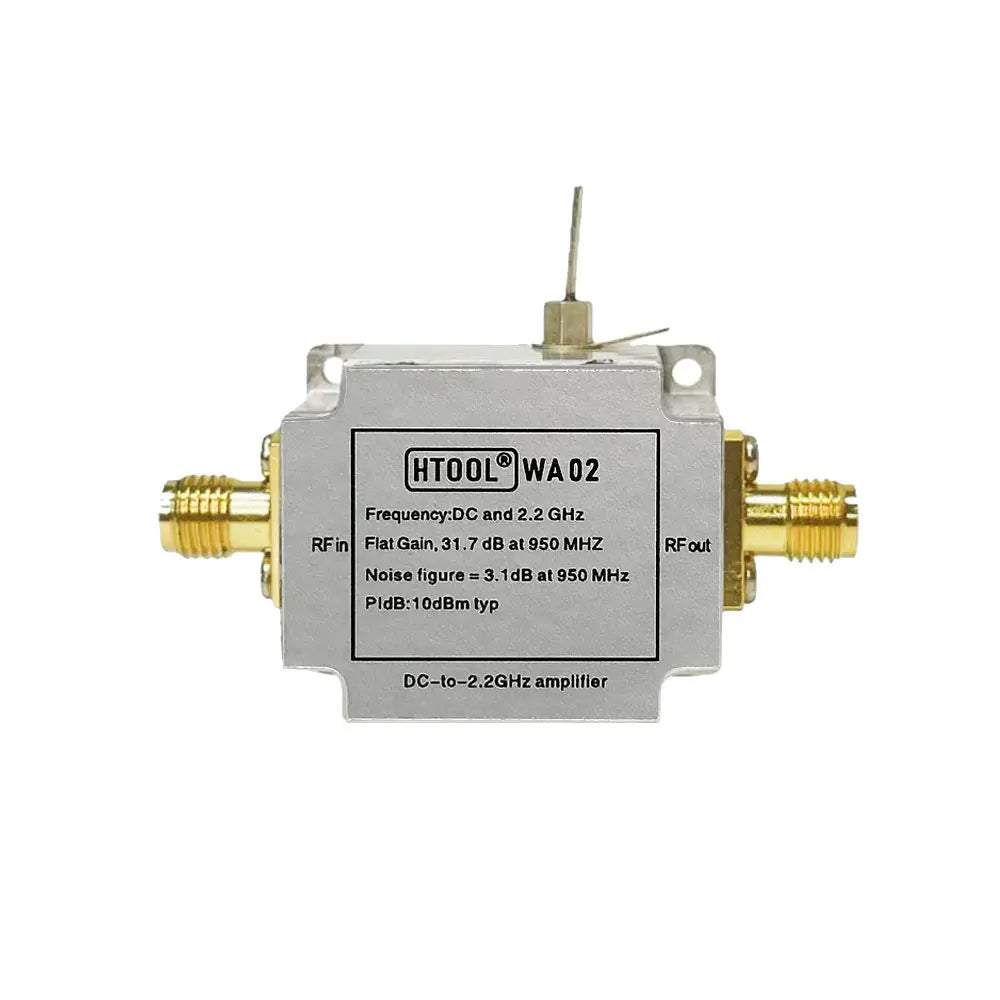

WA02 Amplifier DC to 2.2GHz Broadband Amplifier 31.7dB Gain Low Noise High Linearity 50 Ohm Integrated Stable Performance - Silver

$59.99

In Stock

Description

Specifications:

Frequency Range: 0 – 2.2 GHz

Gain: Up to 31.7 dB at 950 MHz

Operating Voltage: 5.0V

Operating Current: 24.0 mA

Reverse Isolation: >39 dB (up to 2150 MHz)

1dB Gain Compression Output Power: 10 dBm at 950 MHz

Noise Figure: 3.1 dB at 950 MHz

Dimensions: 2.9 × 2.4 × 1.1 cm

Net Weight: 18 g

Features:

1. Broad Frequency Compatibility: Supports signals across DC to 2.2 GHz, enabling versatile applications in various systems.

2. Optimized Gain Performance: Provides up to 31.7 dB gain at 950 MHz with high linearity for consistent amplification.

3. Low Noise Design: Features a noise figure of 3.1 dB at 950 MHz for enhanced signal quality.

4. Internally Matched to Standard Impedance: Designed with a 50Ω configuration for streamlined integration without extra components.

5. Superior Reverse Isolation: With isolation exceeding 39 dB, it minimizes interference and ensures stable performance in complex environments.

Package Included:

1 x Broadband Amplifier
