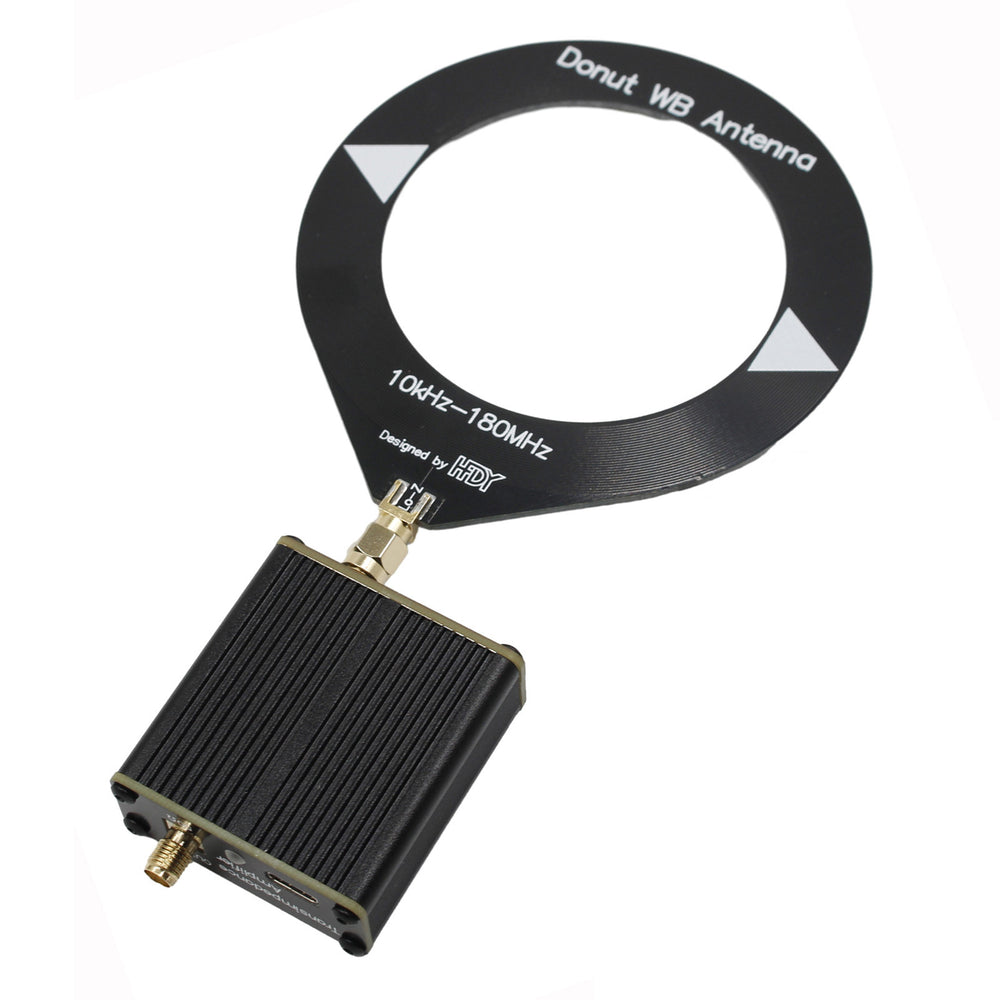

Upgraded Donut Wideband Antenna 10kHz-180MHz Low Impedance Converter SMA Male Type-C Charging 20 Hours Use For Radios SDRs Quansheng UV-k5 k6

Specifications:

Model: Upgraded Donut Wideband Antenna

Frequency Range: 10kHz-180MHz

Impedance Converter: Low Impedance

Connector: SMA Male (Inner Pin and Thread)

Net Weight (Antenna): 19g

Low Impedance Converter:

Frequency: 10kHz-180MHz

Charging Port: Type-C

Charging Current: 1A

Charging Voltage: 5V

Battery: Built-in 600mAh Lithium Battery (Approx. 20 hours of continuous use when fully charged)

Charging Time: 4 hours (Red light while charging, Green light when fully charged)

Net Weight (Converter): 56g

Features:

Wide Frequency Range: The antenna covers a broad 10kHz-180MHz range, making it suitable for various applications, including shortwave, aviation, FM, and AM reception.

No Tuning Required: Upgraded model eliminates the need for complex tuning; directly receive all frequencies without changing antennas.

Strong Compatibility: Works seamlessly with all radios, transceivers, SDRs, and other radio devices, including Quansheng UV-k5/k6.

Convenient Setup: Includes a low impedance converter for enhanced signal compatibility and easy setup with Type-C charging, delivering up to 20 hours of continuous use.

Lightweight and Portable: The antenna weighs just 19g, while the converter is 56g, making the entire setup portable and easy to carry.

Package Included:

Type A:

1 x Low Impedance Converter

1 x Storage Pouch

Type B:

1 x Low Impedance Converter

1 x Upgraded Donut Antenna

1 x Storage Pouch
