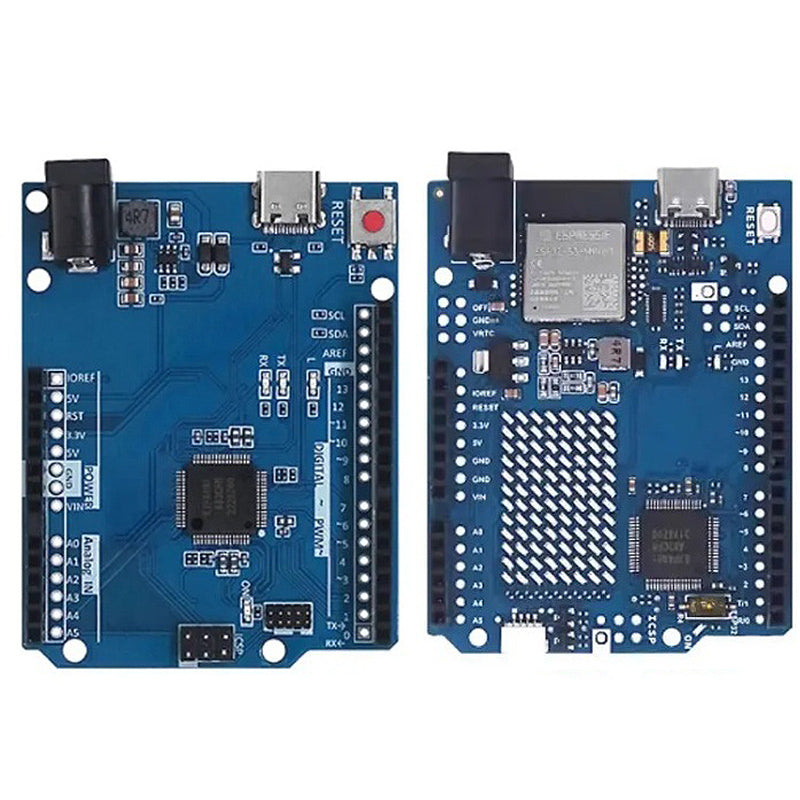

UNOR4 Development Board Improved Version Compatible with R4 WIFI/MINIMA Motherboard Microcontroller for Programming Learning
Description
Specifications:
4 Controller WiFi Version |
4 Minima |
|
Controller |
Arm cortex M4 |
Arm cortex M4 |
Storage |
5V |
5V |
Working Voltage |
4~18V |
4~18V |
Input Voltage |
48MHz |
48MHz |
Programming Port |
USB-C |
USB-C |
WiFi/bluetooth |
ESP32-S3-MINI |
- |
LED Matrix |
12x8(96 red LEDs) |
- |
Extra Connection |
Qwiic connection OFF Pinout VRTC Pinout |
- |
Number of Digital I/O Ports |
14 |
14 |
PWM Port Number |
6 |
6 |
ADC Port Number |
6 |
6 |
DAC Port Number |
1(12bit) |
1(12bit) |
SPI Port Number |
1 |
1 |
12C Port Number |
1 |
1 |
CAN Port Number |
1 |
1 |
Features:
1. Enhanced Compatibility: Fully compatible with official R4 features.
2. Extended Connectivity: Additional row of interfaces for convenient external access.
3. USB Port Flexibility (WiFi Version): USB port easily switchable between main communication chip and ESP32; no soldering required.
4. Simple Switching: Quick code switch for added convenience in the improved version.
Package Include:
1x Module Board
