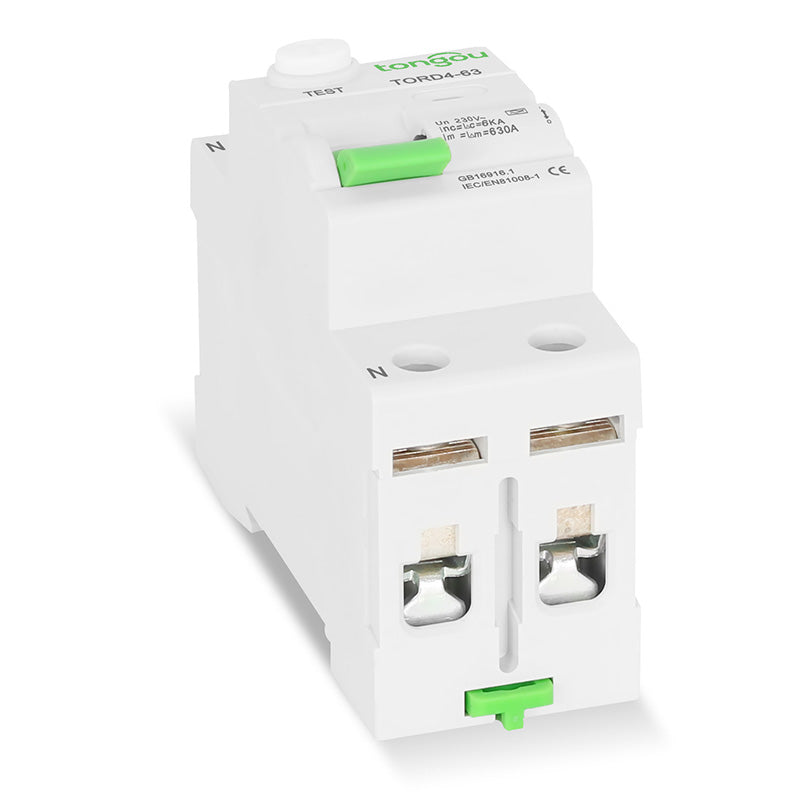

Type A RCCB RCD 2P 32A 40A 63A 6KA Electromagnetic Type Residual Current Circuit Breakers 30ma 100ma 300ma Differential Circuit Breaker

Specification:
Model: TORD4-63
Product Type: Residual Current Circuit Breakers (RCCB)
Poles: 2P
Rated Current (In): 63A
Rated Voltage (Un): 230V~
Rated Frequency: 50/60Hz
Rated Residual Operating Current (IΔn): 30mA
Rated Breaking Capacity (Inc): 6KA
Impulse Withstand Voltage: 6000V
Electromechanical Life: ≥ 20,000 cycles
Ambient Operating Temperature: -40°C to +85°C
Connection Terminal: Screw Terminal

Features:
1. Advanced Leakage Protection: Safeguards against dangerous electric shocks by automatically interrupting the circuit when a current leakage is detected, significantly enhancing personal and home safety.
2. Flame-Retardant Shell: The enclosure is made from high-quality thermosetting plastic that resists high temperatures and will not melt or combust, preventing the spread of fire.
3. Clear Status Visualization Window: A user-friendly indicator window shows the operational status at a glance—Red for "IN USE" and White for "CLOSED," eliminating any guesswork.
4. Superior Overvoltage Protection: Engineered to withstand impulse voltages up to 6000V, it effectively protects your valuable equipment from damage caused by sudden power surges.
5. Ergonomic D-Handle Design: The specially designed arc-shaped handle allows for comfortable and smooth operation, making it easy to manually switch the breakers on or off.
6. Extended Operational Lifetime: Precision manufacturing ensures a long-lasting mechanical life of over 20,000 operations, offering consistent performance and reliability that surpasses standard requirements.

Package Include:
1 x TORD4-63 2P Circuit Breakers
