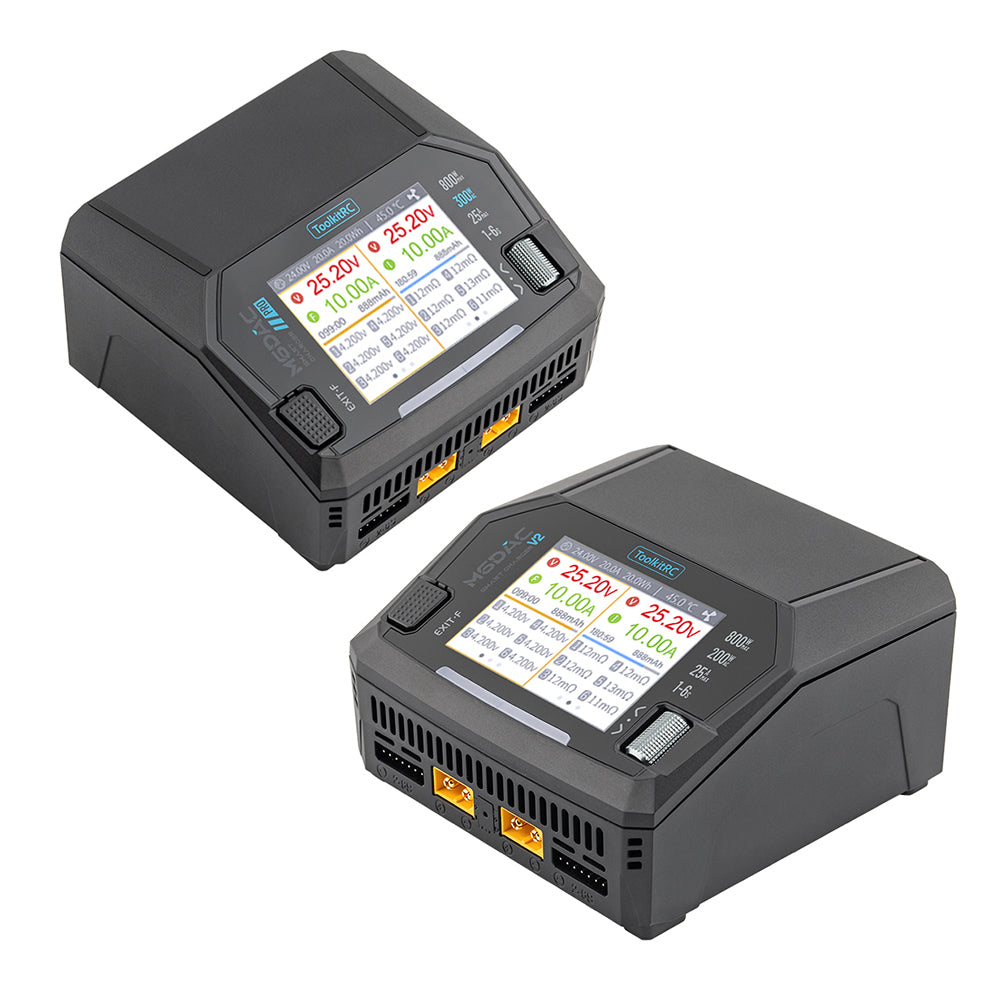

ToolkitRC M6DAC PRO M6DAC V2 18A AC200-300W DC800W Charger IPS 2.8" LCD 320×240p× for 1-6S LiPo LiHV LiFe Lilon LTO 1-16S NiMH 1-10S Pb Battery
Description
Specification:
Brand: ToolkitRC
Model: M6DAC PRO / M6DAC V2
Item Name: Charger
Model |
M6DAC PRO |
M6DAC V2 |
M6DAC |
General |
Product Size: 116×112×63mm Product Weight: 520g Packing Size: 164×135×68mm Packaging Weight: 670g LCD: IPS 2.8" LCD 320×240p× |
Product Size: 127*106*57 mm Product Weight:520g Pack Size: 158*134*63 mm Pack Weight: 700g LCD: IPS 3.5 inch LCD 480*320 Pixel |
|
Charger |
Input Voltage: AC 100-240V @MAX 330W DC 7-28V@MAX 32A |
Input Voltage: AC 100-240V @MAX 220W DC 7-28V@MAX 32A |
Input Voltage: DC 7.0-28.0V @MAX 30A AC 100-240V @ MAX 2.5A |
|
Type of Battery: LiPo LiHV LiFe Lilon LTO @1-6S NiMH @1-16S Pb@1-10S |
Type of Battery: LiPo LiHV LiFe Lilon LTO @1-6S NiMH @1-16S Pb@1-10S |
Type of Battery: Lipo LiHV LiFe Lion@1-6S NiMh @1-16S Pb @1-10S |
|
|
Charging Power: 1.0-16.0A @ 400W/CH, 28A@700W SYNC |
Charging Power: 1.0-16.0A @ 400W/CH, 28A@700W SYNC |
Charging Power: 0.1-15A @350W *2(Asynchronous mode) 0.1-25A @700W (Synchronous mode) |
|
|
Discharging Power: 1.0-16.0A @ 400W/CH Extra Discharge 1.0-16.0A @ 400W/CH Recycling 0.1-3.0A @ 15W/CH Normal |
Discharging Power: 1.0-16.0A @ 400W/CH Extra Discharge 1.0-16.0A @ 400W/CH Recycling 0.1-3.0A @ 15W/CH Normal |
Discharging Power: 350W@MAX 15A*2（Recycle mode) 15W@3A *2 (Normal mode) |
|
|
Power Output: 0.5-16.0A @1.0-28.0V @400W /CH |
Power Output: 0.5-16.0A @1.0-28.0V @400W /CH |
||
|
TYPEC Output: 65W MAX 20.0V 3.25A or Upgrade |
TYPEC Output: 65W MAX 20.0V 3.25A or Upgrade |
USBC Power: MAX 65W 3.25A @20.0V or Upgraded |
|
|
USB Protocol: PD3.0/PD2.0/PPS/QC4/QC3.0/QC2.0 AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC |
USB Protocol: PD3.0/PD2.0/PPS/QC4/QC3.0/QC2.0 AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC |
USBC Protocol: PD,QC,AFC,FCP,SCP,PE,SFCP,VOC |
|
Wireless Power: 10W |
None |
None |
|
Feature:
1. Dual-Channel Output with Optimized Power
Supports up to 800W DC and 300W AC, efficiently balancing power distribution across two ports for versatile charging needs. Handles LiPo, LiHV, LiIon, LiFe, LTO, NiMH, and Pb batteries simultaneously.
2. Wireless Charging Capability
The Pro version integrates convenient wireless charging technology enabling power delivery to compatible devices—eliminates cable clutter and enhances usability.
3. Real-Time Smart Display
Equipped with a 2.8” IPS LCD screen, it clearly displays real-time charging parameters at any angle. Ideal for monitoring voltage, current, and battery type effortlessly.
4. Compact Design with Enhanced Portability
Extremely space-saving design suitable for on-the-go charging setups. Small size without sacrificing performance ensures adaptability to various environments.
5. Comprehensive Safety Protections
Includes short circuit, current, voltage, temperature, and capacity protection along with flame-retardant casing. Delivers reliable performance for secure daily operation.
Caution：The UK and AU plug versions are actually shipped with EU plug, and we will send UK or AU adapters with them.
Package included:
1 x M6DAC Pro/V2 Charger
1 x AC Input Cable
1 x USB Cable
1 x Quick Manual
1 x Screen Protector
or
The UK and AU plug versions are actually shipped with EU plug,we will send UK or AU adapters
