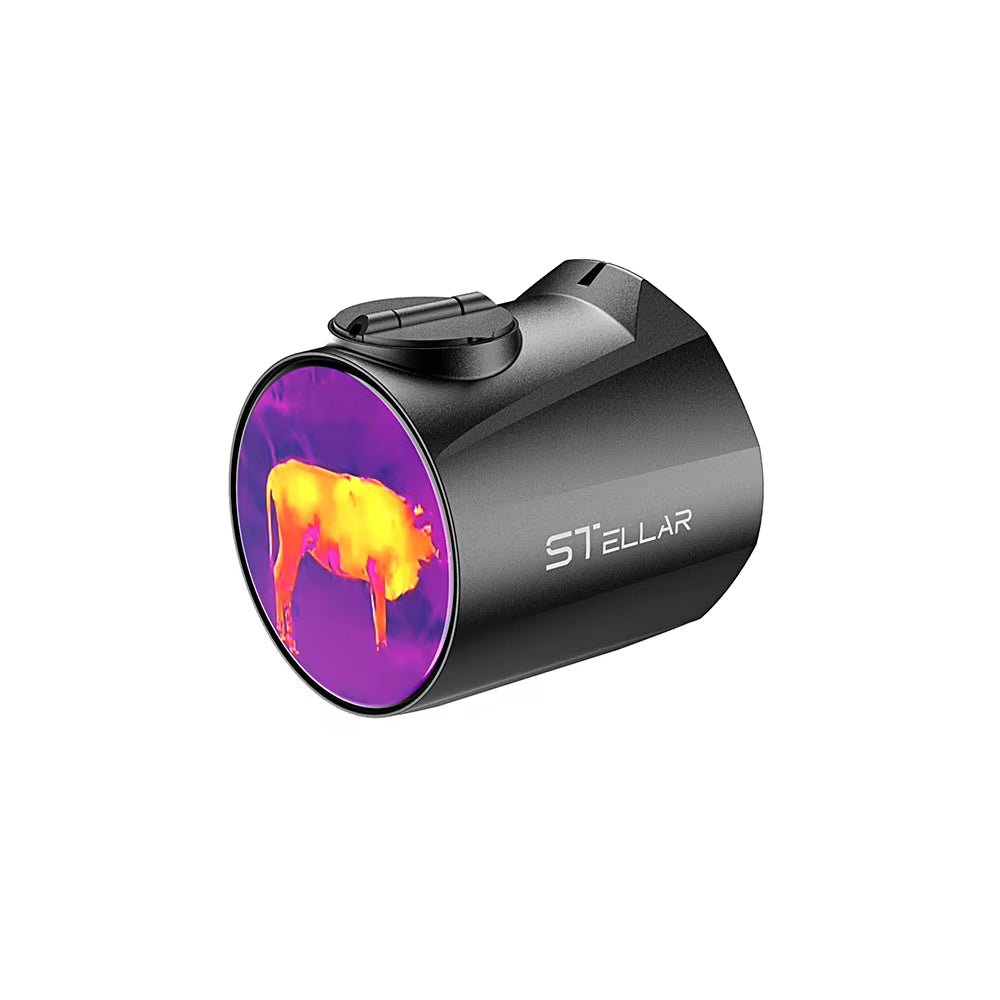

T3-Mini Portable Thermal Imager 256x192 Uncooled Focal Plane 13mm F0.9 Lens 25Hz 1.4-Inch OLED Infrared Night Vision Observation Device - Black

Specification

Overall dimensions: 52 x 48 x 51mm

Operating temperature: -20℃ to +50℃

Detector type: uncooled focal plane arrays

Resolution: 256x192

Frame rate: 25Hz

Pixel size: 12um

Response wavelength: 8um to 14um

Lens focal length: 13mm, F0.9

Range: ≤700m

Field of view: 13.5 x 10.1°

Battery type: 16340

Working hours: ≥4h (25℃)

Display screen: 1.4-inch, 466x466, OLED

Brightness: yes

Ribbon: black hot, white hot, red hot, fusion

Video recording: onboard video recording

Photograph: yes

Cursor indicator: yes

Built-in storage capacity: built-in EMMC

Impact vibration: 1000g/0.4ms

Features

1) 256x192 uncooled focal plane array with 25Hz frame rate for clear thermal viewing.

2) 13mm F0.9 lens with 13.5 x 10.1° field of view for outdoor observation.

3) 1.4-inch 466x466 OLED screen supports clear image display.

4) Supports onboard video recording, photograph, and cursor indicator functions.

5) Compact 52 x 48 x 51mm body with 16340 battery and ≥4h working hours.

Package Included

1 x Thermal Imager Kit
