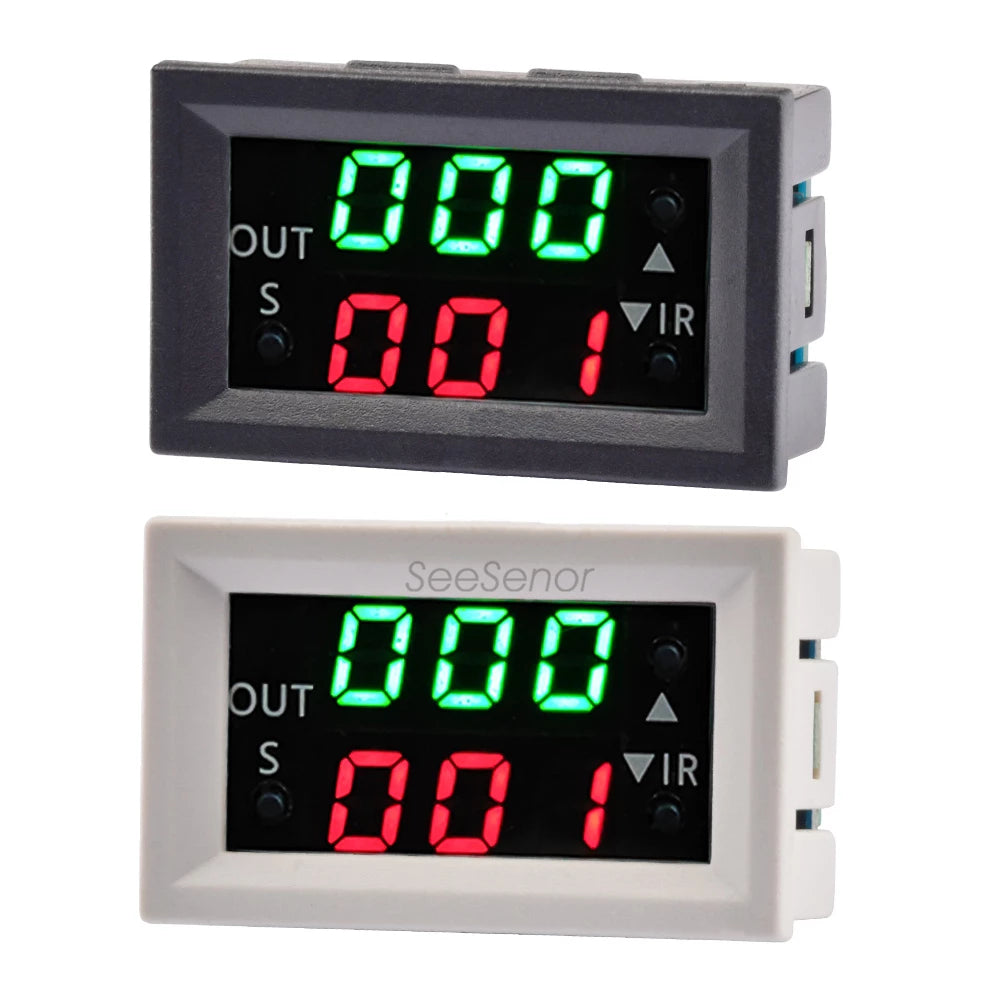

    T2401-O T2401-N DC 12V Dual LED Display Time Relay Module Digital Time Delay Relay Cycle Timer Switch Control Module Active/Passive Output
    T2401-O T2401-N DC 12V Dual LED Display Time Relay Module Digital Time Delay Relay Cycle Timer Switch Control Module Active/Passive Output T2401-O T2401-N DC 12V Dual LED Display Time Relay Module Digital Time Delay Relay Cycle Timer Switch Control Module Active/Passive Output T2401-O T2401-N DC 12V Dual LED Display Time Relay Module Digital Time Delay Relay Cycle Timer Switch Control Module Active/Passive Output

    T2401-O T2401-N DC 12V Dual LED Display Time Relay Module Digital Time Delay Relay Cycle Timer Switch Control Module Active/Passive Output

    $6.99
    In Stock

    Description



    T2401-O (Active output)
    Product selling point:
    1: Parameter setting is simpler
    2: Small and exquisite appearance
    3: Direct output type
    4: Wide application
    5: Timing range: 0~999 (seconds, minutes, hours) Minimum unit: 1 second

    Parameter:
    Product Model: T2401-O
    Product weight: 30g
    Product size: 48X29X34mm
    Mounting opening: 45.5x26.1mm
    Timing range: 0~999 (seconds, minutes, hours) Minimum unit: 1 second
    Technical parameters: DC12V 2OA MAX 240W MAX
    Working humidity: 35%~85%
    Working temperature: -10~60℃
    Size unchanged, compatible with installation, convenient for direct output wiring, green start and red stop, easy to set up, appearance patent

    Code menu introduction:
    Press and hold the S button for 6 seconds to enter the code menu
    Mode setting demo
    Double-click the S key to enter the parameter setting mode

    Safety warning:
    The output is active, connect the load and then power on to avoid short circuit


    T2401-N (No output)

    Description:

    1: Wide range of applications

    2: Exquisite appearance

    3: Small size

    4: Simple to use

    5: Passive output


    Parameter:

    Contacts de-energized No output

    Can be connected to loads other than 12V

    Dimensions: 47.6x28.6x33.2mm

    Embedded installation

    Mounting opening: 45x26.1mm

    Green on and red off and the timing display starts. The stop timer unit is easy to set independently and easy to use

    1-way normally open relay control on-off

    There is a setting lock to prevent accidental touch

    The timing range is adjustable from 0 to 999 (seconds, minutes, hours)

    Minimum timing unit: 1 second

    Timing error: ±4.5%

    Integrated crystal oscillator

    Power-on auto-run power-off save settings

    Working voltage: DC12V

    Load power DC12V 20A240W AC220V 1500W ( max )

    Loop switch supported

    Alternate 1 switch is not supported


    Package included:

    1 x DC12V delay dual display digital time relay module
