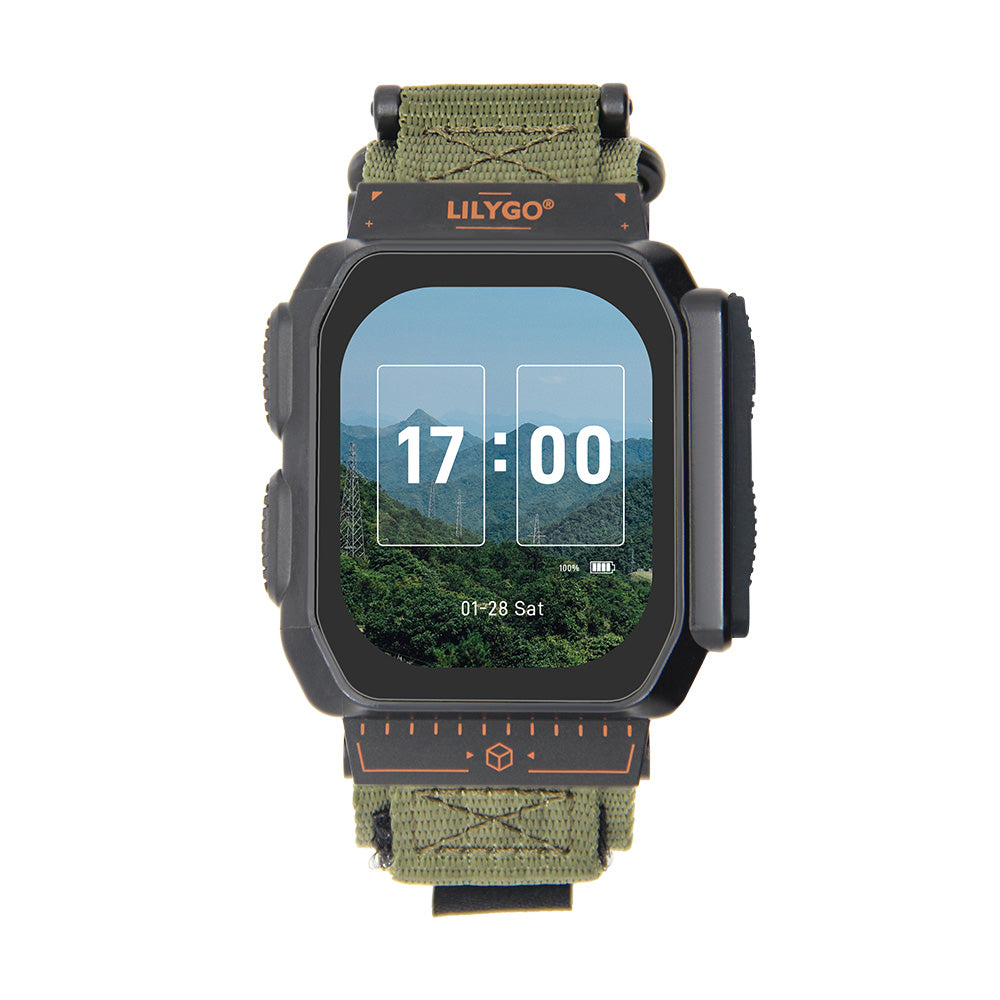

T-Watch Ultra Watch ESP32-S3 Development Board 2.06 Inch AMOLED 410x502 Capacitive Touch Wi-Fi BLE 5.0 LoRa SX1262 16MB Flash 8MB PSRAM NFC GNSS Programmable Watch
$122.99
In Stock
Description
Specifications:
MCU: ESP32-S3
Flash: 16MB
PS RAM: 8MB
Platform: ArduinoIDE, ESP-IDF, VS Code, Micropython
Wireless: Wi‑Fi 802.11 b/g/n; BLE V5.0
Onboard Functions: PMU Microphone, MAX98357A, RTC, NFC, Vibration Motor, SD Card, GNSS, Self-learning AI
LoRa Transceiver: SX1262
DRV2605: Haptic Driver Motor for ERM and LRA
AXP2101: Highly Integrated Power Management Unit
Dimension: 49 x 63.5 x 22 mm
Battery: 1100mA (4.07 Wh)
Display: 2.06 inch CO5300 (QSPI) AMOLED with CST9217 capacitive touch
Resolution: 410 x 502
Display Colors: 16.7M
Features:
- ESP32-S3 with 16MB Flash and 8MB PS RAM; supports -IDE, ESP-IDF, VS Code, MicroPython.
- 2.06" CO5300 (QSPI) AMOLED with CST9217 touch, 410x502 resolution and 16.7M colors.
- Multiple wireless options: Wi‑Fi 802.11 b/g/n, BLE 5.0, and LoRa via SX1262.
- Onboard functions include PMU Microphone, MAX98357A, RTC, NFC, vibration motor, SD card, GNSS, self-learning AI.
- AXP2101 power management and DRV2605 haptics; 1100mA (4.07 Wh) battery in a 49 x 63.5 x 22 mm body.
Package Included:
1 x LILYGO T‑Watch Ultra
