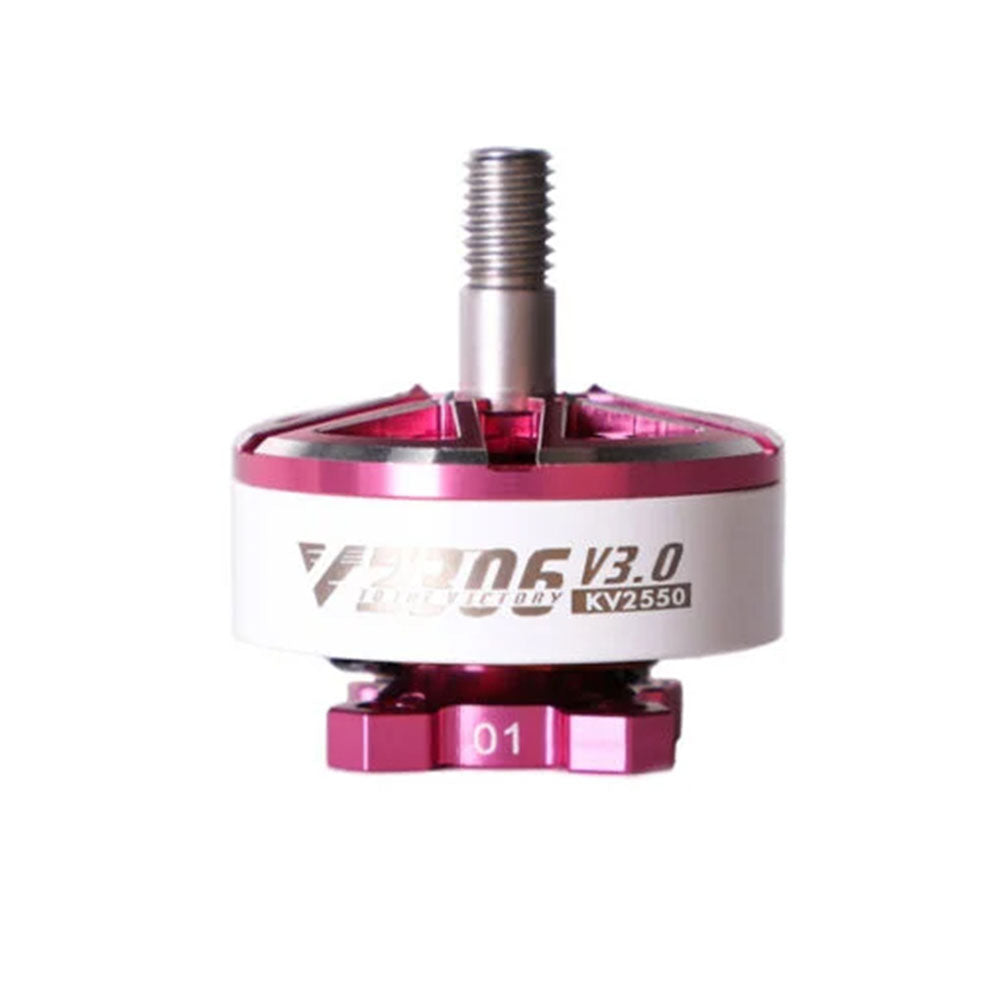

Velox V3 2306 1750KV 1950KV 6S / 2550KV 4S Brushless Motor 5mm Shaft for Cinematic Freestyle RC Drone FPV Racing
Description
- Motor Size: 21XX-23XX
- Motor KV: 2500-3000KV
- RC Drone Spare Parts: Motor
Specifications:
Model: Velox V3 2306
Name: 2306 1750KV 1950KV 6S / 2550KV 4S Brushless Motor
KV: 1750KV / 1950KV / 2550KV ( Optional)
Configuration: 12N14P
Shaft Diameter: IN: 4mm; OUT: 5mm
Lead: 20# 150mm
| KV | 1750KV |
1950KV |
2550KV |
| Color | Purple | Green | Pink |
| Input Voltage | 6S | 6S | 4S |
| Idle Current (10V) |
0.85A |
1.3A |
1.95A |
| Max Power (60s) |
820.7W |
976W |
533.7W |
| Peak Current (60s) |
34.9A |
41.7A |
34.5A |
| Weight (Including Cable) |
33.8g |
33.7A |
32.6g |
Features:
Versatile Performance: Choose between the 1750Kv for smooth low-torque flying, the 1950Kv for heart-pumping acrobatics, or the 2550Kv for optimized 4S battery performance.
High-Quality Material and Design: The motor showcases high-temperature resistant single windings and a sleek angular base for durability.
Precision Engineered Magnets: Features high-spec curved magnets for excellent magnetic field concentration and power output.
Secure Propeller Grip: Comes with a sharp propeller lock grip on top, ensuring a secure connection to your drone.
Color Variants: Available in Purple, Green, and Pink colors, making your drone look as good as it flies!
Package Included:
1x T-Motor Velox V3 2306 Brushless FPV Motor
1x Parts Bag
