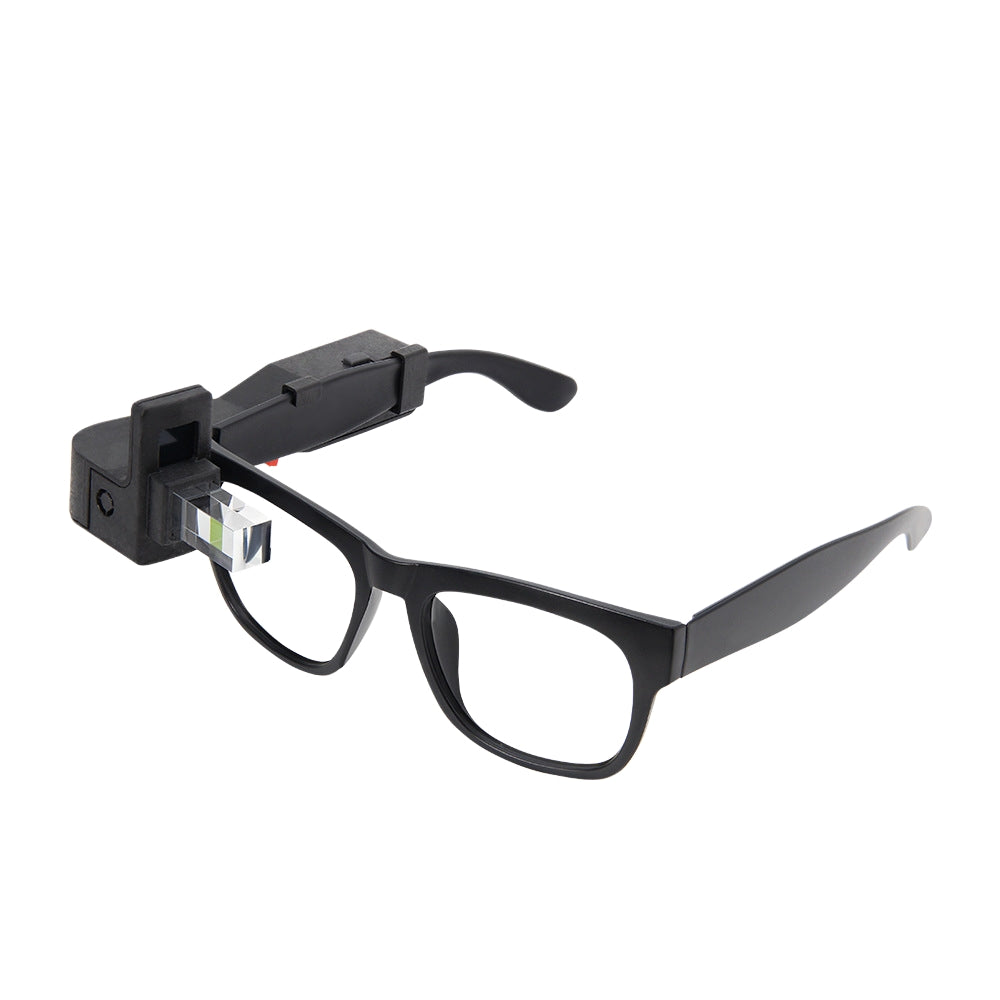

T-Glass ESP32-S3 AR Smart Glasses 11 inch 294x126 AMOLED Display 2.4GHz WiFi Bluetooth 5 Programmable AI Sensor Heads-Up Glasses Module - Black

Specification:
Product name: T‑Glass ESP32‑S3 Smart Glasses
MCU: ESP32‑S3 FN4R2, Flash: 4MB, PSRAM: 2MB (QSPI)
Wireless: 2.4 GHz Wi‑Fi, Bluetooth 5 (LE)
Display: 1.1" LTPS AMOLED JD9613, resolution 294 × 126 px, visible area 126 × 126 px
Optical module: prism display, eye–prism distance about 25 mm
Sensor: BoschBHI260AP AI smart sensor with 6‑axis IMU
Interfaces: USB Type‑C for charging/programming (5V / 500 mA)
Functions on board: microphone, RTC, touch button, vibration pin, BAT ADC, boot pin
Shell material: 3D‑printed housing
Size of frame: approx. 140 mm width
Size of module: approx. 111 mm length x 67 mm width

Features:
1. Programmable development platform, fully open for custom firmware and display content.
2. Heads‑up prism display shows time, notifications or user‑defined data within the lens area.
3. Built‑in AI sensor (BHI260AP) for motion tracking, gesture recognition and activity analysis.
4. Integrated microphone and RTC for voice‑interactive and time‑based applications.
5. Compact ESP32‑S3 module with Wi‑Fi & Bluetooth 5 for IoT and wearable projects.
6. Low‑cost AMOLED solution, ideal for prototypes, teaching and DIY AR experiments.

Package Includes:
1 x T‑Glass ESP32‑S3 Smart Glasses
