T-Echo Battery Pack 2400mAh Extension Shield With IMU BHI260AP Microphone 10Pin Expansion Port And ABS Case For T-Echo

Specification

Case Material: ABS

Dimensions: 89mm x 53mm x 27mm

Battery Capacity: 2400mAh

Onboard IMU: BHI260AP

Onboard Microphone: Yes

Expansion Port: 10pin (2.54mm pitch)

IMU Interface: SDA (P0.26), SCL (P0.27)

Microphone Interface: Data (P0.6), Clk (P0.8), LR sel (P0.15)

Features

1. Extended Power Supply: Powers your T-Echo for longer durations with a large-capacity, integrated 2400mAh battery.

2. Integrated IMU: Features an onboard BHI260AP Inertial Measurement Unit, enabling advanced motion-based applications and orientation awareness.

3. Built-in Microphone: Equipped with an onboard microphone, perfect for projects that require audio input or voice command functionality.

4. Custom Expansion: A reserved 10-pin expansion port allows for easy integration of custom modules, unlocking unlimited possibilities for your projects.

5. Seamless Integration: Designed as a "backpack" extension, it perfectly fits the T-Echo main board within a compact and protective enclosure.

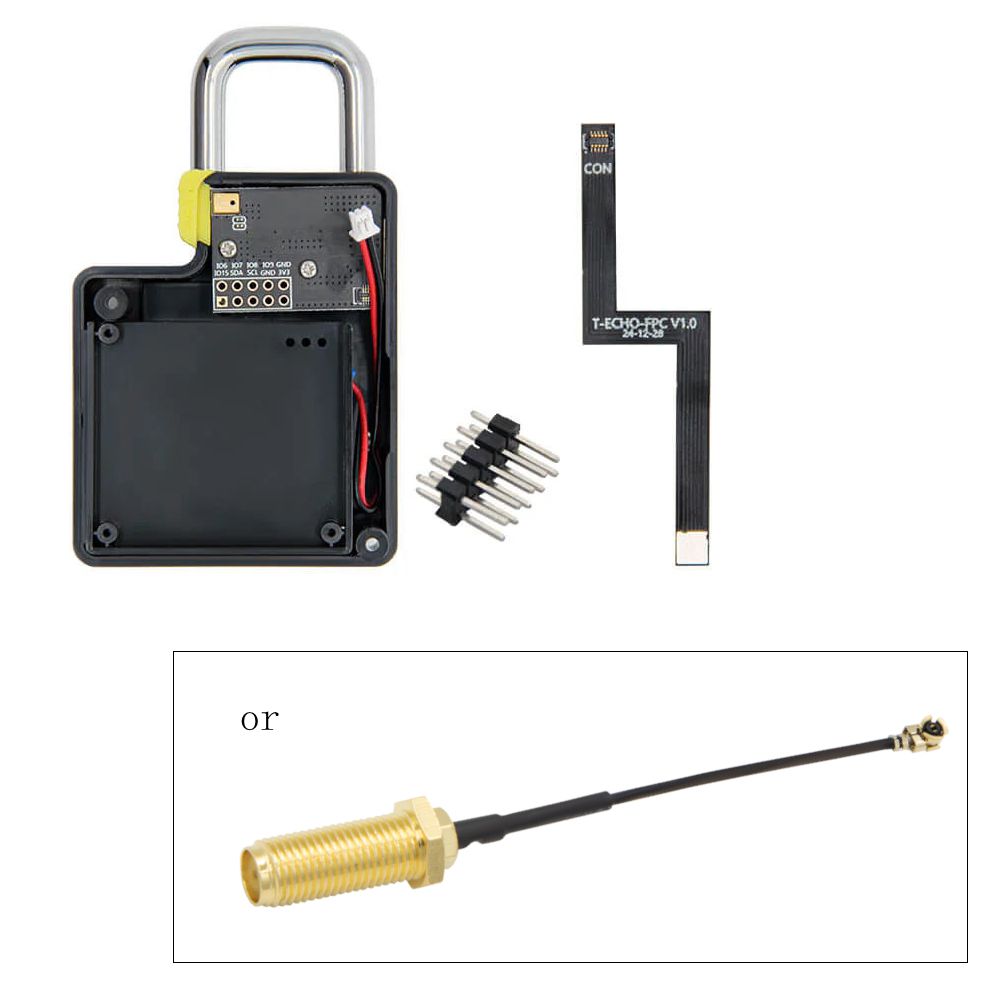

Package Included

Package 1:

1 x T-Echo Battery Pack

1 x Pin

1 x FPC expansion interface cable

or

Package 2:

1 x IPEX to SMA cable only
(The T-Echo and antenna are not includes, for reference only)
