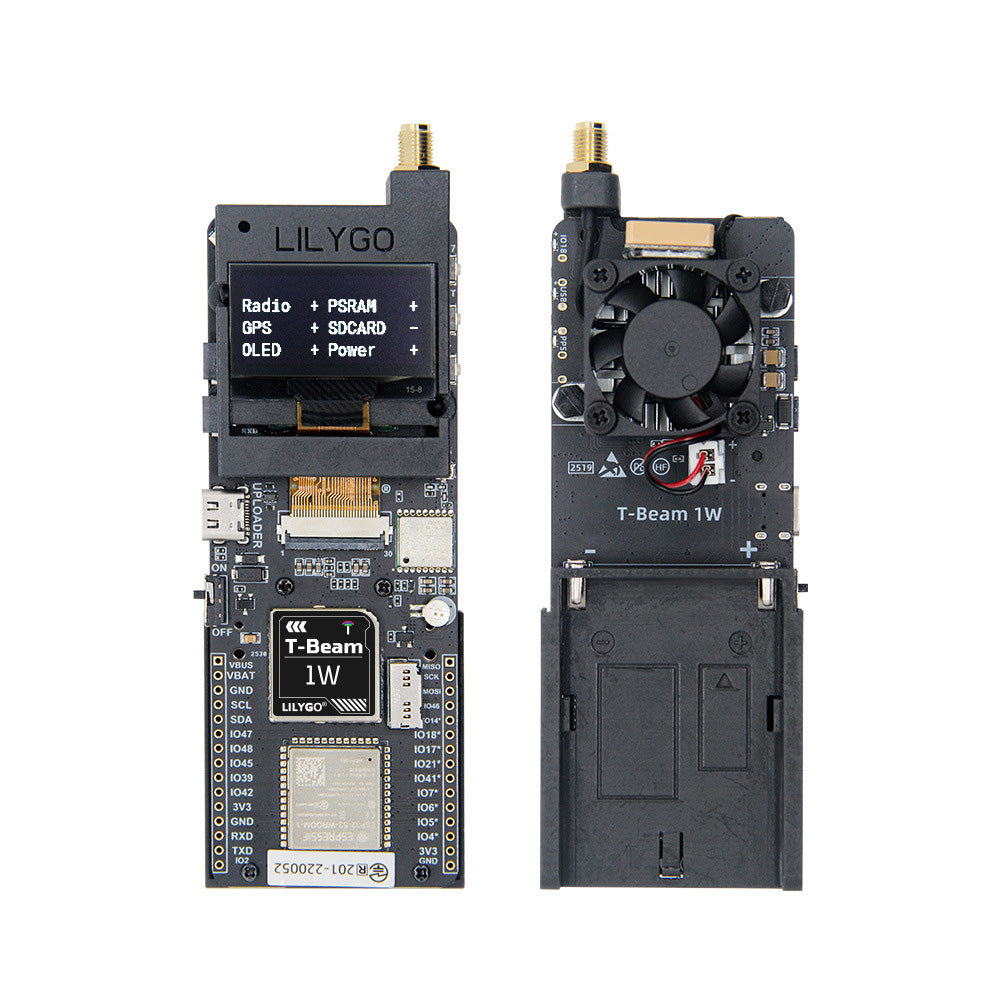

    LinkMejor T-Beam 868MHz 1W ESP32-S3 LoRa GPS Module SX1262 1.3-Inch SH1106 OLED Wi-Fi & Bluetooth 5 AXP2101 F550 Battery Compatible
    LinkMejor T-Beam 868MHz 1W ESP32-S3 LoRa GPS Module SX1262 1.3-Inch SH1106 OLED Wi-Fi & Bluetooth 5 AXP2101 F550 Battery Compatible LinkMejor T-Beam 868MHz 1W ESP32-S3 LoRa GPS Module SX1262 1.3-Inch SH1106 OLED Wi-Fi & Bluetooth 5 AXP2101 F550 Battery Compatible LinkMejor T-Beam 868MHz 1W ESP32-S3 LoRa GPS Module SX1262 1.3-Inch SH1106 OLED Wi-Fi & Bluetooth 5 AXP2101 F550 Battery Compatible LinkMejor T-Beam 868MHz 1W ESP32-S3 LoRa GPS Module SX1262 1.3-Inch SH1106 OLED Wi-Fi & Bluetooth 5 AXP2101 F550 Battery Compatible LinkMejor T-Beam 868MHz 1W ESP32-S3 LoRa GPS Module SX1262 1.3-Inch SH1106 OLED Wi-Fi & Bluetooth 5 AXP2101 F550 Battery Compatible LinkMejor T-Beam 868MHz 1W ESP32-S3 LoRa GPS Module SX1262 1.3-Inch SH1106 OLED Wi-Fi & Bluetooth 5 AXP2101 F550 Battery Compatible LinkMejor T-Beam 868MHz 1W ESP32-S3 LoRa GPS Module SX1262 1.3-Inch SH1106 OLED Wi-Fi & Bluetooth 5 AXP2101 F550 Battery Compatible LinkMejor T-Beam 868MHz 1W ESP32-S3 LoRa GPS Module SX1262 1.3-Inch SH1106 OLED Wi-Fi & Bluetooth 5 AXP2101 F550 Battery Compatible

    T-Beam 868MHz 1W ESP32-S3 LoRa GPS Module SX1262 1.3-Inch SH1106 OLED Wi-Fi & Bluetooth 5 AXP2101 F550 Battery Compatible

    $66.59
    In Stock

    Description


    Specifications:
    MCU: ESP32-S3FN8 dual-core LX7 microprocessor
    Wireless: 2.4 GHz Wi‑Fi & Bluetooth 5 (LE)
    LoRa module: SX1262 (868MHz )
    Flash: 16 MB
    PSRAM: 8 MB
    PMU: AXP2101
    Display: 1.3-inch SH1106 OLED, I2C, 128x64
    Board functions: Boot (IO00), Reset, IO03
    Interfaces/expansion: GPS, TF Card, QWIIC, LoRa antenna port, GPS antenna port, USB
    Power input: USB 5V 500 mA
    Dimensions: 133 x 43 x 27 mm
    Battery: Compatible with F550 battery (package is not included, image for reference only)

    Features:
    1. ESP32-S3FN8 dual-core with 2.4 GHz Wi‑Fi and Bluetooth 5 LE; 16 MB Flash + 8 MB PSRAM; Arduino/PlatformIO support.
    2. SX1262 LoRa radio with external antenna interface for long-range links.
    3. Integrated GPS with dedicated antenna interface for location-enabled projects.
    4. 1.3-inch SH1106 OLED (I2C, 128x64) for clear on-device status.
    5. AXP2101 power management, USB 5V/500 mA input, F550 battery compatible (not included), QWIIC and TF card expansion, onboard Boot/Reset.

    Package included:
    1 x T-Beam 1W
    1 x Antenna
    2 x Pin Headers
