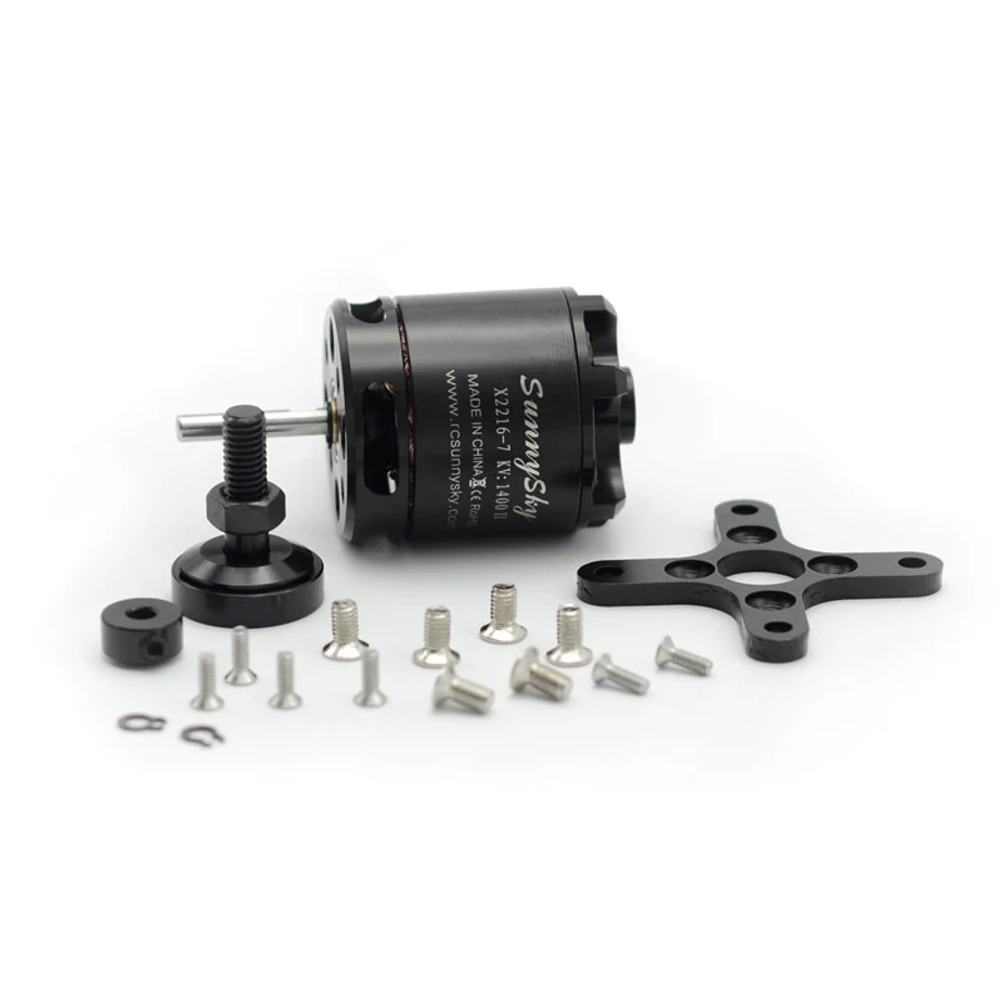

SunnySky X2216 Motor with 22mm Stator Diameter and 16mm Stator Thickness
Description
The SunnySky X2216 Motor is a high-performance motor designed for RC enthusiasts, featuring a 22mm stator diameter and 16mm stator thickness.
- Model: X2216
- Motor KV (rpm/v): 1100KV, 1250KV, 1400KV, 2400KV (optional)
- Stator Diameter: 22mm
- Stator Thickness: 16mm
- Rotor Diameter: 27.5mm
- Shaft Diameter: 3.175mm
- No. of Stator Slots: 12
- No. of Rotor Poles: 14
- Body Length: 36.5mm
- Body Length (Without Shaft): 34mm
- Max Lipo Cell: 2-4S
Features include CNC milling for a hollow-designed appearance that ensures good heat dissipation and reduced weight. The motor uses a stainless steel solid shaft made of 420 stainless steel material imported from Japan, which is heat-treated for high strength and resistance to bending and breaking. The top and bottom caps are made of 6061T6 aviation aluminum alloy, providing high hardness and strength. Imported NMB bearings from Japan offer longer life and quiet, stable operation. The motor is hand wound for a tight, neat coil structure that enhances continuous power output.
What's included: 1 x SunnySky X2216 Motor.
