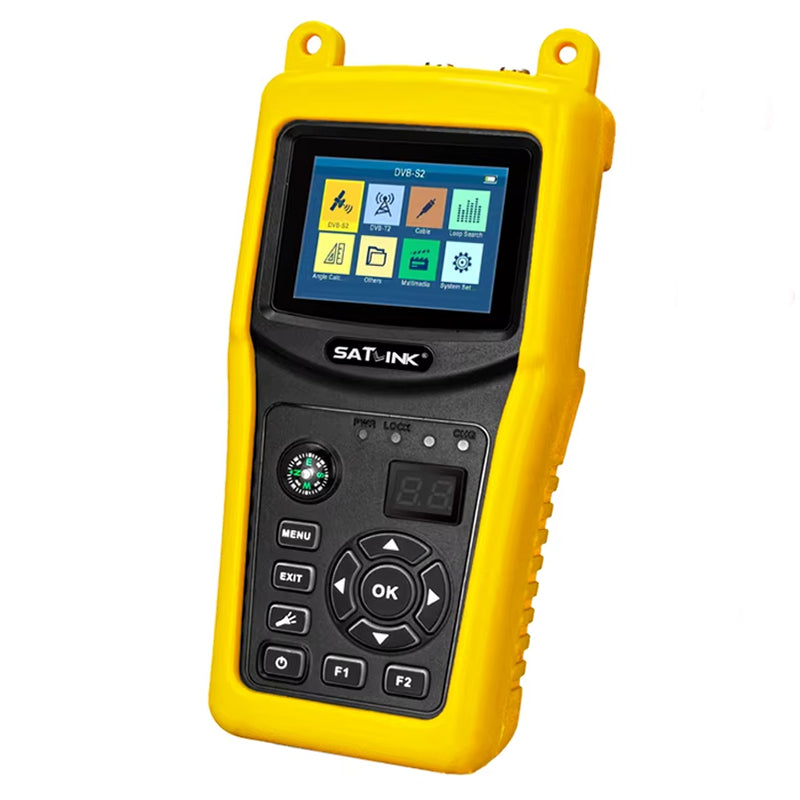

ST-5032 Satellites Finder Meter Support DVB-S2/S DVB-T2/T DVB-C Cable Signal Finder Better VF-6800P WS-6933 V8 Finder2

Specifications:

TRANSMISSION STANDARDS	DVB-S2/S, DVB-T/T2, J83A/C
SATELLITEs INPUT/DEMODULATION	Connector Type: F Type Input Frequency: 950 to 2150 MHz Signal Input Level: 0 ~ 80 dBm Band Switch Control: 22KHz LNB Supply: 13V/18V, IMax 350mA Demodulation Type: QPSK, 8PSK, 16APSK Symbol Rate: 2<Rs<45Mband(SCPC/MCPC)
DVB-T/T2 INPUT/DEMODULATION	Connector Type: F Type Input Frequency: 48 to 862 MHz Signal Input Level: 0 ~ -80 dBm Demodulation Type: 16QAM, 64QAM, 256QAM (DVBT2)
J83A/C INPUT/DEMODULATION	Connector Type: F Type Input Frequency: 48 to 862 MHz Signal Input Level: 0 ~ -67 dBm Demodulation Type: 64QAM, 256QAM
LCD FEATURES	LCD Type: TFT Transmissive Number of Dots: 320 (RGB) x 240 LCD Screen: 2.4"
DATA SERVICE PORT	Connector: USB Data Protocol: USB2.0 interface File Management System: NTFS, FAT32 File Format: wma, mp3, avi, jpg, jpeg, bmp etc
POWER SUPPLY	Li-ion Battery: 7.4V/2600mAh Adapter: Output: DC12V/1A, Input: 100~240VAC 50/60Hz Power Consumption: Max. 10W
PHYSICAL CHARACTERISTICS	Size (W x D x H): 17 x 8 x 4 (cm³) Net Weight: about 0.7kg

Features:

1. 2.4inch High Definition TFT LCD touch screen
2. MPEG-2/H.264 Hardware decoding
3. Fully DVB Mode, MPEG-2/MPEG4 compliant
4. Digital meter for signal strength and quality
5. Small case

Package Include:

1x Satellites Finder Meter
