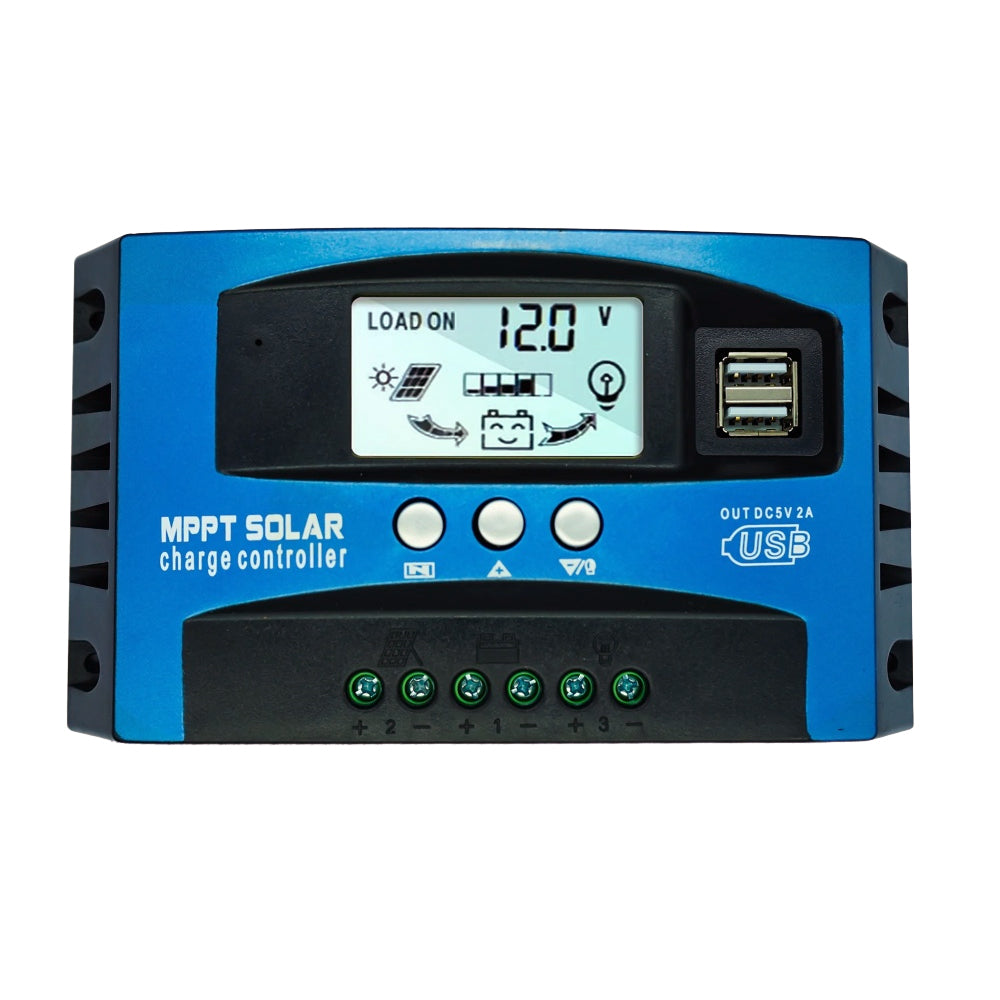

Solar Charge Controller MPPT Technology 12V 24V 60A 80A 100A Dual USB LCD Display Battery Regulator Overcharge Protection Temperature Compensation

Specifications:
Battery Voltage: Automatically adapts to 12V/24V systems.
Output Current: 60A / 80A / 100A.
USB Output: 2 way USB output, 5V/2.5A
Self-consume: <10mA
Operating temperature: -35℃~60℃
Display: LCD screen with real-time data.
Charging Technology: Advanced MPPT tracking with 99% efficiency.
Battery Compatibility: Supports lead-acid and lithium batteries.
Temperature Compensation: Automatic adjustment of charging voltage based on ambient temperature.
Protection Features: Reverse polarity, short circuit, overload, open-circuit, and thunder protection.
USB Output: Dual USB port for auxiliary devices.

Features:
1.Advanced MPPT Efficiency
Harness the power of cutting-edge MPPT technology with a detection capability that maximizes charging current and boosts energy transfer, achieving up to 99% tracking efficiency for optimal performance.
2.Comprehensive Battery Safeguards
Protects your battery system with multi-layer features, including overcharge prevention, discharge protection, reverse polarity safeguards, and reverse charging block during nighttime operation.
3.Versatile Compatibility
Designed to auto-recognize 12V/24V battery setups, and compatible with both lead-acid and lithium battery types, providing flexibility for diverse renewable energy systems.
4.Reliable Charging Management
Employs efficient 3-stage PWM technology to optimize charging processes, extend battery lifespan, and enhance overall energy system reliability for extended use.
5.Enhanced System Visibility
Features an LCD screen to accurately display real-time data such as voltage, current, temperature, and other key parameters while ensuring easy operation and monitoring.

Package Included:
1 x MPPT Solar Charge Controller
