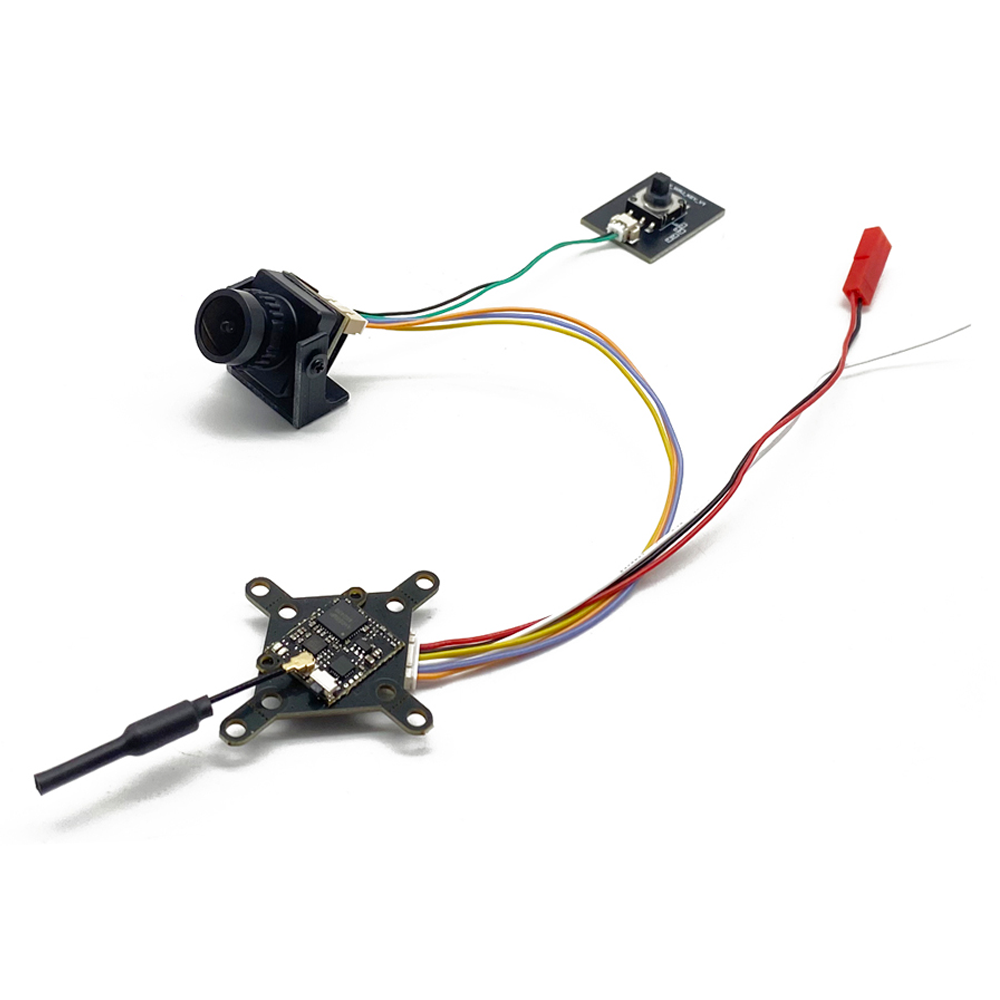

SLONWAKE 5.8G 48CH Pit VTX 25mW 100mW 200mW 500mW Adjustable FPV Transmitter with CMOS 1200TVL FPV Camera for RC FPV Drones RC Cars

This product can be used in FPV systems, such as remote control cars and remote control drones

Feature

1. 5.8G 48CH Full-Band Compatibility Covers all 5.8GHz FPV channels, seamlessly matching most goggles/receivers for multi-pilot flights or diverse drone setups.
2. 5-Speed Adjustable Power (25/100/200/500mW/Pit) Switch power levels to fit scenarios: Pit mode for safe indoor testing, 500mW for long-range outdoor flights—balances signal stability and compliance.
3. 1200TVL HD Clear Imaging 1/4" CMOS sensor with 1200TVL resolution (3.0μm pixel size) + 2D DNR noise reduction delivers sharp, detailed visuals for precise navigation.
4. 100° Wide FOV & Low-Light Performance 100° horizontal/70° vertical FOV eliminates blind spots; 0.05Lux min illumination ensures clear imaging in dim environments (e.g., dusk, shade).
5. Ultra-Wide Voltage Compatibility VTX (7-24V) + Camera (5-40V) works with 2S-6S batteries, fitting most RC drones/airplanes without extra adapters.
6. 4 Universal Mounting Options 16×16/20×20/25×25/30×30mm installation holes—compatible with standard drone frames, enabling easy DIY installation.
7. Plug-and-Play Versatility Supports PAL/NTSC auto-switching, 16:9 aspect ratio, and auto electronic shutter—no complex menu setup, ideal for beginners and pros alike.
8. Rugged Wide-Temperature Design Operates from -20℃ to 70℃, withstanding extreme outdoor conditions; compact 19×19mm camera size saves space for tight builds.

Specification:

VTX Transmitter

FPV Camera

Note:
- Camera parameters can be adjusted; but can not support changing resolution.
- The reverse connection of input and output will directly cause the transmission to burn out. Please check it before wiring.

Package included:
1x 500mW VTX with 1200TVL Camera Kit
