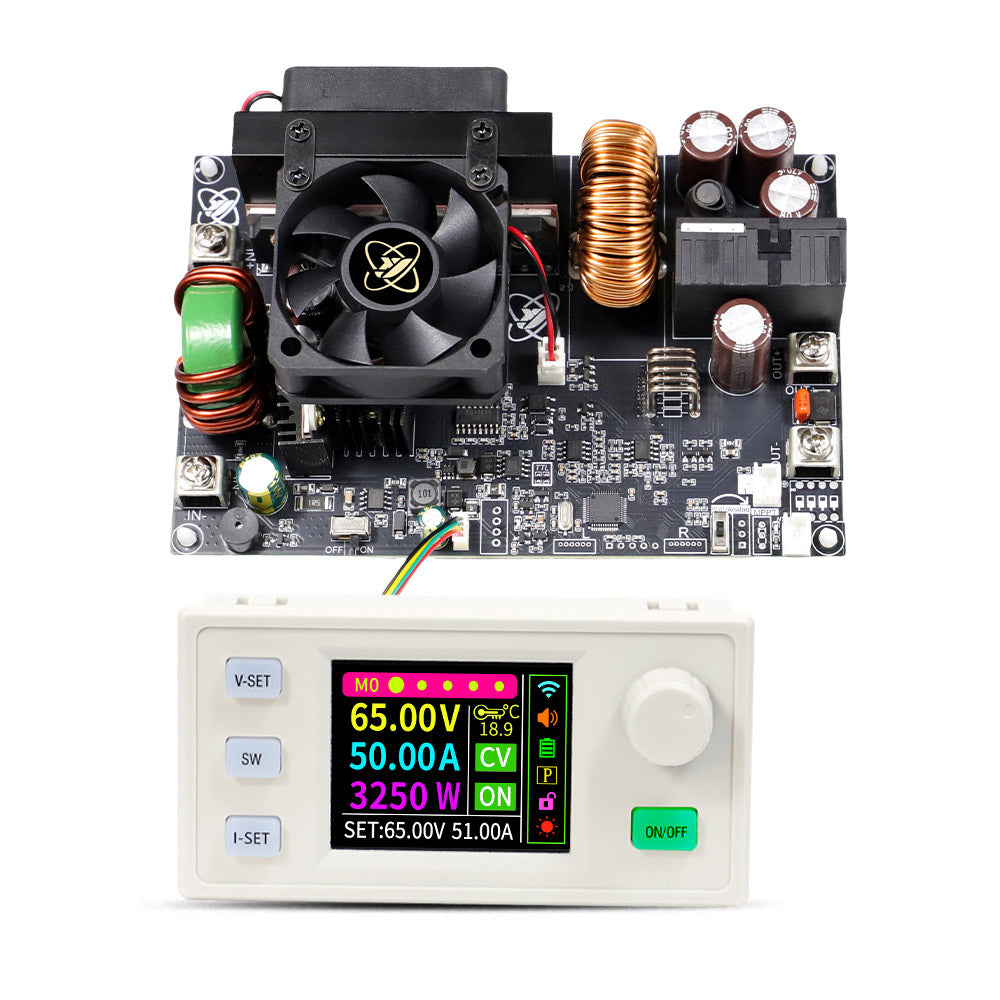

Sinilink XY6550S CNC DC Power Supply Module 65V/50A/3250W Adjustable High Precision MPPT Solar Charging LCD Display

Product Name: DC Buck-Power Supply

Model: XY6550S

Input Voltage Range: 12.00V - 75.00V

Output Voltage Range: 0.00V - 65.00V

Output Current Range: 0.00A - 50.00A

Power Output: 3250W

Accuracy of Voltage: ±0.5% +1 word

Accuracy of Current: ±0.5% +3 word

Resolution of Voltage: 0.01V

Resolution of Current: 0.01A

Storage Data Groups: 10 Groups

Screen: 1.8-Inch Full-View High-Brightness True Color LCD

Output Ripple Typical Value: VPP-200mv

MPPT Function: Supports MPPT Solar Charging

Efficiency of Conversion: Approximately 95%

Bare Board Dimensions: 86mm x 45mm x 28mm / 150.8mm x 99.4mm x 57mm

Protection Mechanisms: Anti-Reverse, Reverse Current Protection, Over-Voltage, Over-Current, Over-Power, Over-Temperature, Over-Time Out, Over-Capacity, Over-Energy

Protection mechanism: Input under-voltage(LVP): 10-75.00V, default 10V over-voltage(OVP): 0-67.00V, default 67.00V over-current(OCP): 0-52A, default 52A over-power(OPP): 0-3400W, default 3300W over-temp(OTP): 60-110 ℃, default 110 ℃ over-time out(OHP): 1 minute - 99hours 59 minutes, off by default over-capacity(OAH): 0-4200KAh, off by default over-energy(OWH): 0-4200KWh, off by default EXT over-temp(ETP): 0-110 ℃, off by default

1. High precision with ±0.5% voltage and ±0.5% current accuracy for reliable and stable output control.

2. Compact design with 3250W power output, meeting various laboratory or industrial use cases.

3. Advanced MPPT solar charging support ensures efficient energy optimization and usage.

4. 1.8-inch True Color LCD display provides clear data visualization and user-friendly operations.

5. Multiple safety mechanisms including over-voltage, over-current, and reverse current protection.

1 x DC Buck-Power Supply Module
