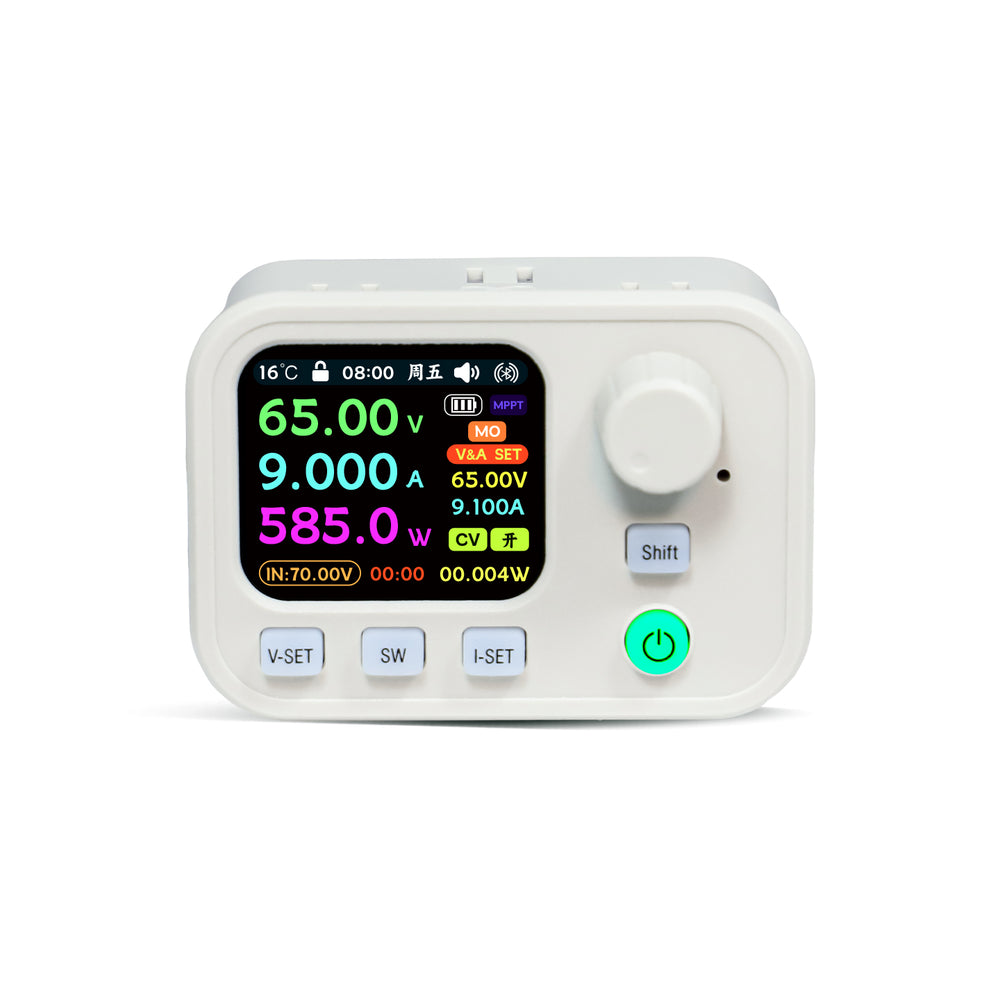

Sinilink XY6509W DC Buck Programmable Power Supply Module 12-72V Input 0-65V 9A 585W WiFi Bluetooth MPPT IPS LCD Modbus CC CV CW Dual System - White

Specification

Product name: DC Buck-power supply

Model: XY6509W

Input voltage: 12.00-72.00V

Output voltage: 0-65.00V

Output current: 0-9.000A

Power output: 585W

Accuracy of voltage: ±0.5%+1 word

Accuracy of current: ±0.5%+3 word

Resolution of voltage: 0.01V

Resolution of current: 0.001A

Storage data group: 10 groups

Soft start: YES

Screen size: 1.69-Inch Full-View IPS True-Color LCD Screen

Output ripple typical value: vpp-150mv

MPPT function: Support MPPT solar charging

Buzzer: YES

Efficiency of conversion: About 96%

Number of buttons: 6

Product size: 68x48x49mm

Product weight: 129g

Anti-reverse: YES

Output reverse current protection: YES

Input under-voltage(LVP): 10-75V, default 10V

Over-voltage(OVP): 0-67V, default 67V

Over-current(OCP): 0-9.2A, default 9.2A

Over-power(OPP): 0-650W, default 600W

Over-temp(OTP): 60-110 °C, default 110 °C

Over-time out(OHP): 1 minute - 9999 minutes, off by default

Over-capacity(OAH): 0-9999Ah, off by default

Over-energy(OWH): 0-4200KWh, off by default

EXT over-temp(ETP): 0-110 °C, off by default

Features

1) DC buck programmable power supply with 12.00-72.00V input, 0-65.00V output, 0-9.000A output current, and 585W power output.

2) 1.69-inch full-view IPS true-color LCD screen with 280 x 240 high resolution.

3) Supports CC, CV, CW modes, soft start, and 10 groups of storage data.

4) Supports MPPT solar charging, with standard WiFi and Bluetooth, and Modbus protocol for serial communication.

5) Includes anti-reverse and output reverse current protection, with LVP, OVP, OCP, OPP, OTP, OHP, OAH, OWH, and ETP functions.

Package included

1 x XY6509W DC Buck-power supply
