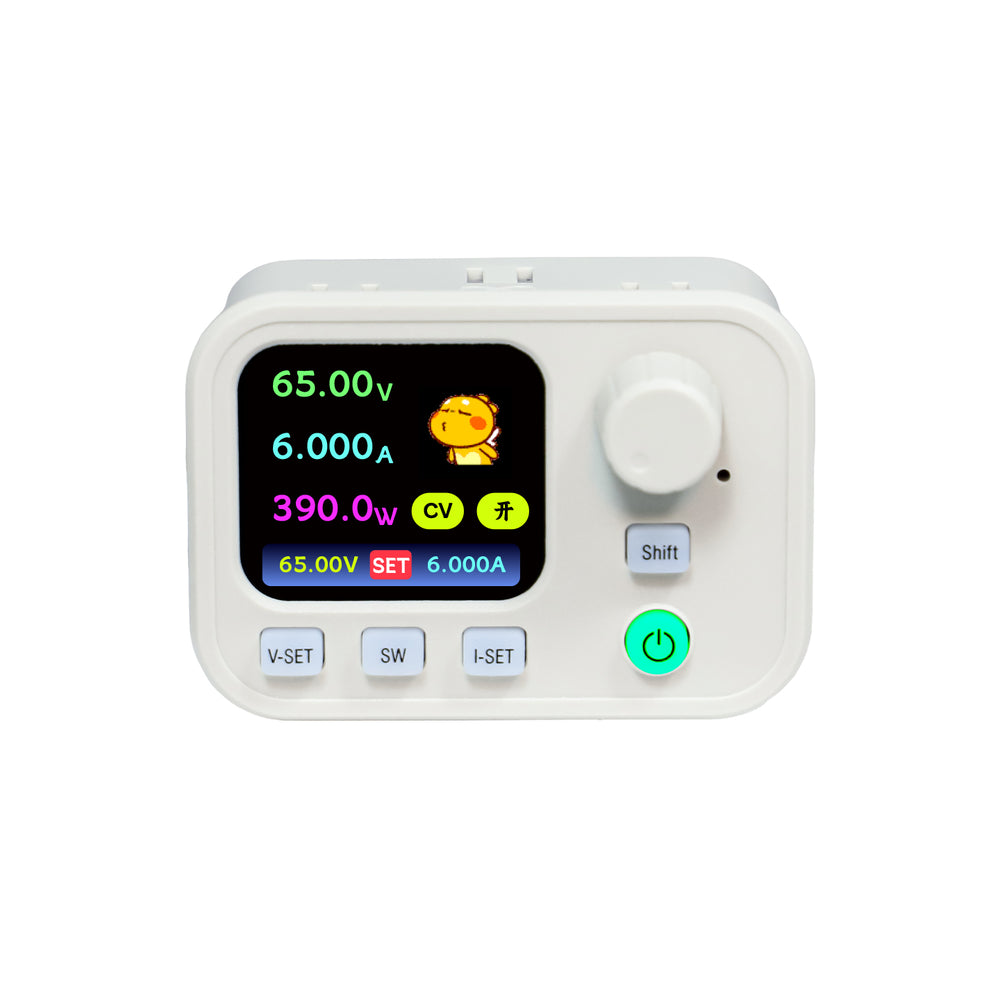

Sinilink XY6506W DC Buck Power Supply Module 12-72V Input 0-65V Output 0-6A 390W IPS LCD MPPT WiFi Bluetooth Adjustable Voltage Regulator - White

Specification

Product name: DC Buck-power supply

Model: XY6506W

Input voltage: 12.00~72.00V

Output voltage: 0~65.00V

Output current: 0~6.000A

Power output: 390W

Accuracy of voltage: ±0.5%+1 word

Accuracy of current: ±0.5%+3 word

Resolution of voltage: 0.01V

Resolution of current: 0.001A

Storage data group: 10 groups

Soft start: YES

Screen size: 1.69-Inch Full-View IPS True-Color LCD Screen

Output ripple typical value: Vpp-150mv

MPPT function: Support MPPT solar charging

Buzzer: YES

Efficiency of conversion: About 96%

Number of buttons: 6

Product size: 68x48x49mm

Product weight: 129g

Anti-reverse: YES

Output reverse current protection: YES

Input under-voltage(LVP): 10-75V, default 10V

Over-voltage(OVP): 0-67V, default 67V

Over-current(OCP): 0-6.2A, default 6.2A

Over-power(OPP): 0-420W, default 400W

Over-temp(OTP): 60-110 °C, default 110 °C

Over-time out(OHP): 1 minute - 9999 minutes, off by default

Over-capacity(OAH): 0-9999Ah, off by default

Over-energy(OWH): 0-4200KWh, off by default

EXT over-temp(ETP): 0-110 °C, off by default

Features

1) 12.00-72.00V input, 0-65.00V output, and 0-6.000A output current.

2) 390W power output with about 96% conversion efficiency.

3) 1.69-inch Full-View IPS true-color LCD screen with 280*240 high resolution.

4) Supports 10 groups storage space, soft start, and MPPT solar charging.

5) Anti-reverse and output reverse current protection with multiple protection mechanisms.

Package included

1 x XY6506W DC Buck-power supply module
