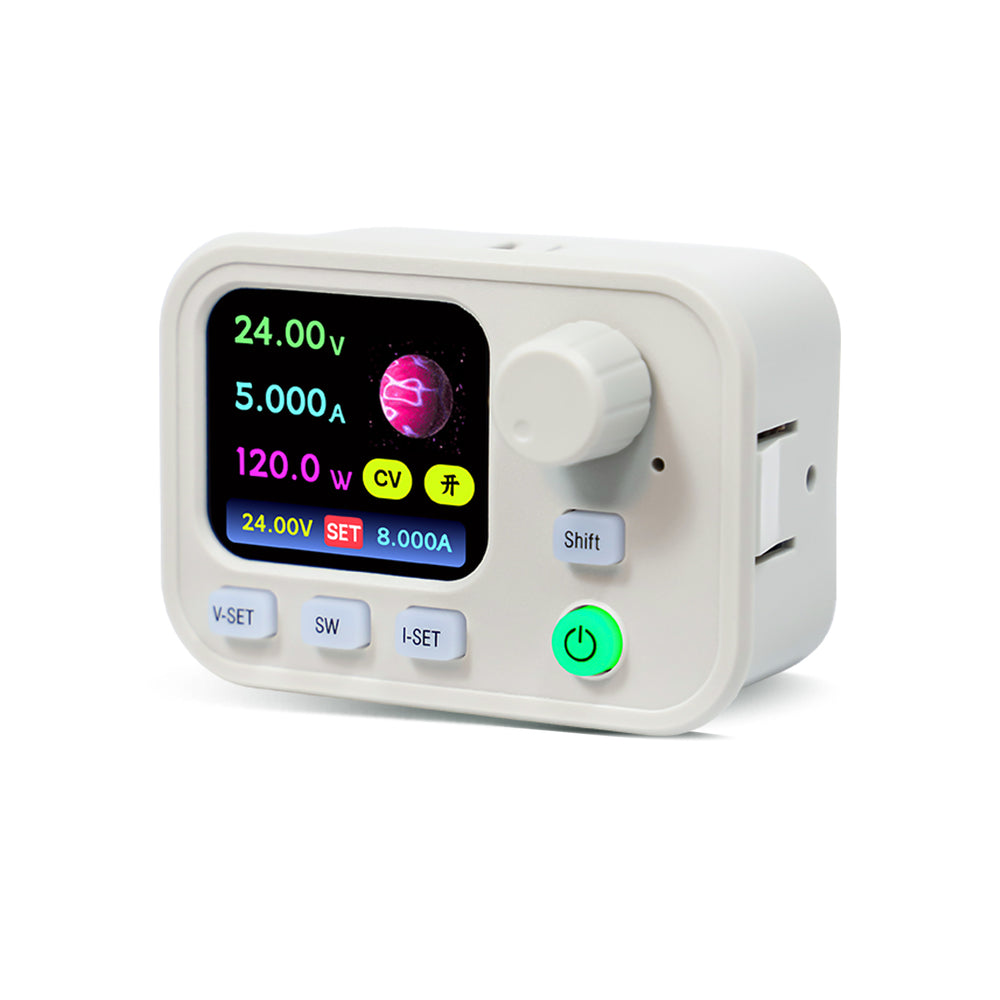

Sinilink XY-SK200W DC Buck-Boost Power Supply Module 6-36V Input 0-40V Output 0-9A 200W WiFi Bluetooth IPS LCD MPPT Daul System - White

Specification

Product name: Buck-Boost power supply

Model: XY-SK200W

Input voltage: 6.000~36.00V

Output voltage: 0~40.00V

Output current: 0~9.000A

Power output: 200W

Accuracy of voltage: ±0.5%+1 word

Accuracy of current: ±0.5%+3 word

Resolution of voltage: 0.01V

Resolution of current: 0.001A

Storage data group: 10 groups

Soft start: YES

Screen size: 1.69-Inch Full-View IPS True-Color LCD Screen

Output ripple typical value: vpp-150mv

MPPT function: Support MPPT solar charging

Buzzer: YES

Efficiency of conversion: About 88%

Number of buttons: 6

Product size: 68x48x49mm

Product weight: 98g

Anti-reverse: YES

Output reverse current protection: YES

Input Overcurrent Protection (ICP): Yes, hardware + software protection @13A (fixed)

Input under-voltage (LVP): 5.5-36V, default 5.5V

Over-voltage (OVP): 0-42V, default 42V

Over-current (OCP): 0-9.2A, default 9.2A

Over-power (OPP): 0-220W, default 200W

Over-temp (OTP): 60-110°C, default 110°C

Over-time out (OHP): 1 minute - 9999 minutes, off by default

Over-capacity (OAH): 0-9999Ah, off by default

Over-energy (OWH): 0-4200KWh, off by default

EXT over-temp (ETP): 0-110°C, off by default

Features

1) 6.000~36.00V input, 0~40.00V output, 0~9.000A output current, and 200W power output.

2) 1.69-inch full-view IPS true-color LCD screen with 280 x 240 high resolution.

3) Standard with WiFi and Bluetooth, and supports Modbus protocol for serial communication.

4) Supports MPPT solar charging, firmware upgrade, one-key sequences, and automatic voltage and current sweep.

5) Includes reverse polarity protection, reverse current protection, and input overcurrent protection.

Package included

1x XY-SK200W Buck-Boost Power Supply Module
