SignalFire AI-5 Pro Optical Fiber Fusion Splicer 6 Motors Core Alignmen 8s Splicin Automatic FTTH Splicing Machine

Specifications
Fiber alignment: Core/cladding alignment / Manual alignment
Splicing time: 8S
Heating time: 18S
Heating mode: Automatic heating (Preheating)
Focus mode: Six motors Auto focus
Applicable Fibers: Single-mode fiber (SMF/G.652), multimode fiber (MMF/G.651), dispersion-shifted fiber(DSF/G.653), non-zero dispersion-shifted fiber (NZ-DSF/G.655), and bend-insensitive fiber (BIF/G.657); suitable for splicing bare fiber, pigtail, drop fiber, patch cord, and invisible fiber.
Splice Loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS)
Control technology: Real-time control and calibration of fusion ARC
Return loss: Better than 60DB
Fiber diameter: Cladding Diameter: 80-150μm, Coating Diameter: 100-1000μm
Fiber Cleave Length: Coating less than 250μm: 8-16mm; Coating less than 250-1000μm: 16mm
Built-in lighting: easy for night operation
Tension Test: Standard 2N
Fiber holders: 3 in 1 fiber holder, SM, MM, bare fiber, pigtail, Drop cable, multi fiber cable
Magnification: 320x (X or Y axis single display), 160x (X and Y axis dual display)
Screen: 5 inch TFT color display
Splicing Mode: Normal / high precision splicing
Splicing record storage: Synchronize to the phone, the server to cloud storage unlimited
Built-in battery: 5200mAh high-capacity lithium battery, charging time ≤ 3.0 hours, continuous splicing and heating about 160 times
Power supply: Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A
Operating Conditions: Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation) Working altitude: 0 ~ 5000m. Resist max. wind speed: ≤ 15m / s
Shrinkable tube: 60mm, 40mm

Features
1)Features six motors for precise core-to-core alignment, ensuring minimal splice loss and reliable connections for a wide range of fiber types.
2)Achieve rapid field operations with an 8-second splicing time and an 18-second heating time, significantly improving your overall work efficiency.
3)Equipped with a high-capacity 5200mAh battery, supporting approximately 160 splicing and heating cycles on a single charge of 3 hours or less.
4)Includes a versatile 3-in-1 fiber holder, compatible with SM, MM, bare fiber, pigtails, and drop cables without needing to change fixtures.
5)Built-in bright LED lighting provides excellent visibility, making it convenient and easy to operate the splicer accurately in dark or low-light conditions.

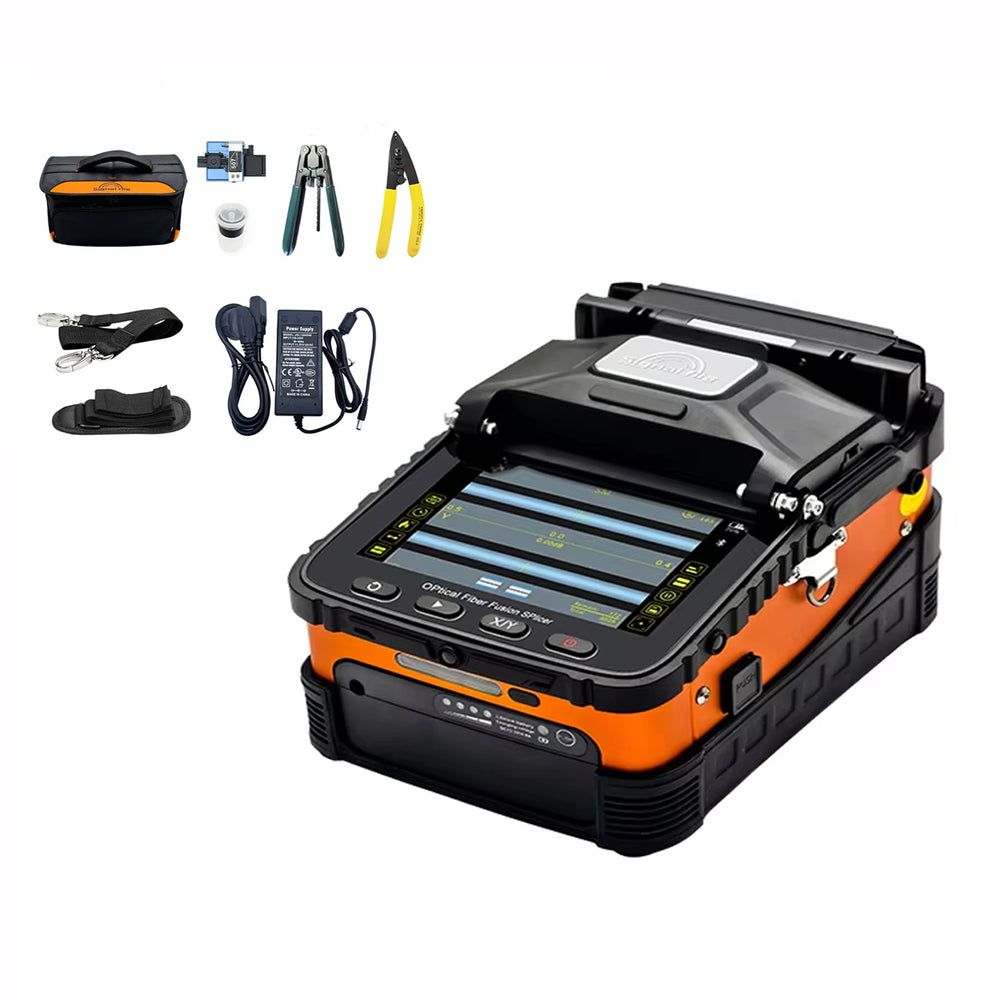

Package included
1 x Fusion Splicer
1 x Toolkit
1 x S07 Fiber Cleaver
1 x Alcohol Bottle
1 x Wire stripping pliers
1 x Miller stripper
1 x Belt
1 x Toolbox strap
1 x Power Adapter
