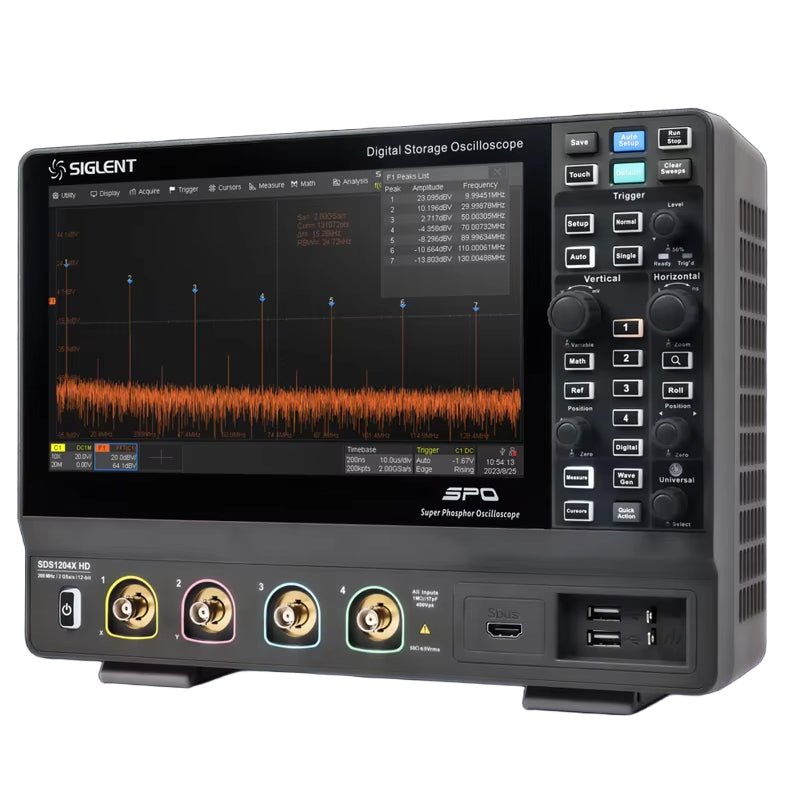

Siglent SDS1204X-HD Oscilloscope 200MHz Bandwidth 4 Channels 2GSa/s Sampling Rate 12-bit High Resolution TFT-LCD Touch Screen

>>Please click here to download the product manual<<

Specifications:

Model: SDS1204X-HD

Analog Channels: 4 + EXT

Bandwidth: 200 MHz

Vertical Resolution: 12-bit

Sample Rate (Max): 2 GSa/s (one channel mode)

Memory Depth (Max): 100 Mpts/ch (one channel mode)

Waveform Capture Rate (Max): Normal mode: 120,000 wfm/s; Sequencemode: 500,000 wfm/s

Trigger Type: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Delay, Setup/Hold time, Serial

Serial Trigger and Decode (Standard): I²C, SPI, UART, CAN, LIN, CAN FD (Decode Only), FlexRay (Decode Only)

Measurement: 50+ parameters, statistics, histogram, trend, and track supported

Math: 4 traces, 2 Mpts FFT, Filter, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, Max&MinHold, ERES, Average. Supports formula editor

Data Analysis: Search, Navigate, History, Mask Test, Counter, Bode plot, and Power Analysis

Digital Channel (Optional): 16-channel; maximum sample rate up to 1 GSa/s; record length up to 10 Mpts

USB AWG Module (Option): One channel, 25 MHz, sample rate of 125 MHz, wavelength of 16 kpts, isolated output

I/O: USB 2.0 Host x3, USB 2.0 Device, 10 M / 100 M LAN, External trigger, Auxiliary output (TRIG OUT, PASS/FAIL), SBUS (Siglent MSO)

Probe (Standard): Passive probe PP215 for each channel

Display: 10.1 TFT-LCD with capacitive touch screen (1024*600)

Features:

1.High Resolution and Bandwidth: Experience unprecedented clarity and precision with its 12-bit vertical resolution and 200 MHz bandwidth. This oscilloscope delivers highly detailed waveforms for accurate analysis.

2.Exceptional Sampling Rate: Achieve real-time data capture with a sample rate of 2 GSa/s per channel. Perfect for professionals requiring high-speed data acquisition and analysis.

3.Extensive Triggering Options: Equipped with various trigger modes such as Edge, Slope, Pulse Width, and more, this oscilloscope caters to a wide array of signal conditions and analysis needs.

4.Enhanced Data Storage: The oscilloscope offers up to 100 Mpts of memory depth per channel. Store large amounts of data and recall them effortlessly for thorough inspection and reporting.

5.Advanced Analytical Tools: Integrated with over 50 measurement parameters, statistical data, and powerful math functionalities, this oscilloscope supports comprehensive diagnostics and problem-solving tasks.

Package Included:

1 x Host

1 x Power Cord

3 x USB Cable

1 x Outer Packing

1 x Guidelines & Certificate

4 x Passive Probe (1 set/channel)

1 x Adapter
