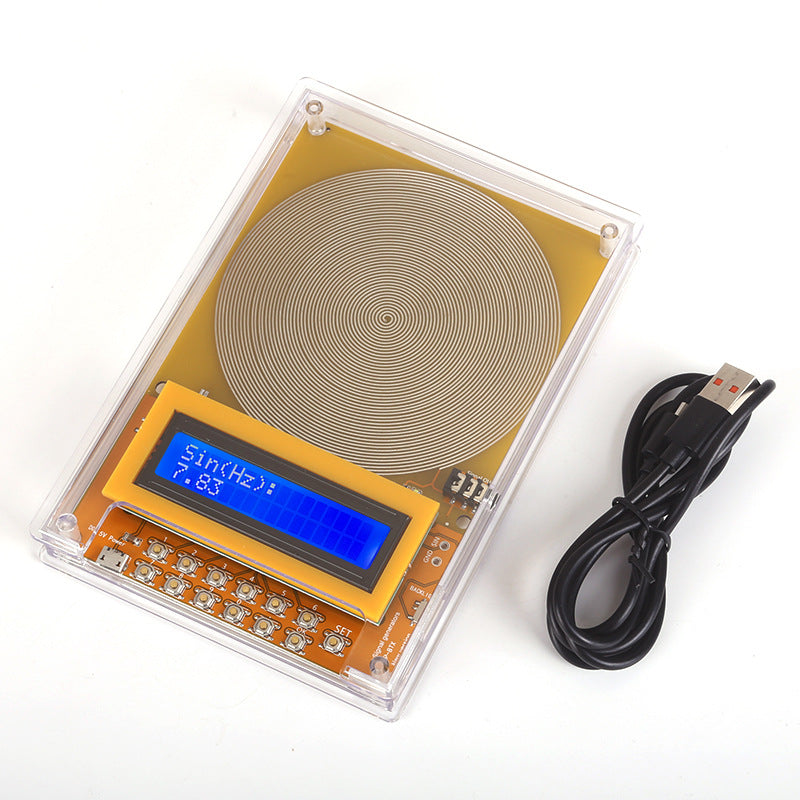

Schumann Wave Signal Generator 0.01Hz-100kHz Adjustable Pure Sine Wave Oscillator 7.83Hz Resonance Frequency Programmable Frequency Generator

Specification

Product Name: High Precision Programmable Schumann Wave Generator

Antenna Waveform: Sine Wave

Interface Waveform: Sine Wave

Power Interface: Micro USB + DC 5.5 x 2.1

Power Supply Voltage: 5V DC

Rated Power Consumption: Less Than 1W

Default Frequency: 7.83Hz

Frequency Adjustment Range: 0.01Hz to 100,000Hz

Hardware Stable Range: 0.1Hz to 30kHz

Frequency Reference: Digital Crystal Oscillator

Board Size: Approx. 15 x 10 cm

Size With Case: Approx. 15.5 x 10.5 x 2.8 cm

Color: Yellow Silver-Plated

Features

1) Digital crystal oscillator reference provides accurate and stable frequency output with less drift than ordinary RC oscillator circuits.

2) Default 7.83Hz Schumann resonance output supports space environment optimization and relaxation applications.

3) Programmable frequency range from 0.01Hz to 100,000Hz, with stable hardware output from 0.1Hz to 30kHz.

4) Pure sine wave output on both antenna and interface sides for smooth and clean signal transmission.

5) Dual power input design with Micro USB and DC 5.5 x 2.1 supports easy standalone use with 5V power sources.

Package Included

1 x Schumann Wave Generator Main Unit With Acrylic Transparent Case

1 x USB Power Cable

Frequency Change Method (One-Click Setting)

Enter the desired frequency value directly using the number keys.

Press the [OK] key in the lower left corner to complete the frequency setting.

Example: Set to 7.83Hz → Press [7] → [.] → [8] → [3] in → Press [OK].

The default output is 7.83Hz upon power-on, requiring no setting each time.

Settable range: 0.01～100,000Hz (Key operation supports a stable range of 0.1～30kHz).

No computer connection required; can be used independently offline; extremely simple operation.
