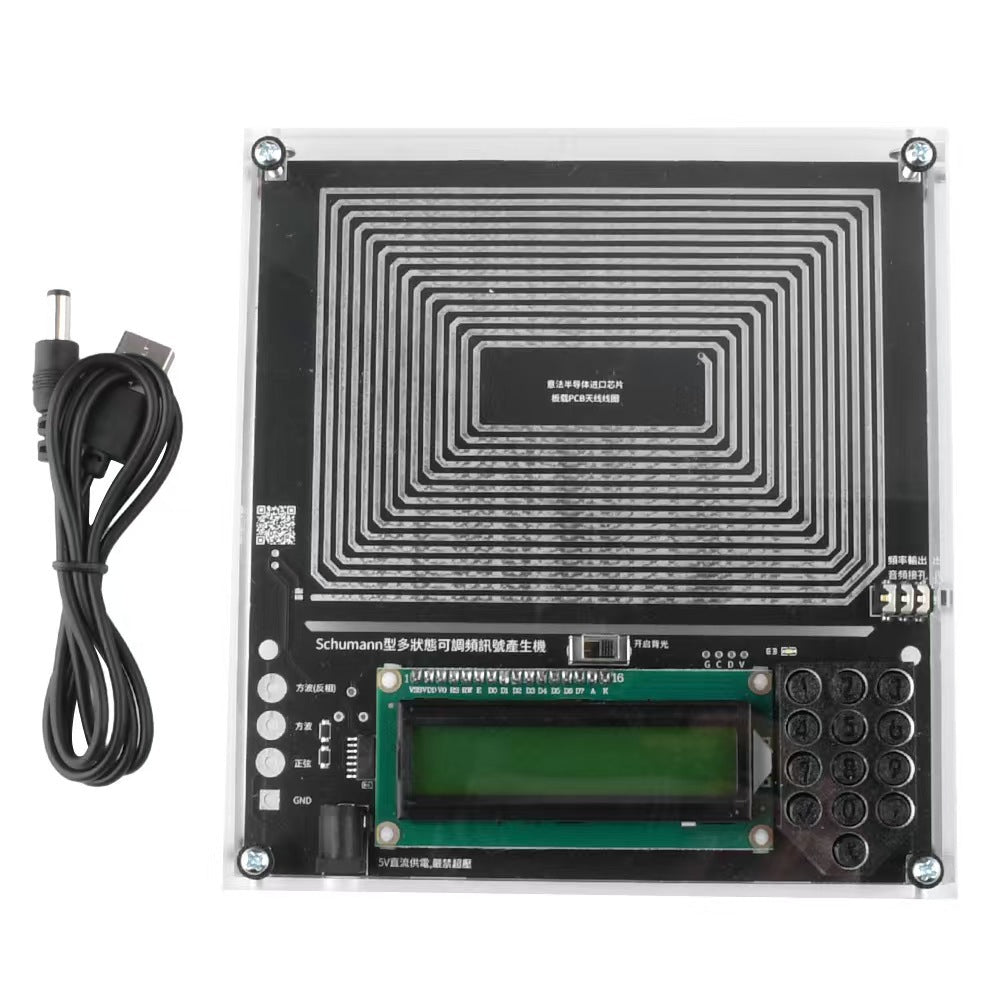

Schumann Wave Generator 7.83Hz High Precision Programmable Signal Generator Adjustable 0.001Hz-200KHz Sine Square Wave Output With Type-C Interface

Features:

1) Using fine quality materials, the frequency stability of the product is fine.

2) This product can not only output 7.83Hz SchumannWave, but also adds programmable frequency modulation technology, which can adjust the frequency within the range of 0.001Hz-200KHz.

3) Professional oscilloscope measuremen, 7.83Hz standard sinewave, Waveform is real and effective.

4) Digital circuit crystal oscillator frequency reference, more stable and strong anti-interference.

Specifications:

 AntennaWaveform: sinewave

Interface waveform: sinewave + squarewaves + inverted squarewaves (the lower leftcorner is the output interface, and the waveform is output at the same time)

PowerSupply interface: type-c

Voltage: 5V

Rated power consumption: <1W

Default frequency: 7.83Hz

Adjustment range: 0.001Hz-200KHz

SineSignal voltage amplitude: 3V

SquareWaves signal voltage amplitude: 5V

How to change the frequency:

Enter the frequency directly, press the button on the lower leftcorner to complete the setting.

For example, press [7][.][8][3], then press [OK], you can set to 7.83Hz, the default power-on output is 7.83Hz, and the setting range is 0.001Hz-200KHz.

Package Included:

1 x Schumann Wave Generator

1 x USB Cable

Optional:

1 x Acrylic Case
