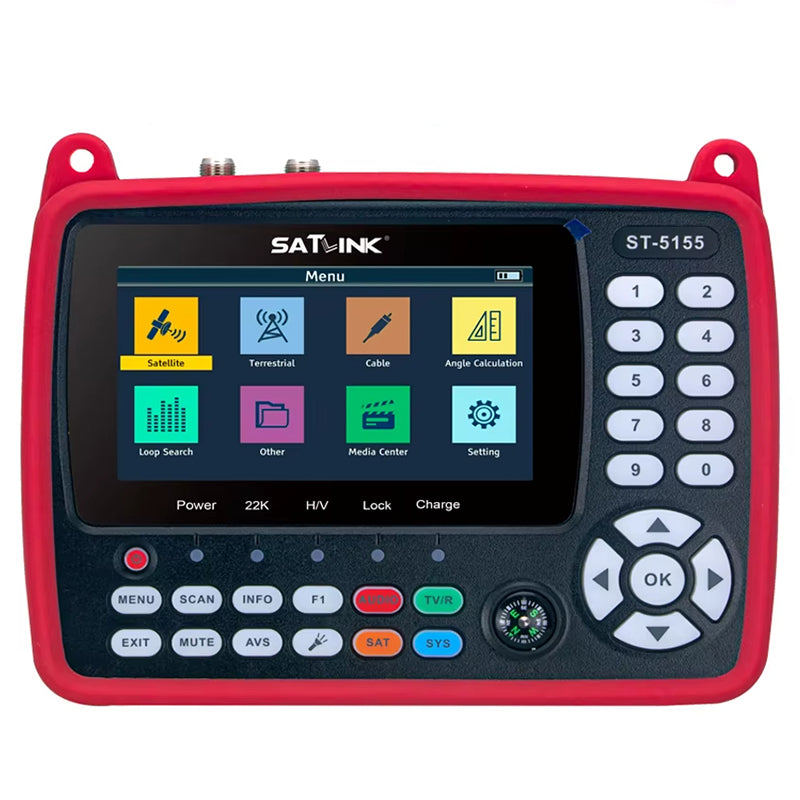

Satlink ST-5155 DVB-S2/T2/C HD Satellites Finder Meter 4.3 Inch H.265 HEVC Signal Strength Quality Auto Scan Angle Calculation HD AV Output

Specifications:

TRANSMISSION STANDARDS	DVB-S2X/S2/S, DVB/T/T2, DVB-C,H.265(10Bit)
SATELLITEs INPUT/DEMODULATION	Connector Type: F Type Input Frequency: 950 to 2150 MHz Signal Input Level: -65 to -25 dBm Band Switch Control: 22KHz LNB Supply: 13V/18V, IMax 400mA Demodulation Type: QPSK, 8PSK, 16APSK, 32APSK Symbol Rate: ≥Rs≤45Mband(SCPC/MCPC)
DVB-T/T2/C INPUT/DEMODULATION	Connector Type: Female Type Input Frequency: 48 to 862 MHz Signal Input Level: -79dBm (DVB/T/T2), -67dBm (DVB-C) ANT Supply: 5V, 12V(±5%) Imax 100mA Demodulation Type: QPSK, 16QAM, 64QAM, 256QAM
LCD FEATURES	LCD Type: TFT Transmissive Number of Dots: 800 (RGB) x 480 Active Area (WxH): 95.04 x 53.86 mm²
AV OUTPUT INTERFACE	Connector Type: 3.5 mm jack Video Output: CVBS Audio Output: Stereo Audio L/R output
HD OUTPUT CONNECTOR	Format: HD 1.4
AV INPUT INTERFACE	Connector Type: 3.5 mm jack Video Input: CVBS Audio Input: Stereo Audio L/R input
AUDIO/VIDEO PROCESSING	Video Decompression: HEVC Main Profile@level 4.1 and Main10 Profile@L4.1 Resolving Rate: 480p, 576p, 720p, 1080i/p Video Format: 4:3, 16:9 Audio Decompression: MPEG-1/2 Layer I/II/III, Dolby AC3/AC3+ Audio Output Mode: Stereo, Mono, R/L
DATA SERVICE PORT	Connector: USB Data Protocol: USB2.0 interface File Management System: NTFS, FAT32 File Format: wma, mp3, mp4, avi, jpg, jpeg, bmp, img
POWER SUPPLY	Li-ion Battery: 7.4V/2600mAh (The machine behind labeling shall prevail) Adapter: OUTPUT: DC12V/1A, INPUT: 100~240VAC 50/60Hz (Will be subject to actual configuration) Power Consumption: Max. 10W
PHYSICAL CHARACTERISTICS	Size (W x D x H): 17 x 12 x 4 (cm³) Net Weight: 1kg

Features:

1. 4.3Inch High Definition TFT LCDScreen
2. Fully DVB-S/S2/T/T2/C compliant
3. MPE,MP4,H264/MPAVC,H.265(10Bi)/HEVC hardware decoding
4. Digital meter for signal strength and quality
5. Supports Auto Scan and Manual Scan
6. Sound and Light Alarm for Locking Signal
7. Auto Calculate Angle of AZ,EL
8. Supports DISEQC1.0V1.1/12,Unicable,0/22kHz Tone
9. Speaker Integrated
10. Support both AV out and AV in
11. Support HD out
12. LNB short protect
13. 7.4V/2600mAh Li-lonBattery Included
14. Software upgrade via USB pot
15. Easy to carry

Package Include:

1x Satellites TV Receiver

1x Power Supply(EU/US Optional)

2x AV Cable

1x Lanyard
