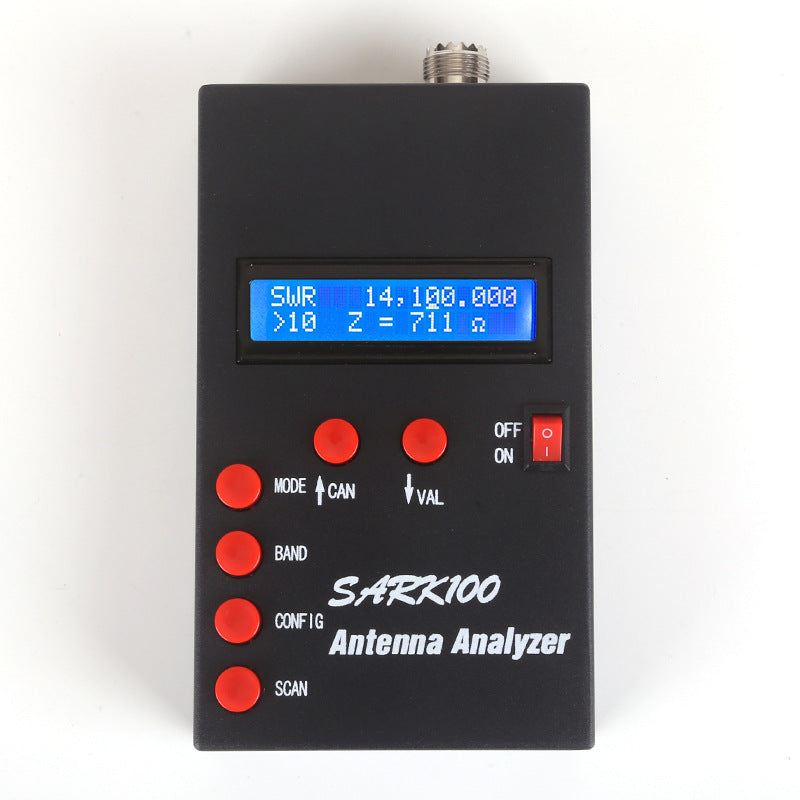

SARK100 Practical Antenna Analyzer 1-60MHz LCD SWR Impedance Meter USB Support SL-16 M Female Socket HF Shortwave Antenna Tester - Black

Specification

Product Name: SARK100 Practical Antenna Analyzer

Application: HF shortwave radio station antenna tuning, antenna SWR testing, impedance measurement

Frequency Range: 1-60 MHz

50 Ohm Resistor Test Error: +/-1 Ohm

SWR Test Error: +/-0.1

Display: LCD screen

Display Parameters: Frequency, SWR, impedance

USB Connection: Supports connection to computer via USB cable for test data waveform analysis

USB Cable: Not included

Test Port Connector: SL-16 (M female socket)

Button Type: Round buttons

External Power Supply: 13.5 V 1 A

Battery: Not included

Internal Power Lead: Red and black power wires reserved inside

Enclosure Size: 150 x 90 x 40 mm

Unit Weight: 0.6 kg

Circuit Board Size: 91 x 53 x 25 mm

Working Current: 500-700 mA

Ready to Use: Main board fully soldered and tested, enclosure fully assembled

Features

1) 1-60 MHz frequency range covers commonly used HF shortwave bands.

2) High test accuracy with +/-1 Ohm resistor error and +/-0.1 SWR error.

3) Fully assembled unit with tested main board and completed enclosure.

4) LCD screen displays frequency, SWR, impedance, and other key parameters.

5) Supports USB connection to a computer for test data waveform analysis.

Package Included

1x SARK100 antenna analyzer finished unit (main board soldered + enclosure assembled)
