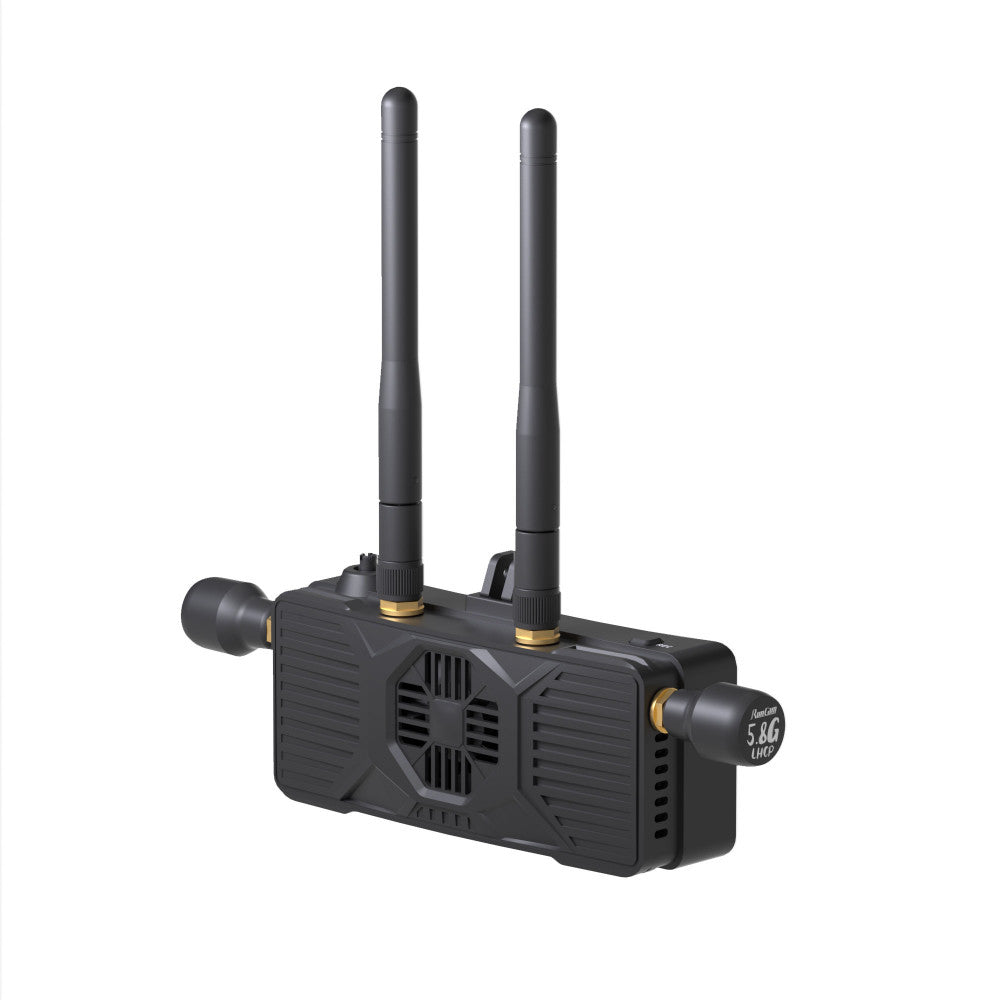

RunCam WiFiLink 5.8GHz Digital HD Receiver Built-in WIFI Dual Antanna Support OpenIPC and Rubyy System for FPV Drone
Description
Brand Story
RunCam is a leading brand in the FPV and drone industry, recognized for its innovative and high-quality products. With a strong commitment to delivering cutting-edge technology, RunCam has become a trusted name among both hobbyists and professionals in aerial photography and drone racing. The WiFiLink Digital HD Receiver is part of RunCam's ongoing effort to provide reliable and high-quality video transmission solutionss, enhancing the flying experience with advanced features and superior performance.
Specification:
Model |
WiFiLink RX |
Frequency |
5180Mhz~5885Mhz |
Transmission Power |
< 25dBm(FCC) |
Interface |
Mini-HDMlI, Micro-SD, DC 5.5x2.1mm, Type-C, OTG |
Mini-HDMIl Output |
1080P 60fps / 720P 60fps |
Power Input |
9~30V (3~6S) |
MicroSD Card |
Supports up to 256GB |
Built-in Storage |
32G (including system files) |
System |
Rubyy FPV / OpenIPC |
Dimensions |
(L)110.0mm x (W)27.3mm x (H)46.0mm |
Weight |
122.0g (±1g) (antenna excluded) |
Model |
Stick Antenna |
Polarization |
Vertical Polarization(VP) |
Operating Frequency |
5150-5850 MHz |
Average Gain |
2.5dBi |
Standing Wave Ratio (SWR) |
<=2.0 |
Dimensions |
(R)4.8mm x (H)108.4mm |
Weight |
6.6g |
Model |
Pagoda Antenna |
Polarization |
Left-Hand Circular Polarization（LHCP） |
Operating Frequency |
5500-5900 MHz |
Average Gain |
2.5dBi |
Standing Wave Ratio (SWR) |
<=2.0 |
Dimensions |
(R)8.0mm x (H)23.9mm |
Weight |
4.4g |
Feature:
1. Quad Antennas for Stable Signal: Equipped with quad antennas using advanced STBC/LPDC technology, ensuring strong and steady signals for flights over 5KM.
2. Dual System Support: Supports OpenIPC and Rubyy systems, offering flexible and effortless switching with comprehensive firmware and tutorials.
3. HDMiI Output with Ultra-low Latency: Experience 1080P@90fps or 720P@120fps visuals, with HDMIi output and ultra-low latency for a realistic flight experience.
4. Built-in EMMC Storage: Comes with 32GB EMMC storage, delivering stable performance and reliable data retention for carefree recording.
5. Versatile Connectivity: Features Mini-HDMiI, Type-C, Micro-SD, and OTG interfaces compatible with various devices for enriched functionality.
Package included:
1 x WiFiLink RX
1 x XT60 to DC Power Cable
1 x Warranty Card
1 x Mini HDMiI to HDMiI Cable
1 x Quick Start Guide
