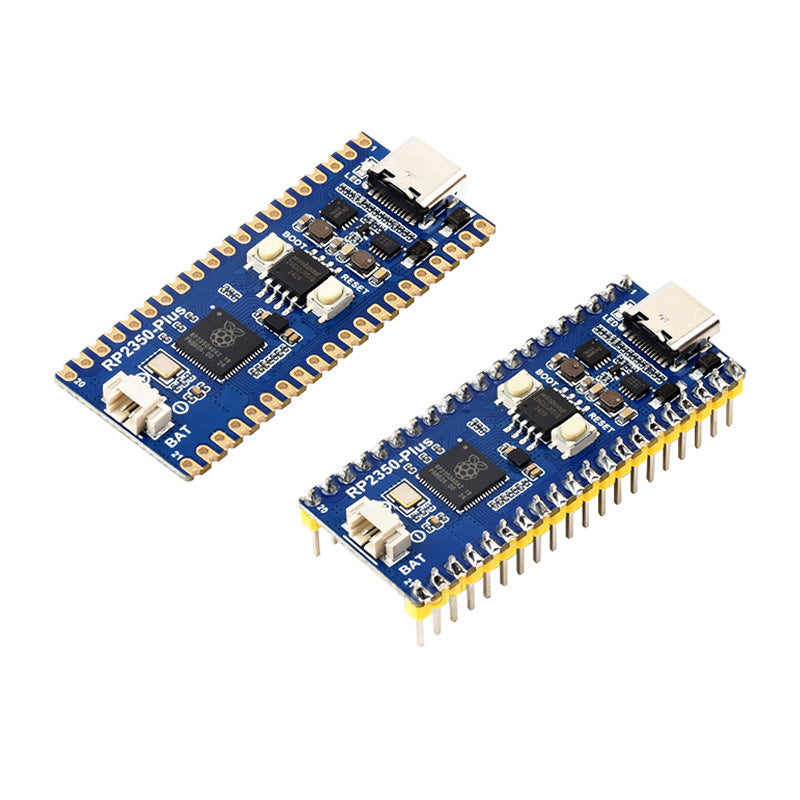

RP2350-Plus Development Board Pico MCU Board Based On Raspberry Pi RP2350A Dual-core Dual-architecture Processor

Specifications:

Microcontroller Chip: RP2350A designed by Raspberry Pi

Processor: Dual-core Arm Cortex-M33 and dual-core Hazard 3 RISC-V

Clock Frequency: Up to 150 MHz

Memory: 520KB SRAM, 4MB on-board Flash

USB: USB 1.1 (device and host)

Power: Type-C connector, Lithium battery recharge/discharge header

DC-DC Chip: MP28164 buck-boost, 2A max load

Interface: 26 multi-function GPIO pins

Connectivity: 2× SPI, 2× I2C, 2× UART, 4× 12-bit ADC, 16× PWM channels

Features: Low-power sleep modes, onboard temperature sensor, accurate on-chip clock and timer, accelerated floating-point libraries, 12 programmable I/O state machines

Features:

1.Advanced Dual-Architecture Design: Integrating both a dual-core Arm Cortex-M33 and a dual-core Hazard 3 RISC-V processor, the RP2350 Plus offers a powerful computational platform for a variety of applications, from basic to complex tasks, ensuring smooth project execution.

2.Extensive Memory Capacity: Equipped with 520KB of SRAM and 4MB of on-board Flash memory, this board offers ample storage space for running various applications and storing data, making it suitable for both small and large-scale projects.

3.Versatile Connectivity: The board features 26 multi-function GPIO pins along with multiple communication interfaces including 2× SPI, 2× I2C, 2× UART, and 4× 12-bit ADC channels. It also includes 16 controllable PWM channels, providing support for a wide range of peripherals and expansion options.

4.Flexible & Efficient Programming: Supports drag-and-drop programming via mass storage over USB, facilitating a straightforward and intuitive development process. Additionally, the board's compatibility with Raspberry Pi Pico add-ons allows for expanding its functionalities effortlessly.

Package Included:

1 x RP2350 Plus Board (without pinheader)

or

1 x RP2350 Plus-M Board (with pre-soldered pinheader)
