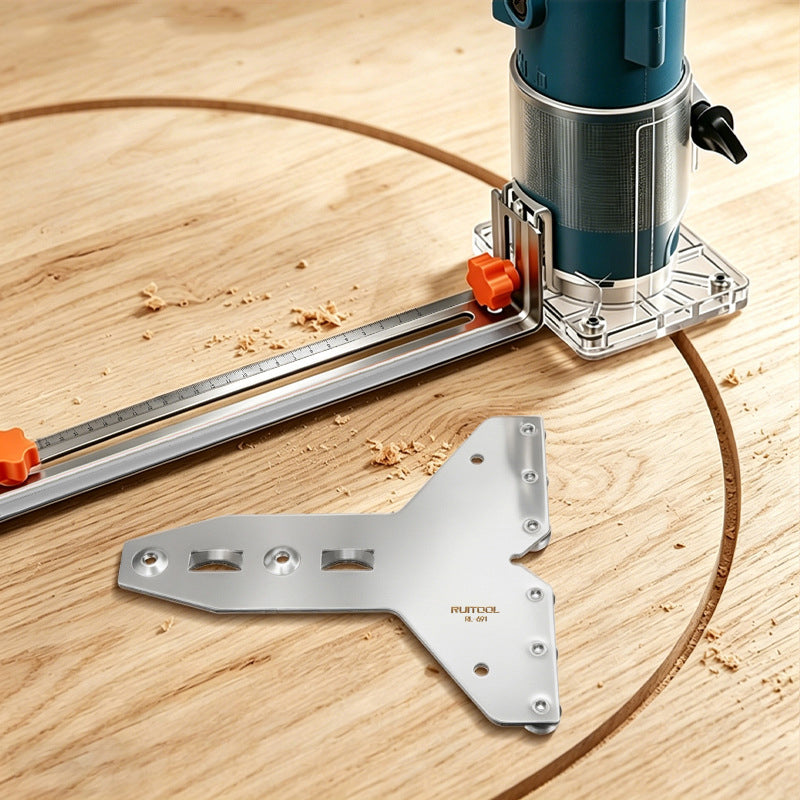

Router Circle Cutting Jig Trimmer Guide Rail Extendable To 831mm Stainless Steel Pulley Fence For Woodworking Slotting Arc And Edge Work
Description
Specifications
Parameter |
Basic Model |
Extended Model |
Material |
Stainless Steel |
Stainless Steel |
Minimum Circle Milling Rαdius |
67mm |
67mm |
Maximum Circle Milling Rαdius |
342mm |
823mm |
Dimensions |
331mm x 160mm x 36mm |
831mm x 160mm x 36mm |
| Type | A | B |
Features
1) Features an innovative pulley backing system for smooth, precise guidance along edges, preventing deviation and ensuring accuracy.
2) The unique concave pulley arrangement allows for slotting operations very close to the workpiece edge, perfect for narrow margins.
3) Extendable splicing design increases the maximum working length from 33cm to 83cm, accommodating larger-scale woodworking projects.
4) Constructed from a single piece of stainless steel for high strength and resistance to deformation, ensuring long-term performance.
5) Equipped with high-precision laser-engraved scales for clear, accurate measurements, facilitating quick and easy adjustments.
Package included(Type as your choice):
1 x Router Jig
