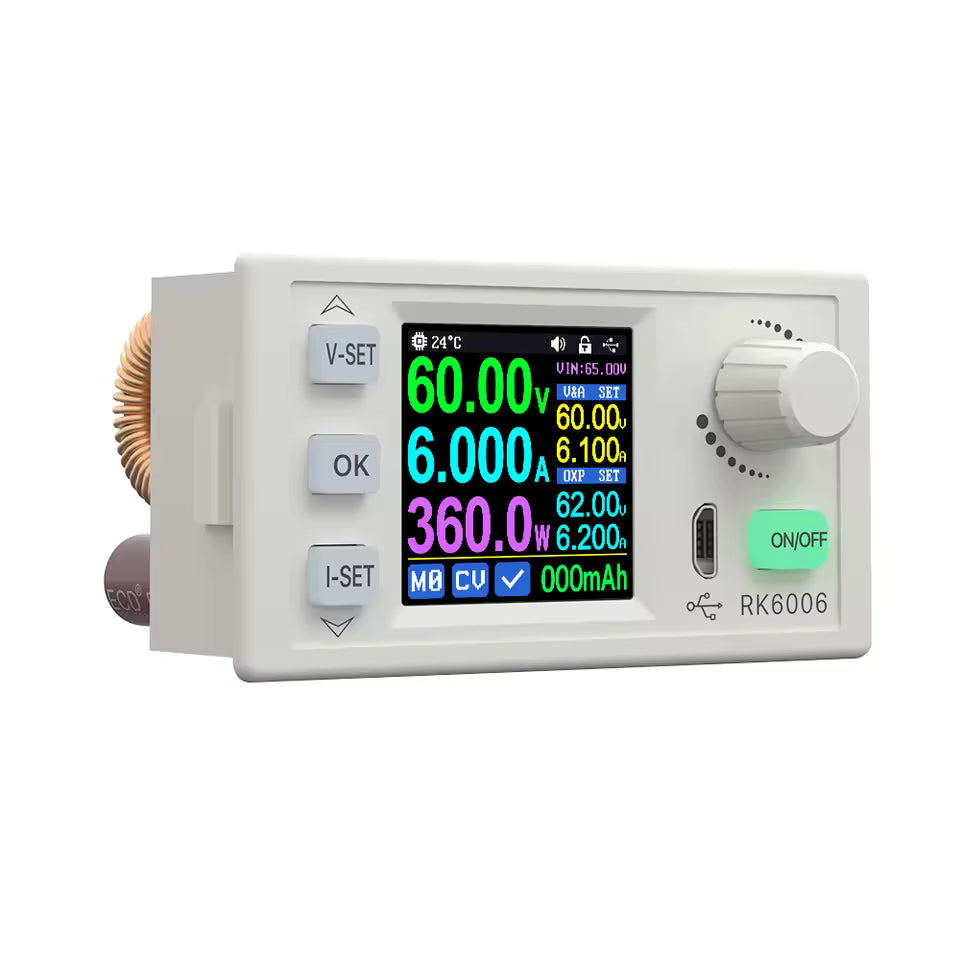

RK6006 RK6006-BT 60V 6A 4 Digit Communication Adjustable DC to DC Step Down Voltage Bench Power Supply Buck Converter

Description Model: RK6006/RK6006-BT (optional) Input voltage range: 12-68.00V Output voltage range: 0-60.00V Output current range: 0-6.000A Output power range: 0-360W Input voltage measurement resolution: 0.01V Output voltage setting measurement resolution: 0.01V Output current setting measurement resolution: 0.001A Input voltage measurement accuracy: ±(1%+5 digits) Output voltage accuracy between setting and measurement: ±(0.3%+3 digits) Output current accuracy between setting and measurement:±(0.5%+5 digits) Output ripple typical:100mV VPP① Working temperature range: -10℃~40℃ External sensor Temperature detection range:-10℃~100℃/0℉~200℉ External sensor Temperature detection accuracy:±3℃/±6℉ Constant voltage mode response time: 2ms（0.1A-5A Load） Constant voltage mode load regulation: ±(0.1%+2 digits) Constant current mode load regulation: ±(0.1%+3 digits) Capacity measurement range: 0-9999.99Ah Energy measurement range: 0-9999.99Wh Capacity and energy statistical error: ±2％ Buck working mode: （input voltage÷1.1）-1② Over temperature protection: System temperature>90℃ Screen brightness setting: 0-5(6 level in total) Screen: 1.54 inch 240*240 color HD display Cooling fan start condition：Output current>5A or System temperature>65℃ Cooling fan shut down condition：Output current<4.9A and System temperature<60℃ Weight(with package):About 0.15kg Product dimension: 79*43*54mm Support USB communication: yes Support Bluetooth communication: Only RK6006-BT supports ①:Ripple measurement method: noise and ripple are measured at X1 range, AC coupling, 20MHz of bandwidth on your oscilloscope with a 0.1uF parallel capacitor at the output terminals ②for example: input voltage is 24V，the max output voltage is 20.8V
