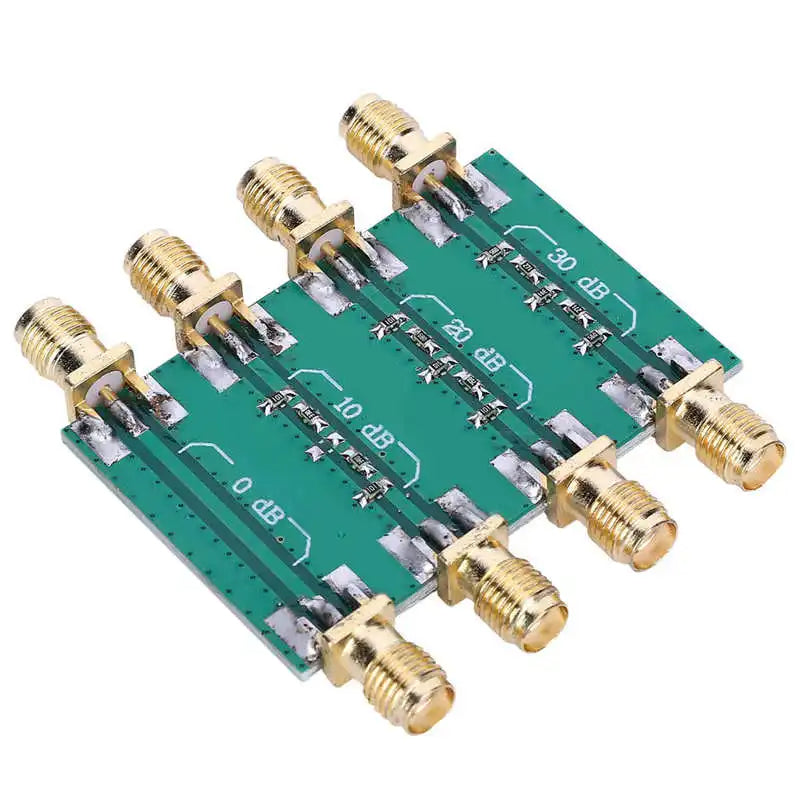

RF Fixed Attenuator SMA Double Female Head Radio Frequency Fixed Attenuator Module Board DC-4.0GHz

Specification:
Item Type: RF Fixed Attenuator
Working Frequency: DC --- 4.0GHz
Maximum Power: 23dBm (200mW)
Standing Ratio: ≤1.20
System Impedance: 50Ω
RF interface: SMA double female head (outer screw inner hole)
Attenuation:
Direct: 0dB (reference)
Level 1: 10 ± 0.8 dB
Level 2: 20 ± 1.1 dB
Level 3: 30 ± 1.5dB

Features:
1. Made of high quality material, good performance, damage resistant, long service time.
2. Fine workmanship and good performance, simple operation and easy to use.
3. Professional RF fixed attenuator with SMA double female head, easy to install.
4. With good contact and high durability, maximum power of 23dBm (200mW).
5. Perfect RF fixed attenuator replacement, frequency range of DC - 4.0GHz and system impedance of 50Ω.

Package List:
1x RF Fixed Attenuator (DC--4.0GHz)
