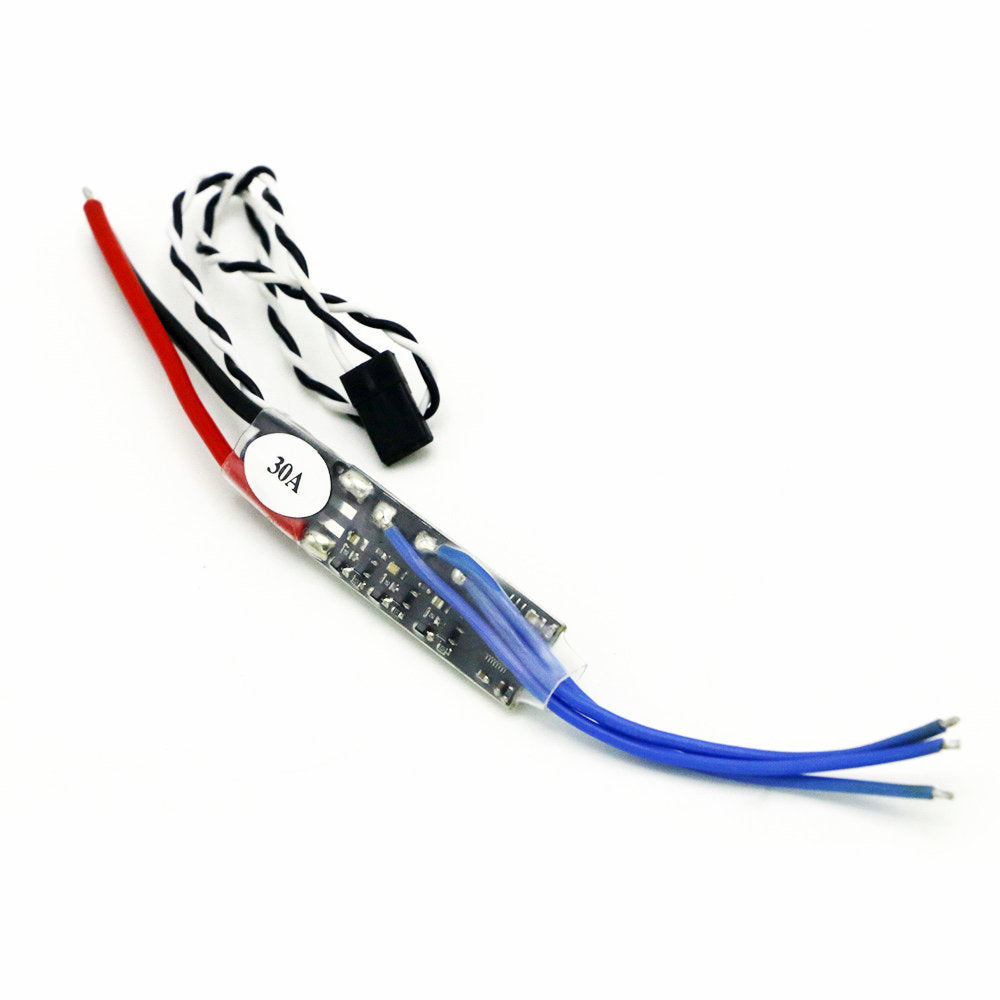

2-4S 30A Strip-shaped Brushless ESC Support SimonK / BLHeli-S for RC FPV Racing Drones

Specification:
Product Name: Strip-shaped Brushless ESC
PCB Dimensions: 50mm x 13mm (60mm x 13mm including main capacitor)
Weight: 23g
Operating Voltage: 2-4S LiPo
Response: 20-500Hz
Firmware: SimonK / BLHeli-S
Operating Current: 30A
Max Current: 40A
BEC: No

Feature:
1. This hardware, combined with SimonK or BLHeli-S firmware, offers the perfect solution for multi-rotor aircraft;
2. Highly efficient 100% N-FET design;
3. Crystal oscillator ensures maximum precision (PWM operating range is unaffected by temperature fluctuations, unlike cheaper ESCs);
4. Ultra-high refresh rate; unbuffered input signal with a response speed exceeding 490Hz;
5. 16kHz motor frequency ensures rapid motor response and quiet operation;
6. Super simple setup; no programming required other than throttle range calibration;
7. Suitable for RC helicopters and quadcopters.

Package Included:
1 x 30A Brushless ESC
