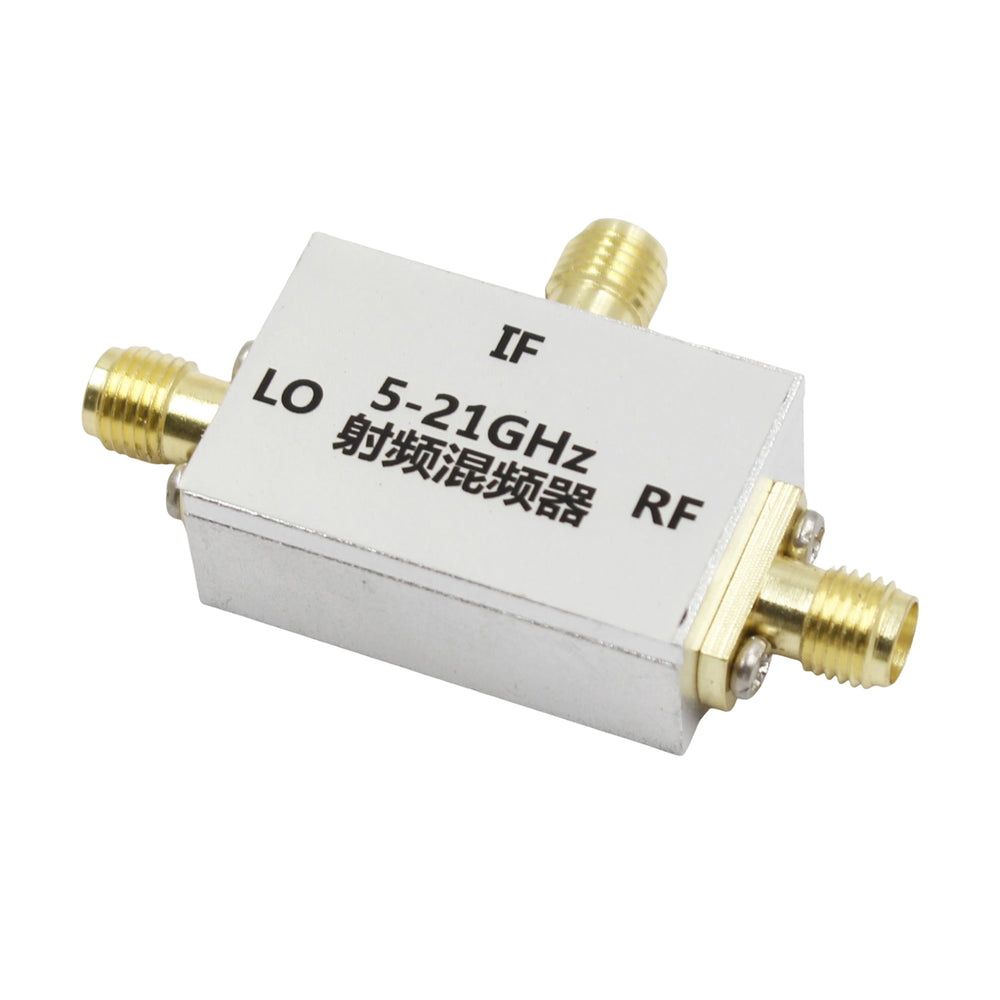

QM-MIX0521S RF Up/Down Converter Mixer Module 5-21GHz RF/LO DC-5000MHz IF 8-12dB Loss 29dB Isolation +15dBm LO SMA-K CNC Shielded Housing C/X/Ku Band - Silver
$59.79
In Stock
Description
Specifications:
Model: QM-MIX0521S
RF/LO frequency range: 5-21 GHz
IF frequency range: DC-5000 MHz
Conversion loss: 8-12 dB
Isolation (LO-RF): 29 dB typical
LO drive: +15 dBm
Interfaces: SMA-K
Housing: CNC structure with electromagnetic shielding
PCB: High-frequency, low insertion loss
Dimensions: 29 x 19 x 11 mm (excluding connectors)
Ports: RF input (RF), LO input (LO), IF output (IF)
Note: Ensure LO drive power does not exceed +15 dBm
Features:
1. Wideband 5-21 GHz RF/LO and DC-5000 MHz IF, covering C/X/Ku bands.
2. Supports upconversion and downconversion at 5.8G, 8G, 12G, 18G.
3. Low conversion loss of 8-12 dB.
4. CNC shielded enclosure and high-frequency low insertion loss PCB; SMA-K connectors.
5. Compact 29 x 19 x 11 mm; LO-RF isolation 29 dB typical; LO drive +15 dBm.
Package included:
1 x QM-MIX0521S Mixer Module
